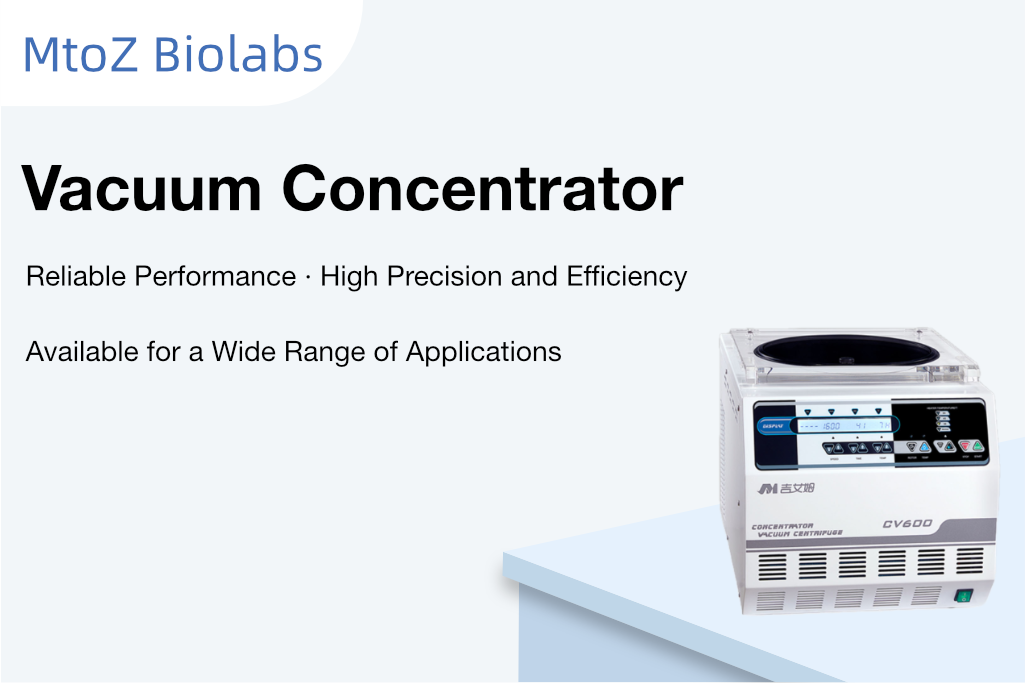

MtoZ Biolabs provides a Vacuum Concentrator that enables rapid solvent removal from samples based on the principle of reduced-pressure evaporation, offering efficient and gentle concentration performance to ensure the stability of heat-sensitive components.
Product Features
1. Composed of a centrifugation chamber, vacuum system, vacuum pump, and cold trap modules, with a clearly defined structure.
2. Equipped with microcomputer control and an LCD panel, allowing the setting and display of parameters such as rotation speed, temperature, and time.
3. Features vacuum delay control, enabling vacuum application only after the rotation speed reaches the preset value.
4. Supports multiple rotor types and sample tube formats for parallel processing of batch samples.
5. The chamber is commonly made of stainless steel with corrosion-resistant surface treatment, suitable for routine solvent environments.
Product Specifications
|
Vacuum Concentrator |
|||
|
Speed range |
300~1800 rpm |
Ultimate vacuum |
≤ 30Pa |
|
Maximum centrifugal force |
430 ×g |
Standard cold trap temperature |
-60℃/-80℃ |
|
Temperature control range |
-10~+80 ℃ |
Centrifugal imaging function |
Supported |
|
Temperature control accuracy |
±1 ℃ |
Noise |
≤ 60 dB（A） |
|
Timer range |
0-9999 min |
Total power |
1200W |
|
Vacuum control range |
0.1~100 mbar |
|
|
Product Advantages
1. High concentration efficiency: The combined action of vacuum and centrifugation accelerates solvent removal, reducing processing time.
2. Gentle sample protection: Operates under low-temperature and low-oxygen conditions, helping to minimize thermal degradation and oxidation risks.
3. Good reproducibility: With controllable parameters and stable operation, it is suitable for experiments requiring consistent results.
4. Strong batch processing capability: Capable of processing multiple samples simultaneously, enhancing overall experimental throughput.
5. Convenient operation and maintenance: The simplified workflow results in lower daily usage and cleaning maintenance costs.
