Home > Support > Resources > Targeted Proteomics Workflows for Biomarker and Pathway Quantitation

Targeted proteomics workflows for biomarker and pathway quantitation start when the protein list is already closed. Multiple reaction monitoring (MRM) and parallel reaction monitoring (PRM) schedule proteotypic peptides on liquid chromatography-tandem mass spectrometry (LC-MS/MS) and remeasure that panel across a cohort (Lange et al. 2008; Peterson et al. 2012). The operational question is how to move from peptide selection through assay build, matched preparation, acquisition, and quality control (QC) without treating discovery profiling as a substitute for panel lock.

Biomarker programs usually need reproducible remeasurement of a short candidate list in plasma or related matrices. Pathway programs usually need the same panel version across treatment arms or time points after matched digestion. Relative peak ratios answer fold-change under a declared normalization rule. Absolute amount needs stable isotope-labeled internal standard (SIS) peptides or Absolute QUAntification (AQUA) design plus a calibration model (Gerber et al. 2003; Carr et al. 2014). Surrogate peptides report the measured sequence. They do not invent every isoform or modified form by default (Bantscheff et al. 2012).

In MtoZ Biolabs targeted offerings, biomarker and pathway workflows are scoped when the closed panel, matrix notes, claim unit, and QC plan are written in the brief. Service intake appears in Targeted Proteomics Service.

What the Biomarker and Pathway Workflow Covers

Four operational layers belong in the brief and stay separated.

Panel layer converts named proteins into proteotypic peptides with priority tiers and a frozen list version before cohort acquisition.

Assay layer builds MRM transitions or PRM isolation and fragment rules on matrix-matched material, not only on neat standards.

Prep layer locks digestion, cleanup, load, and spike timing so every contrast arm follows the same record.

Reporting layer integrates peaks, applies normalization or calibration, flags failed targets, and archives method version with the table.

The workflow measures a locked panel under matched prep. An open proteome list is not an operable targeted method.

How Biomarker Cohorts and Pathway Panels Differ in Operation

Both use the same targeted spine. Study design changes where pressure appears.

Biomarker cohort work often stresses matrix interference, retention scheduling across many injections, and long-term QC drift. Plasma and related fluids commonly need a matrix pilot before transitions or fragments are locked (Carr et al. 2014). Pathway panels often stress matched prep across treated and control arms, time-course batching, and keeping the same peptide version when pharmacology questions change mid study.

MRM fits stable scheduled transitions when unit-resolution ratios hold in matrix. PRM fits peptides that need high-resolution fragment review after precursor isolation (Peterson et al. 2012). Hybrid panels keep stable targets on MRM and interference-limited targets on PRM. Absolute claims add SIS sourcing and calibrators on top of either acquisition mode (Gerber et al. 2003).

Discovery nominates candidates. Targeted operation begins only after names and peptides are versioned. Route timing appears in Targeted Mass Spectrometry or Discovery LC-MS/MS? Matching MRM, PRM, and Profiling Routes to Your Analytical Goal. Platform choice detail appears in Parallel Reaction Monitoring vs MRM: Which Fits?. Quote-stage panel and deliverable lock appears in Scoping a Targeted Mass Spectrometry Project: Analyte Panel, Platform, and Validation Deliverables.

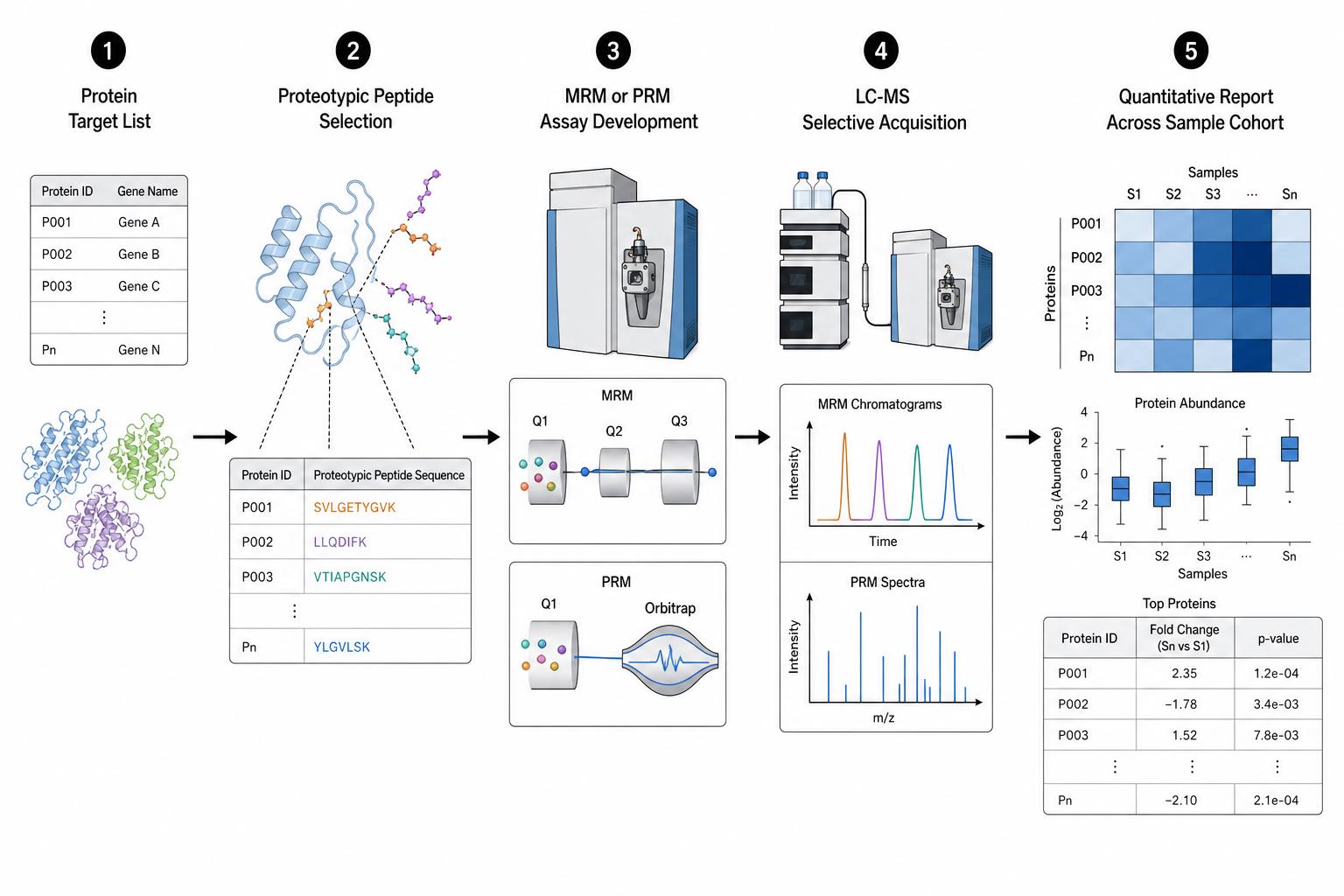

End-to-End Targeted Workflow for Biomarker and Pathway Panels

A practical operations spine usually runs as follows.

  1. Freeze the study decision: biomarker remeasurement, pathway contrast, or absolute amount on named peptides.
  2. Translate proteins into proteotypic peptides; assign priority tiers and a panel version ID.
  3. Document matrix, pretreatment parity, storage, and expected study plus QC injection count.
  4. Declare relative normalization or SIS/AQUA absolute rules and spike timing relative to digest.
  5. Build MRM transitions or PRM fragment rules on matrix-matched digests for tier-one targets.
  6. Pilot load, retention windows, and cycle time; revise weak peptides before full cohort shipment.
  7. Lock one prep method and one acquisition method for the cohort block.
  8. Acquire interleaved study samples with blanks, QC pools, and calibrators when absolute units are required.
  9. Integrate peaks, apply inclusion rules, flag failed targets, and deliver tables with method and QC notes.

Steps 1 through 4 protect the decision and panel record. Steps 5 through 9 are the assay, acquisition, and reporting record. PRM service context appears in Parallel Reaction Monitoring (PRM) Service. MRM/SRM service context appears in SRM-MRM Quantitative Proteomics Services. Absolute reporting intake appears in Absolute Quantitative Analysis (AQUA) Service.

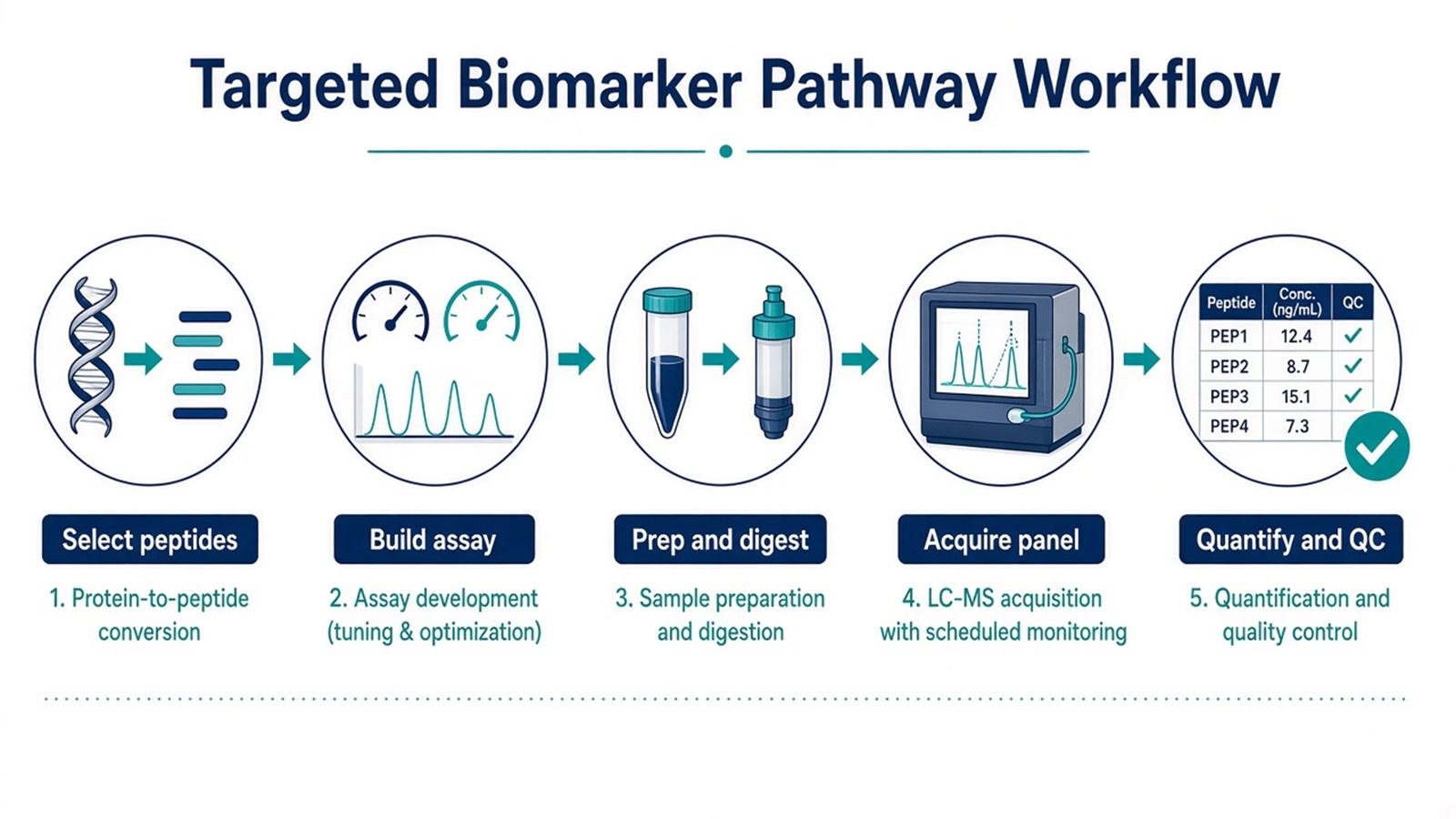

Targeted biomarker and pathway workflow from peptide selection and assay build through matched prep, scheduled LC-MS acquisition, and QC-supported quantitation

Figure 1. Biomarker and pathway targeted workflows share one operations spine; panel version and matched prep must be locked before cohort acquisition.

Parameters That Must Be Locked During Operations

Layer

Parameter that must be declared

Failure mode if ignored

Decision

Biomarker remeasurement, pathway contrast, or amount

Wrong QC depth and claim unit

Panel version

Peptide list ID and priority tiers

Mid-cohort panel growth

Peptide rules

Uniqueness, missed cleavage, detectability

Surrogate that does not represent the protein

Matrix

Type, storage, freeze-thaw history

Suppression read as biology

Prep parity

Digest, cleanup, load on every arm

Treatment artifacts from unmatched prep

Platform

MRM, PRM, or hybrid rationale

Weak transitions forced through one mode

Cycle time

Retention windows and dwell schedule

Dropped targets on dense panels

SIS or AQUA

Spike step and assigned amount

Amount claim without calibration design

QC plan

Blanks, pools, precision, drift checks

Batch effect read as pathway change

Deliverable

Table, method notes, failed-target flags

Numeric file without operations context

Limits follow the same table. Targeted acquisition does not invent missing proteins. A larger panel does not replace a matrix pilot. Matched peak areas do not certify a clinical biomarker cutoff. Pathway language remains optional after inclusion rules pass.

What Biomarker and Pathway Targeted Results Can Support

A locked relative panel supports same-peptide comparison across samples acquired with one method version. A locked absolute panel supports concentration or amount for surrogates inside the calibrated interval when SIS design and QC recovery are documented.

Biomarker candidate remeasurement supports cohort ranking under declared inclusion rules. Pathway panels support treatment or time-course contrasts when prep and panel version stay matched. Failed targets support exclusion or redesign. They do not support silent zeros in group means. Cross-study comparison needs matching normalization or calibration assumptions.

A targeted workflow supports remeasurement of a closed panel. It does not replace discovery when the protein list is still open.

How to Choose the Operating Path for Your Panel

Use list status, matrix risk, claim unit, and study design together.

Project signal

Operating path that often fits

Recheck before committing

Closed biomarker shortlist in plasma

Matrix pilot, then MRM or PRM lock

Ship full cohort before pilot

Fixed pathway nodes across treatments

Matched prep and frozen panel version

Change digest mid time course

Absolute amount required

SIS or AQUA design plus calibrators

Relative-only method for concentration

Some peptides unstable in MRM

Hybrid MRM plus PRM subset

Force entire panel onto weak transitions

List still open after discovery

Keep discovery until shortlist is named

Targeted quote on unnamed proteins

Long cohort with batch risk

Interleaved QC and method archive

Interpret without QC pools

Stakeholder needs method notes

Deliverables locked before acquisition

Rebuild documentation after the run

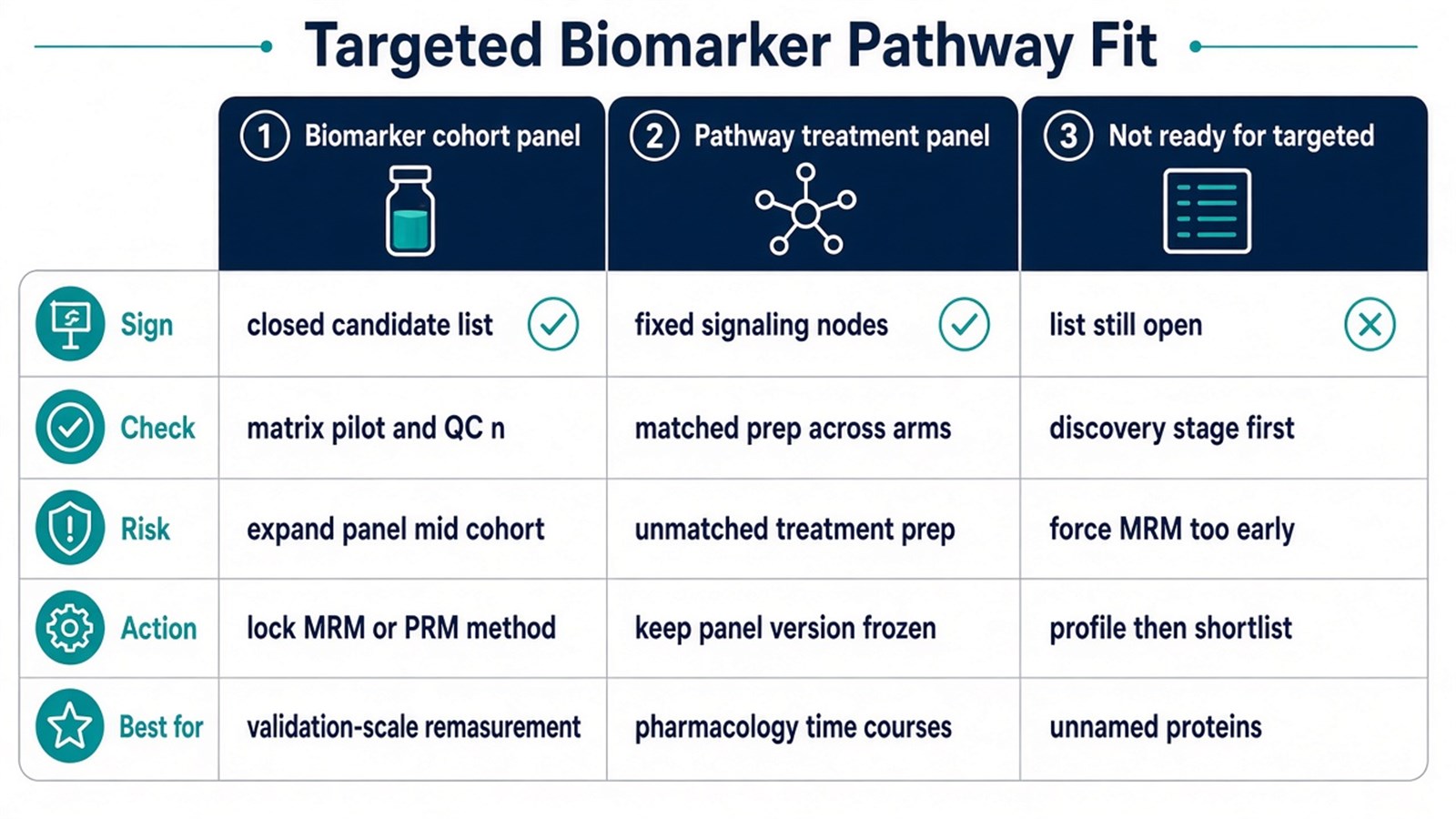

Choosing biomarker versus pathway targeted operations by closed-list status, matrix pilot need, matched prep, and MRM or PRM fit

Figure 2. Choose the operating path from panel status and matrix risk; keep discovery first when candidates are still unnamed.

Post-delivery interpretation belongs on Reading Targeted Mass Spectrometry Results with Confidence. Teams with closed peptide tiers, matrix notes, and QC plans can review MtoZ Biolabs Targeted Proteomics Service when those fields are declared in the project record.

Frequently Asked Questions

1. How does a biomarker targeted workflow differ from discovery profiling?

Discovery surveys an open or semi-open proteome to nominate candidates. A biomarker targeted workflow remeasures a closed peptide panel with selective acquisition and a declared QC plan.

2. Can the same workflow serve pathway panels?

Yes. Pathway panels use the same peptide selection, assay build, matched prep, acquisition, and reporting spine. The critical extra lock is prep parity across treatment or time-course arms.

3. When should PRM be used instead of MRM in these workflows?

When matrix-matched pilots show unstable transition ratios, when fragment-level confirmation is required for acceptance, or when a hybrid design keeps stable targets on MRM.

4. What must be locked before cohort acquisition?

Panel version, prep method, acquisition mode, claim unit, QC plan, and deliverable list. Changing those mid cohort splits the operations record.

5. Does targeted proteomics replace label-free discovery?

No. Discovery identifies candidates. Targeted workflows validate and quantify predefined peptides at cohort scale after the list is closed.

MtoZ Biolabs can provide targeted proteomics analysis using MRM, PRM, and isotope-assisted absolute quantification for biomarker and pathway panels, including assay development and QC-supported reporting when panel design and study goals are documented.

If further evaluation of peptide selection, matrix pilots, or MRM versus PRM operating design is needed, project details can be submitted for a feasibility review.

Reference

  1. V. Lange, P. Picotti, B. Domon, R. Aebersold (2008). Selected reaction monitoring for quantitative proteomics: a tutorial. Mol. Syst. Biol., 4, 222. https://doi.org/10.1038/msb.2008.61
  2. A.C. Peterson, J.D. Russell, A.A. Klammer, P.F. Doubleday, H. Liu, J.N. Anderson, M.J. MacCoss (2012). Parallel reaction monitoring for high resolution and high mass accuracy quantitative, targeted proteomics. Mol. Cell. Proteomics, 11, 1475-1488. https://doi.org/10.1074/mcp.O112.020271
  3. S.A. Gerber, J. Rush, O. Stemman, M.W. Kirschner, S.P. Gygi (2003). Absolute quantification of proteins and phosphoproteins from cell lysates by tandem MS. Proc. Natl. Acad. Sci. U.S.A., 100, 6940-6945. https://doi.org/10.1073/pnas.0832254100
  4. S.A. Carr, S.E. Abbatiello, B.L. Ackermann, C. Borchers, B. Domon, E.W. Deutsch, R.P. Grant, A.N. Hoofnagle, R. Huttenhain, J.M. Koomen, D.C. Liebler, T. Liu, B. MacLean, D.R. Mani, E. Mansfield, H. Neubert, A.G. Paulovich, L. Reiter, O. Vitek, R. Aebersold, A.J. Smith, et al. (2014). Targeted peptide measurements in biology and medicine: best practices for sample preparation, assay standardization, and assay validation. Mol. Cell. Proteomics, 13, 907-917. https://doi.org/10.1074/mcp.M113.036095
  5. M. Bantscheff, S. Lemeer, H.U. Haab, B. Kuster (2012). Quantitative mass spectrometry in proteomics: a critical review. Anal. Bioanal. Chem., 404, 939-965. https://doi.org/10.1007/s00216-012-5892-4
