Targeted Mass Spectrometry Assay Failing? Troubleshooting Transitions, Cycle Time, and Matrix Interference

Introduction

A targeted mass spectrometry method can be fully configured yet still fail to produce usable quantitative data. Transitions may show weak or missing peaks. Scheduled acquisition windows may miss targets because of retention drift. Only part of a transition pair or fragment set may appear consistently. For biomarker validation, pathway panels, or biopharmaceutical monitoring, poor targeted MS performance creates immediate delay even when discovery data suggested the analytes were detectable.

Weak targeted mass spectrometry performance usually reflects method design or matrix limits rather than instrument failure alone. Unstable transitions, insufficient dwell time, co-eluting interference, retention scheduling errors, or oversized panels can all reduce quantitation quality before meaningful reporting begins. Re-running the same acquisition without reviewing transitions or matrix behavior often reproduces the same poor result.

Teams troubleshooting a failed targeted MS assay or preparing a difficult matrix for selective quantitation can request feasibility review before resubmitting material. MtoZ Biolabs can Assess targeted mass spectrometry assay readiness and recommend the most efficient recovery path.

Related Services

• Targeted Mass Spectrometry Service

• Targeted Proteomics Service

• MRM/PRM Quantitative Proteomics Service

• Multi Reaction Monitoring MRM Service

• Parallel Reaction Monitoring (PRM) Service

• LC-MS/MS MRM Analysis Service

Common Signs of a Failed Targeted MS Assay

Researchers often seek help after observing one or more of the following patterns:

• target transitions or fragments are weak or absent in study samples but visible in standards

• replicate peak areas vary widely despite consistent sample prep

• only one transition or fragment in a multi-ion pattern is detected reliably

• scheduled acquisition misses targets because retention time shifts between runs

• discovery data suggested detectability, but targeted quantitation remains unreliable in matrix

• panel size appears to reduce sensitivity for all targets simultaneously

These outcomes are common with unstable transition choice, cycle time limits, strong suppression in plasma or tissue, and assay parameters copied from literature without local matrix testing.

Why Targeted Mass Spectrometry Assays Fail

Before resubmitting samples or expanding the panel, review the most frequent causes.

1. Unstable or Suboptimal Transitions

Poor precursor selection, weak product ions, or interference-prone pairs reduce MRM performance.

2. Cycle Time and Dwell Time Limits

Too many targets reduce the time spent on each analyte and lower sensitivity.

3. Matrix Interference

Co-eluting compounds can suppress ionization or mimic part of the expected signal pattern.

4. Retention Scheduling Errors

Drift or poor LC separation causes targets to fall outside scheduled windows.

5. Inadequate Sample Prep

Salts, lipids, detergents, or digestion variability change analyte yield across samples.

6. Wrong Platform for the Matrix

Stable MRM may suffice in some cases, while interference-limited targets may require PRM.

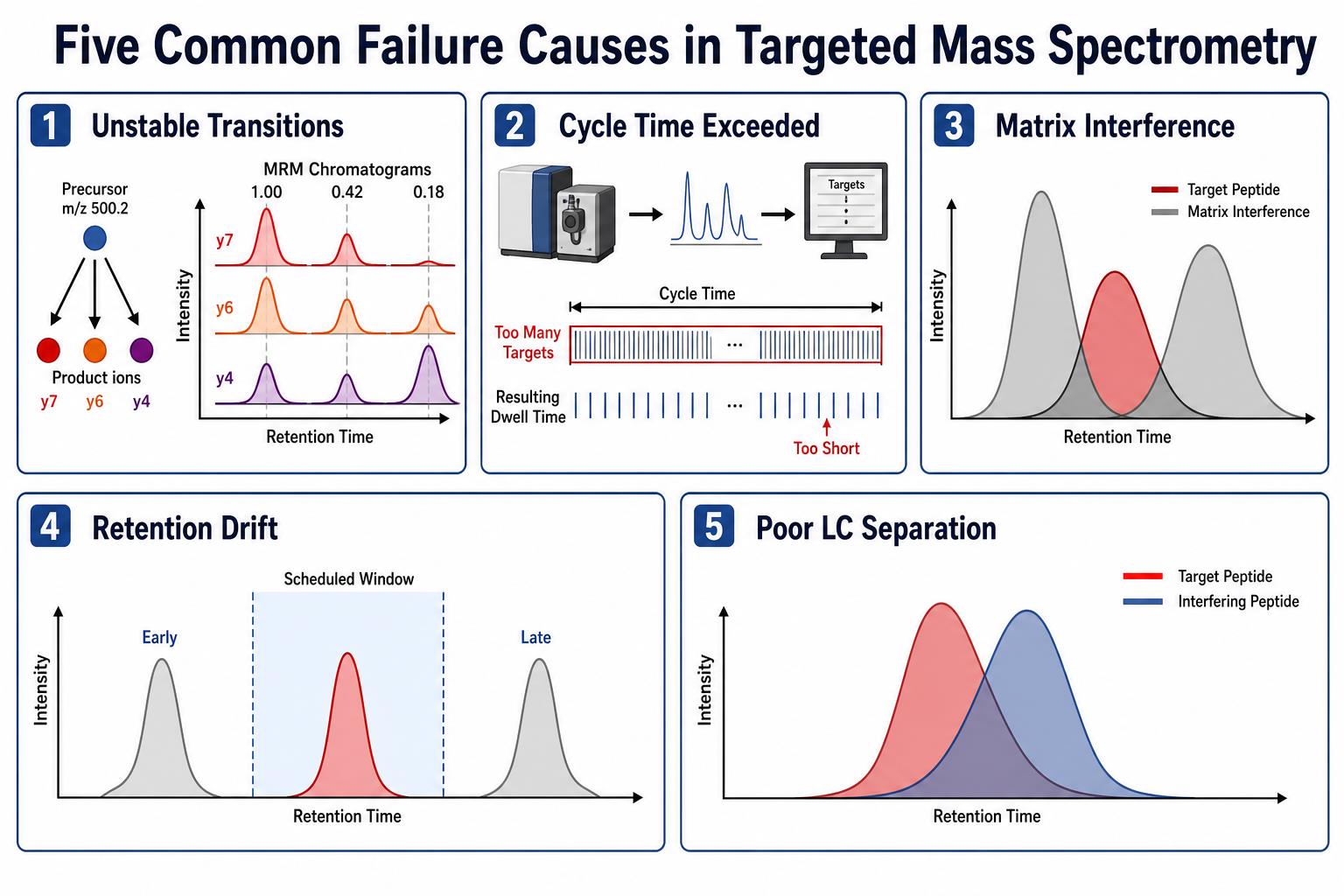

Figure 1. Weak targeted mass spectrometry performance often reflects transition choice, cycle scheduling, or matrix interference rather than instrument malfunction alone.

Step-by-Step Recovery Guide

When targeted mass spectrometry performance fails, use a structured review rather than repeating the same acquisition.

Step 1: Re-evaluate Transition or Fragment Selection

Confirm that monitored ions are stable, specific, and detectable in the study matrix on standards before cohort analysis.

Step 2: Review Cycle Time and Retention Scheduling

Inspect whether the panel exceeds cycle capacity or whether retention drift is causing missed scheduled acquisitions.

Step 3: Test Matrix Effects on Standards and Spikes

Compare response in matrix-matched blanks, spikes, and neat standards to identify suppression or recovery issues.

Step 4: Check LC Method and Separation Quality

Evaluate whether co-elution or gradient performance is limiting specificity even under selective acquisition.

Step 5: Reduce Panel Priority or Change Platform

If interference persists on MRM, consider Parallel Reaction Monitoring (PRM) Service for affected analytes rather than forcing the full panel through the same route.

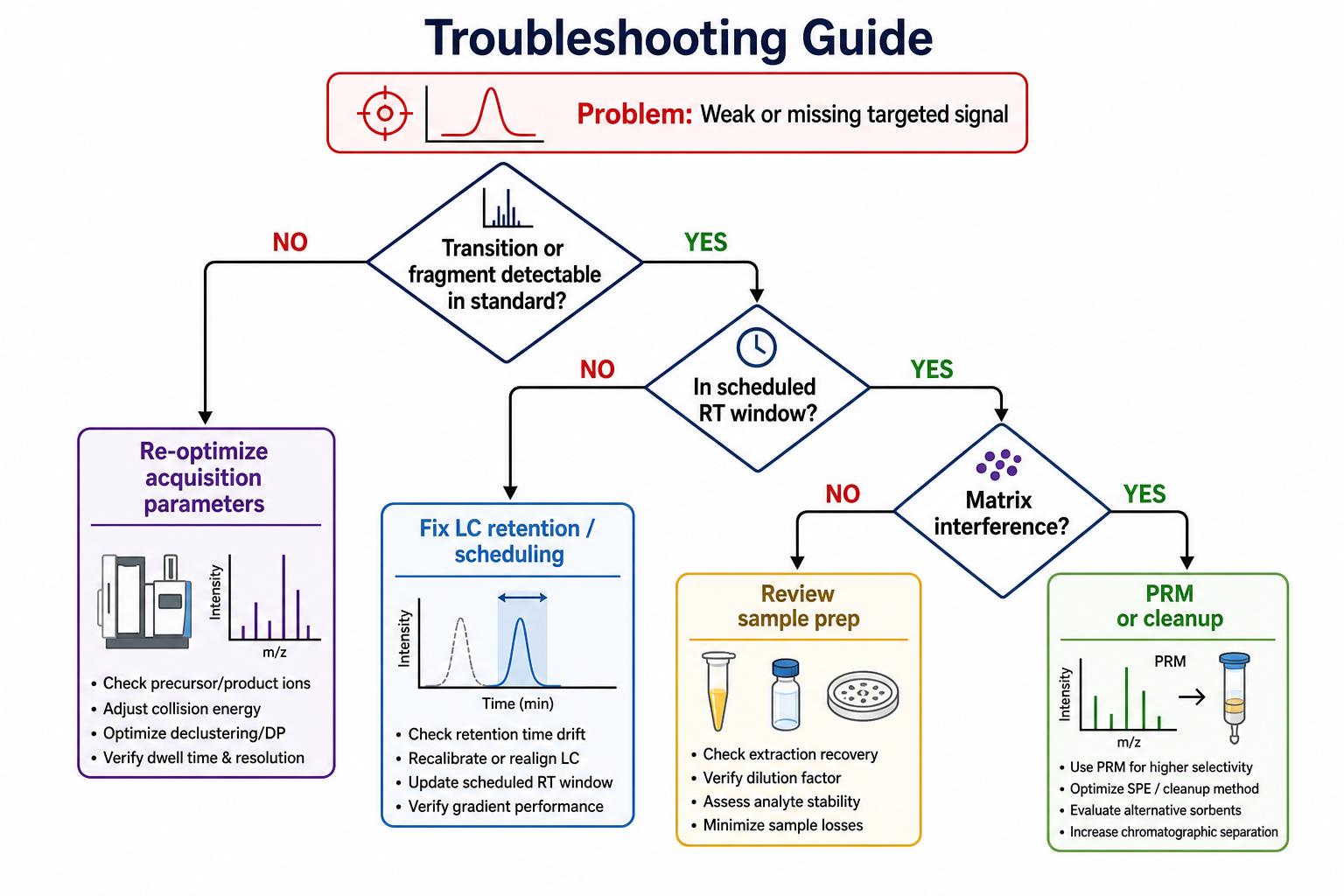

Figure 2. Transition review, retention scheduling, and matrix testing are the highest-leverage fixes for failed targeted mass spectrometry assays.

Implement one change at a time and re-run QC samples after each modification. Changing transitions, LC method, and platform simultaneously makes root-cause analysis difficult.

Design Checklist Before Re-Running the Cohort

Use this checklist during assay recovery or initial method lock-in.

Check Item	Pass Criteria
Transitions or fragments stable in matrix pilot	Consistent signal and acceptable replicate CV
Cycle time supports full priority panel	No missed scheduled targets in QC runs
Retention times stable across batches	Targets remain inside acquisition windows
Matrix spike recovery acceptable	Within predefined acceptance limits
Sample prep reproducible	Acceptable digestion or extraction consistency
Platform choice documented	MRM or PRM rationale recorded for matrix

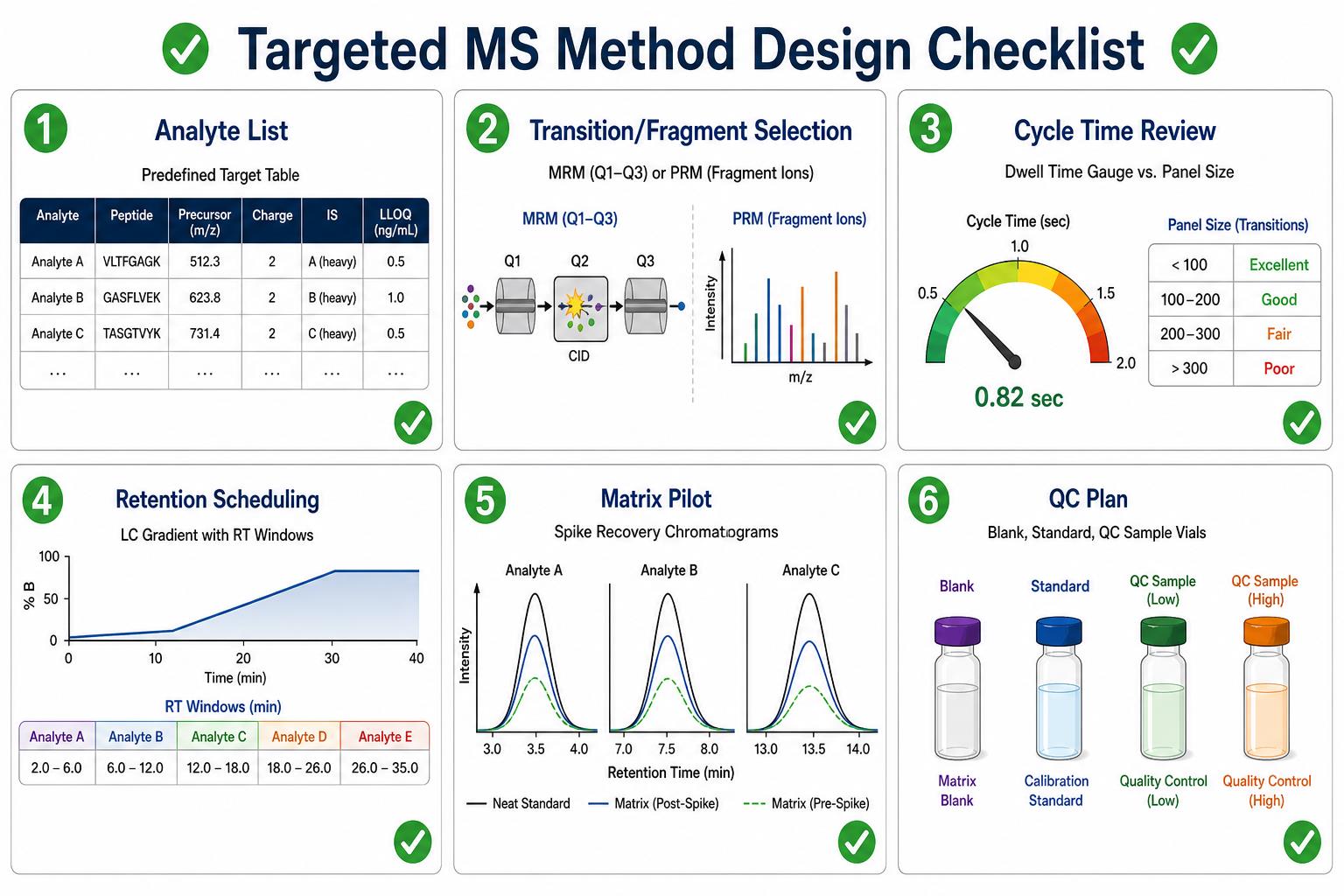

Figure 3. Transition selection, cycle time review, retention scheduling, and matrix pilot data are central to targeted mass spectrometry assay success.

Expected Results After Recovery

A successful recovery should deliver more than partially integrated peaks. Expected outputs may include:

• revised transition or fragment list with acquisition parameters

• quantified analyte tables with improved replicate precision

• matrix interference notes and acceptance criteria

• recommendation for MRM, PRM, or panel reduction based on pilot data

Recovery options depend on project goal:

• Re-optimize transitions or fragments when acquisition response was the primary barrier

• Revise LC scheduling or panel size when cycle time limited sensitivity

• Improve sample prep or cleanup when matrix suppression drove variability

• Move selected analytes to PRM when MRM interference persisted

Tier-one analytes required for the primary decision should receive full matrix pilot testing before the remaining panel is expanded.

Key Cautions

Do not assume discovery detectability guarantees targeted mass spectrometry success in matrix.

Do not expand panel size without reviewing cycle time impact on dwell time.

Do not rely on a single transition or fragment when specificity is critical.

Do not copy assay parameters from publications without verifying retention time and matrix behavior locally.

Share raw chromatograms and transition ratio tables when requesting support. Visual review often shows whether the issue is scheduling, interference, or true absence of analyte in matrix.

A practical recovery milestone is a matrix pilot with six to ten representative samples before the full cohort is rerun. If response and replicate precision improve in that pilot, the same targeted method can usually be scaled with greater confidence.

Practical Recovery Examples

1. Plasma Biomarker Panel with Missed Scheduled Targets

Rebuild retention scheduling and reduce panel size before rerunning the cohort.

2. Biopharmaceutical Peptide Monitor with Unstable Transition Ratios

Test alternate product ions and confirm LC separation before changing sample prep alone.

3. Large Pathway Panel with Global Sensitivity Loss

Prioritize tier-one targets and stage lower-priority analytes in a follow-on method.

4. MRM Interference in Tissue Matrix

Move interference-limited analytes to PRM while keeping stable targets on MRM within the same program.

Frequently Asked Questions

1. Should I rerun the same targeted method without changes?

Only after reviewing transitions, scheduling, and matrix effects. Repeating the same assay on a suppressed matrix rarely helps.

2. Can a failed MRM assay be fixed with PRM?

Sometimes. PRM is often selected when interference, not absolute detectability, is the primary issue.

3. What if only part of the panel performs well?

Prioritize tier-one targets and stage lower-priority analytes in a follow-on method rather than forcing one oversized panel.

4. Can sample prep alone fix a weak targeted MS assay?

Often partially. Prep and transition selection both matter, and matrix pilot data helps separate the two.

5. How can resubmission delays be reduced?

Provide analyte list, matrix type, prior run data, and quantitation requirements during feasibility review before shipment.

Conclusion

Underperforming targeted mass spectrometry assays are often a solvable method design or matrix compatibility problem rather than a reason to abandon selective quantitation. By reviewing transitions, cycle scheduling, LC stability, and panel scope before resubmitting samples, teams can often obtain the quantitative data required for validation, QC, or pathway analysis.
