AQUA Peptides: Principles for Absolute Quantification
- Internal standard. A defined amount is spiked into each sample to normalize ionization differences between runs and matrices.
- Calibrator anchor. Known standard amounts across a concentration series define the quantitative response curve when external calibration is used.
- Post-digestion spike-in is common when the assay quantifies a defined proteotypic surrogate after consistent proteolysis.
- Pre-digestion spike-in may be used when whole-protein recovery or digestion efficiency must be tracked across samples.
- Matrix-matched calibrators improve accuracy when suppression or recovery effects differ between solvent and biological matrix.
- Clinical and translational biomarker measurement. Report candidate protein levels in plasma or serum with defined units.
- Biopharmaceutical product and impurity monitoring. Quantify product-related peptides against specification limits.
- Host cell protein quantitation. Measure residual HCP levels when ppm-level reporting is required.
- Pathway stoichiometry studies. Compare signaling proteins on an absolute scale across treatment conditions.
- Assay transfer and QC support. Maintain calibrated peptide pairs for repeated batch monitoring.
- concentration results in agreed units across samples
- standard and surrogate peptide documentation
- calibration curve data and fit summary
- heavy-light ratio and integration notes
- QC recovery and precision metrics
- comments on samples outside the validated range
Introduction
Many quantitative proteomics projects report fold change but not concentration. A biomarker team may need plasma protein levels in ng/mL. A biopharmaceutical group may need host cell protein amounts in ppm. A pharmacology study may need stoichiometric readouts that support modeling rather than relative abundance alone. Absolute quantification addresses that gap by converting peptide signal into defined units through calibrated measurement.
AQUA peptides are synthetic, stable isotope-labeled standards that represent target proteotypic sequences. In workflows based on Absolute QUAntification of peptides, the heavy standard is spiked into samples or digests and measured alongside the endogenous light peptide using selective LC-MS acquisition. The ratio between labeled and unlabeled signal anchors quantitation to known amounts and supports concentration reporting when calibration is designed correctly.
Understanding how labeled standards are selected, spiked, and paired with targeted acquisition helps teams decide whether concentration-level reporting is feasible for a given matrix and study goal before peptides are ordered.
Related Services
Absolute Quantitative Analysis (AQUA) Service
Peptide Absolute Quantification Service
MRM/PRM Quantitative Proteomics Service
Multi Reaction Monitoring MRM Service
Parallel Reaction Monitoring (PRM) Service
HCP Absolute Quantification Analysis Service
For projects where reporting units, calibrator design, or matrix feasibility are still undefined, MtoZ Biolabs can review concentration reporting requirements before synthetic standards are ordered or samples are submitted.
What AQUA Peptides Are
AQUA peptides are chemically synthesized peptides that incorporate stable isotopes, commonly 13C and 15N, at selected amino acid positions. The labeled sequence matches a proteotypic surrogate of the target protein so that the heavy peptide co-elutes with and fragments similarly to the endogenous light peptide after digestion.
The heavy standard serves two roles in calibrated quantitation:
Labeled standards are not a standalone instrument method. They are reagents used within targeted proteomics workflows, usually with triple-quadrupole or high-resolution targeted acquisition, to convert peak response into concentration when calibration and sample preparation are controlled.
Core Principles of AQUA-Based Quantitation
Stable Isotope Labeling
Labeling must preserve the chromatographic and fragmentation behavior of the target peptide while creating a measurable mass shift. Partial labeling at the C-terminus or at multiple residues is common so that precursor and product ions remain interpretable in targeted acquisition. Poor label placement can weaken fragment coverage or create standards that do not track the endogenous peptide reliably.
Isotope Dilution
Isotope dilution compares the signal from the endogenous light peptide with the signal from the spiked heavy standard. Because both analytes experience similar ionization and matrix effects during acquisition, their ratio is often more stable than absolute peak area alone. Concentration is derived from the known amount of heavy standard and the measured light-to-heavy ratio, subject to calibration model and digestion assumptions.
Spike-In Strategy
When the standard is introduced affects what the assay measures.
Spike-in design should be fixed before assay validation because changing the spike point can alter apparent recovery and calibration behavior.
Selective Acquisition and Integration
Labeled standards are measured with targeted LC-MS methods that monitor predefined transitions on a triple quadrupole or predefined precursors and fragment ions on a high-resolution platform. Integration focuses on paired light and heavy signals for the same surrogate peptide. Assay quality depends on transition or fragment selectivity, retention time stability, and consistent digestion across the cohort.
Link to Protein-Level Reporting
The assay reports peptide concentration, but the scientific question is often protein-level. Concentration reporting therefore depends on proteotypic peptide choice, digestion consistency, and defined reporting units such as ng/mL, fmol, or ppm. A precise measurement of a poor surrogate can still misrepresent the intended protein amount in matrix.

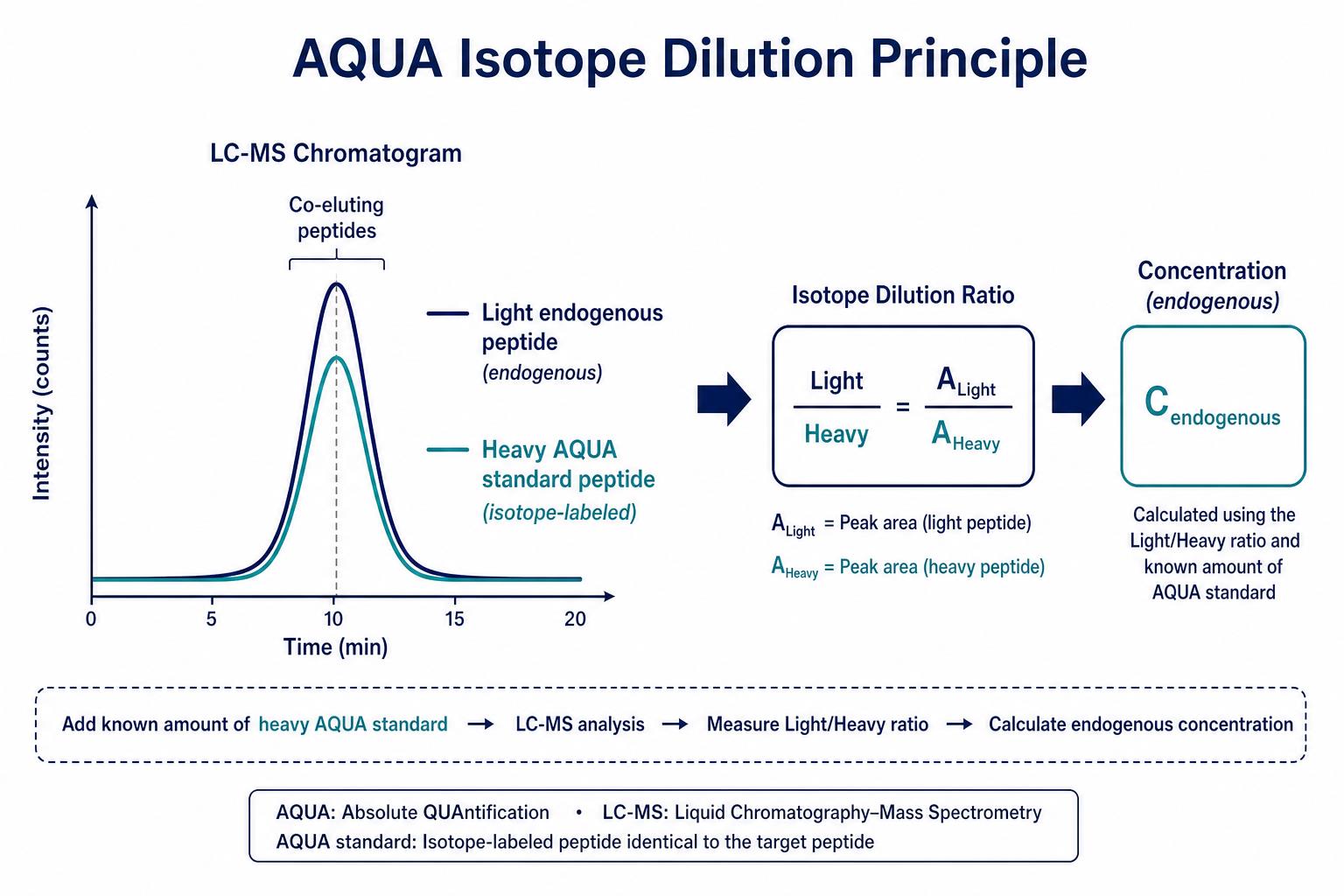

Figure 1. Heavy internal standards pair with endogenous light peptides for ratio-based concentration reporting
Standard Workflow Phases
Most AQUA-based projects follow a defined sequence. Each phase affects accuracy, precision, and report usability.
Phase 1: Target and surrogate peptide selection.
Define proteins to quantify and choose proteotypic peptides suitable for selective acquisition and stable isotope standard pairing.
Phase 2: Standard design and synthesis.
Specify label positions, purity requirements, and amount needed for calibration and sample spikes.
Phase 3: Calibration design.
Prepare matrix-matched calibrators across the expected concentration range with QC levels inside the validated interval.
Phase 4: Targeted assay development.
Optimize transitions or isolation windows and confirm heavy-light co-elution and ratio stability.
Phase 5: Sample preparation and spike-in.
Apply consistent digestion, cleanup, and standard introduction according to the chosen spike-in strategy.
Phase 6: Acquisition and concentration calculation.
Integrate paired signals, apply the calibration model, and report values in agreed units with QC review.
Sample type strongly affects feasibility. Plasma, tissue lysate, cell extract, and biopharmaceutical matrix each present different digestion, recovery, and interference challenges for stable isotope labeled peptides.

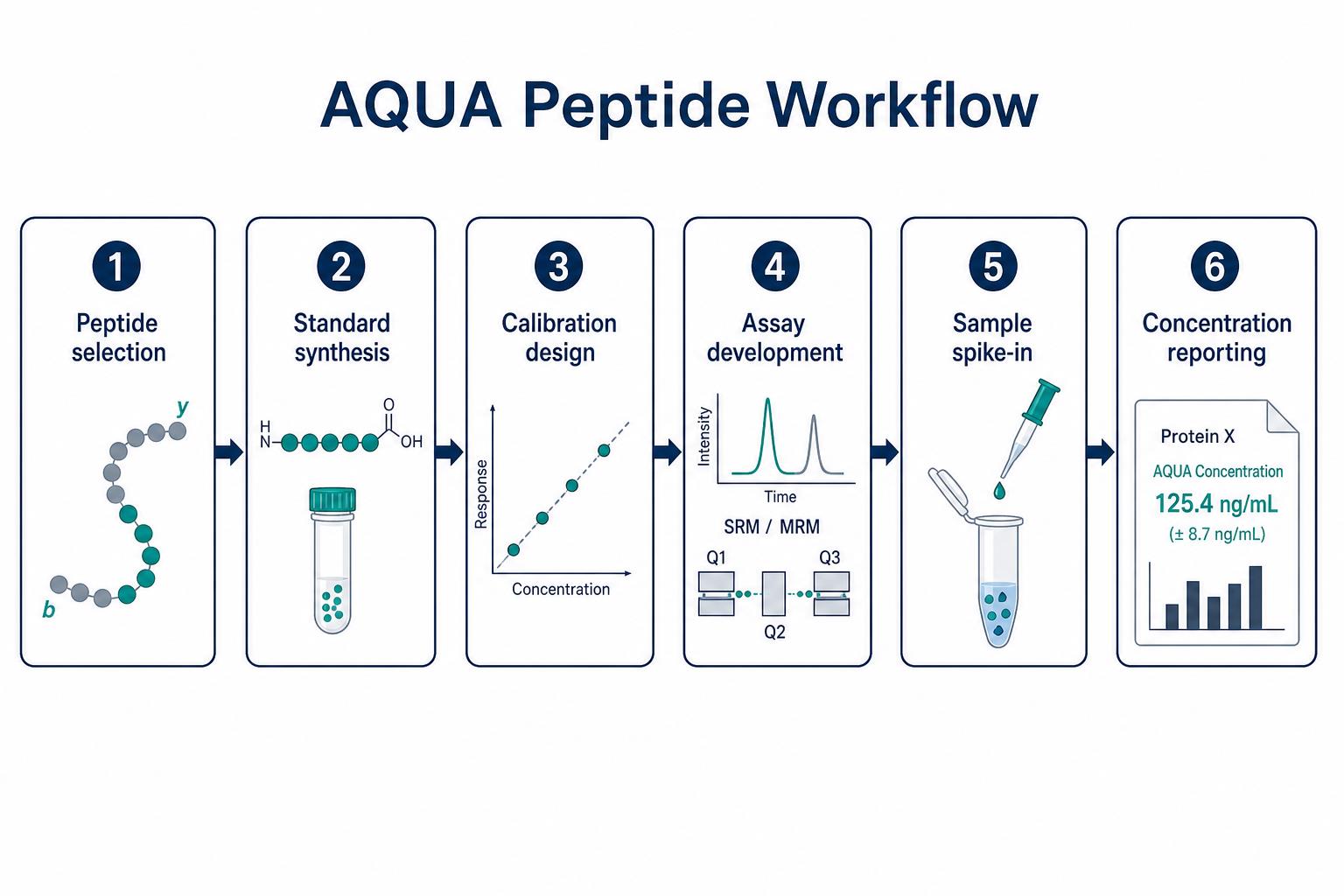

Figure 2. Calibrated quantitation moves from peptide standard design through calibration and targeted acquisition to concentration reporting
Calibrator and Sample Requirements
Reliable concentration reporting depends on calibrator design as much as instrument performance.
|
Requirement |
Recommended Practice |
Why It Matters |
|---|---|---|
|
Proteotypic peptide choice |
Unique, well-behaved surrogate in matrix |
Poor surrogates bias protein-level inference |
|
Labeling scheme |
Confirmed mass shift with stable fragmentation |
Supports selective integration of light and heavy signals |
|
Calibrator range |
Levels bracket expected sample concentrations |
Samples outside range require dilution or curve revision |
|
Matrix matching |
Calibrators in study-relevant background |
Reduces suppression and recovery bias |
|
Spike amount |
Defined per sample and documented |
Incorrect spike level distorts ratio interpretation |
|
QC placement |
Low, mid, and high levels within validated range |
Supports acceptance of reported concentrations |
|
Acquisition platform |
Validated targeted method for each peptide |
Selectivity affects ratio accuracy |
Researchers should share target proteins, reporting units, expected concentration range, and matrix type before standard synthesis begins.
Core Advantages and Current Limitations
Core Advantages
Ratio-based precision.
Isotope dilution with labeled standards reduces run-to-run ionization variability for predefined surrogates in targeted acquisition.
Concentration-level reporting.
Calibrated assays can express results in units that support specifications, comparability, and cross-study alignment.
Selective targeted measurement.
Triple-quadrupole or high-resolution targeted acquisition focuses instrument time on validated peptide pairs rather than full proteome scanning.
QC-friendly calibration evidence.
Calibration curves, spike documentation, and recovery metrics support validation-oriented reporting.
Current Limitations
Upfront standard cost and design.
Each surrogate requires synthesis and assay pairing before cohort analysis.
Surrogate peptide dependence.
Quantitation reflects the measured peptide, not necessarily every isoform or modified form of the protein.
Dynamic range limits.
Samples outside the calibrated interval require dilution, enrichment, or assay redesign.
Matrix effects remain.
Even with isotope dilution, poor digestion consistency or interference can distort light-heavy ratios.
Labeled standards improve quantitative anchoring but do not replace sound peptide selection, matrix testing, or validation planning.
Applications in Quantitative Proteomics
Researchers commonly use AQUA peptides when concentration units matter more than fold change alone.

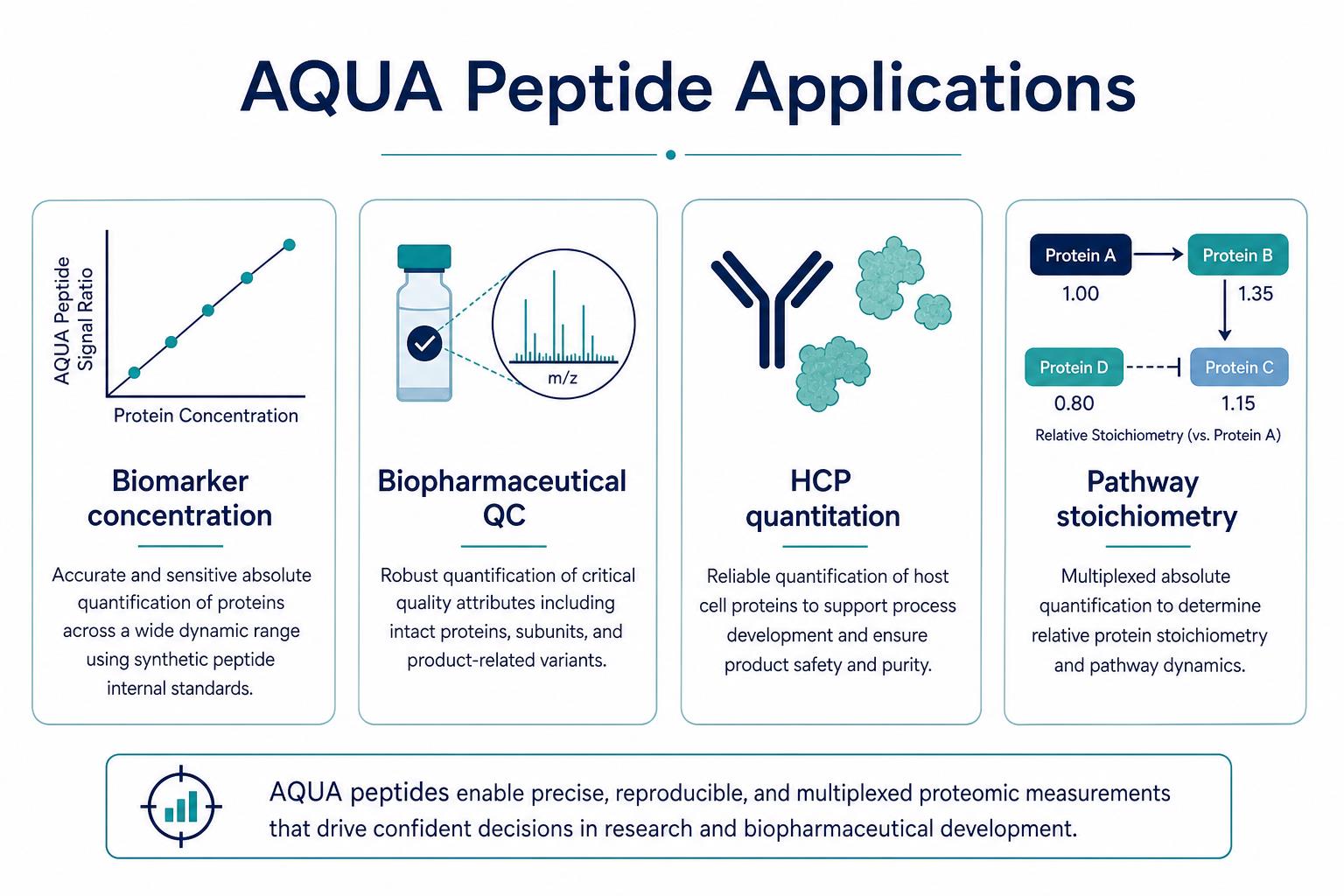

Figure 3. Common applications include biomarker concentration reporting, biopharmaceutical peptide monitoring, and host cell protein quantitation
Typical use cases include:
These applications depend on validated calibrators and targeted acquisition, not on labeled standards alone.
Expected Deliverables
A useful concentration reporting package should include more than result tables. Depending on project scope, deliverables may include:
Validation depth should match the intended use. Exploratory screens may accept a narrower package than regulated QC or multi-site comparability studies.
Frequently Asked Questions
1. What are AQUA peptides used for?
AQUA peptides are stable isotope labeled synthetic standards used in isotope dilution workflows to support concentration reporting for predefined proteotypic peptides through targeted LC-MS acquisition.
2. How do labeled AQUA standards differ from unlabeled calibrators?
Synthetic standards incorporate stable isotopes to create a measurable mass shift while matching the target sequence. They are spiked into samples and measured as heavy internal standards paired with endogenous light peptides.
3. Can AQUA peptides be used with PRM as well as MRM?
Yes. Both platforms can support calibrated quantitation when heavy-light pairs are validated and calibration is performed in the study matrix.
4. When is absolute quantification required instead of relative quantitation?
Concentration reporting is often required when results must be expressed in defined units, compared against specifications, or aligned across studies rather than reported as fold change within one experiment.
5. How many calibrator levels are typically needed?
Most assays require multiple concentration points across the expected sample range plus QC samples at low, mid, and high levels within the validated interval.
Conclusion
AQUA peptides provide the stable isotope labeled standard layer that anchors targeted proteomics assays to concentration reporting. Through isotope dilution, matrix-aware calibration, and validated targeted acquisition, teams can convert selective peptide measurement into defined units when specifications, comparability, or stoichiometric interpretation matter. Success depends on surrogate peptide choice, spike-in design, and calibrator planning as much as on standard synthesis itself.
Researchers planning AQUA-based workflows can contact MtoZ Biolabs to review target panels, reporting units, calibrator design, and matrix feasibility before peptide standards are ordered.
