Targeted Mass Spectrometry in Protein Quantification
-
Target selection. Define proteins of interest and translate them into candidate proteotypic peptides.
-
Assay development. Optimize MRM transitions, PRM isolation windows, or related selective acquisition parameters on peptide standards.
-
Matrix testing. Evaluate detectability and interference in the actual sample type.
-
Sample preparation. Digest proteins, clean up extracts, and normalize input as required.
-
Targeted LC-MS acquisition. Run the predefined panel across the sample cohort.
-
Peak integration and quantitation. Apply normalization or calibration logic and document failed or borderline targets.
-
Report delivery. Provide quantified analyte tables, method notes, and interpretation guidance.
-
Use MRM or SRM when transitions are stable, throughput is high, and matrix interference is manageable.
-
Use PRM when co-eluting background limits MRM performance or fragment confirmation adds value.
-
Use AQUA or related labeled-standard workflows when results must be reported in absolute units.
-
Use discovery profiling first when the protein list is still open and candidates must be identified before targeted assay development.
Introduction
Broad LC-MS/MS surveys can identify many proteins in a single experiment, yet many quantitative studies eventually need a more selective measurement strategy. A pharmacology group may need to monitor a defined signaling panel across treatment arms. A biomarker team may need to quantify candidate proteins reproducibly in a larger cohort. A biopharmaceutical group may need selective peptide measurement in a complex matrix where full spectral surveying is inefficient.
Targeted mass spectrometry addresses that need by directing instrument acquisition toward predefined peptides that represent selected proteins. Instead of spending cycle time across the full m/z range, the mass spectrometer monitors chosen precursors, transitions, or fragment ions during LC-MS analysis. Methods such as multiple reaction monitoring (MRM), parallel reaction monitoring (PRM), and selected reaction monitoring (SRM) are central to this approach and support protein quantification with higher selectivity and efficiency than untargeted profiling for fixed panels.
Related Services
Researchers planning targeted mass spectrometry for protein quantification can consult MtoZ Biolabs to review target list, sample matrix, and quantitation goals before assay development begins.
What Targeted Mass Spectrometry Means in Protein Quantification
In protein quantification, targeted mass spectrometry measures predefined proteotypic peptides that serve as surrogates for selected proteins. Each peptide is chosen for detectability, sequence specificity, and behavior in the project matrix. The workflow does not ask which proteins are present across the entire proteome. It asks how abundantly the predefined targets change across samples, conditions, or time points.
The approach differs from data-dependent discovery acquisition, which selects precursors dynamically from survey scans across a broad m/z range. Targeted mass spectrometry also differs from label-free profiling workflows that prioritize proteome coverage over assay-level performance for a fixed panel. When the protein list is stable and repeat measurement matters more than open-ended identification, targeted mass spectrometry is often the more direct quantitative route.

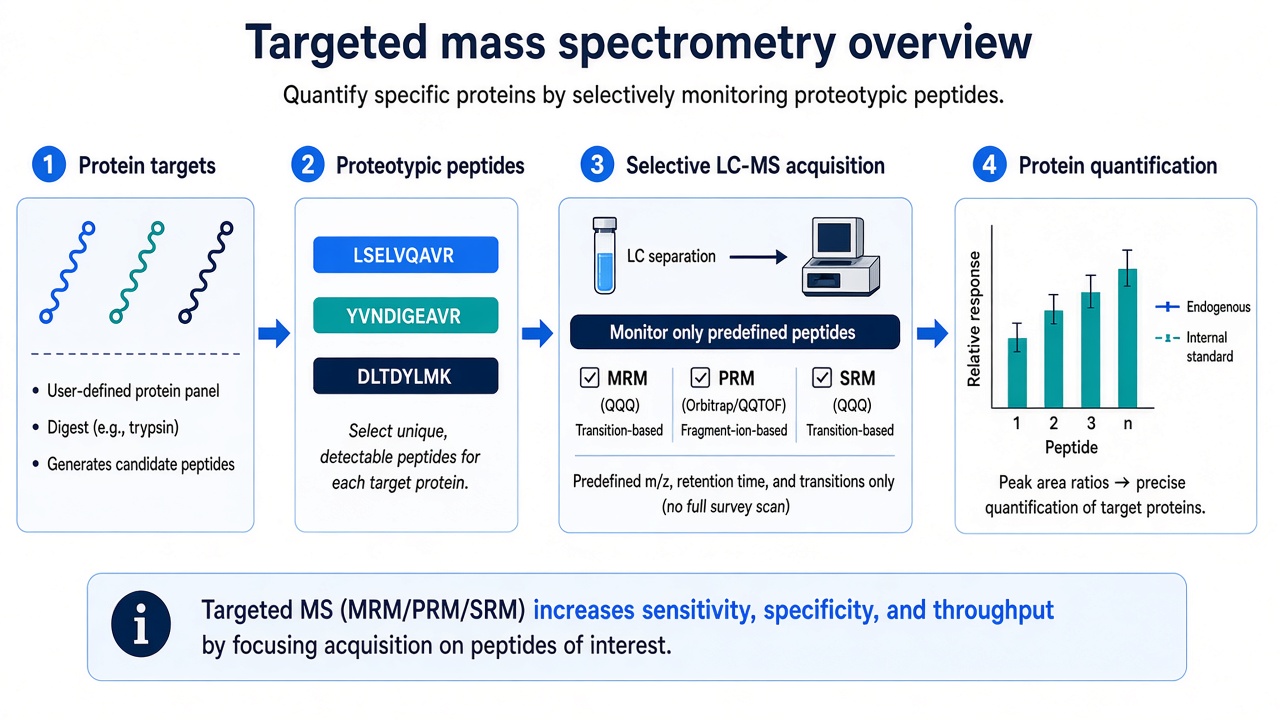

Figure 1. Targeted mass spectrometry directs LC-MS acquisition toward predefined peptides for selective protein quantification.
Core Principles of Targeted Mass Spectrometry
1. From Proteins to Measurable Peptide Targets
A targeted mass spectrometry assay begins with protein targets and converts them into proteotypic peptides suitable for selective monitoring. Peptide selection depends on sequence uniqueness, expected ionization, chromatographic retention, and performance in the sample matrix. A poorly chosen surrogate can produce precise but misleading quantitation if the peptide does not represent the intended protein reliably.
2. Selective Acquisition Instead of Full Spectral Surveying
In targeted mass spectrometry, the instrument monitors only predefined analytes during LC-MS analysis. Acquisition time is not spent on unrelated ions across the full mass range. That selectivity improves sensitivity for the chosen panel and supports reproducible quantitation across larger sample sets.
3. MRM, PRM, and SRM as Common Acquisition Modes
Multiple reaction monitoring (MRM)
on triple-quadrupole instruments monitors selected precursor-to-product transitions for each target peptide. MRM is widely used when transitions are stable, throughput is high, and matrix interference is manageable.
Parallel reaction monitoring (PRM)
on high-resolution platforms isolates target precursors and quantifies fragment ions with greater ability to resolve co-eluting interference. PRM is often selected when matrix complexity limits MRM performance for part or all of the panel.
Selected reaction monitoring (SRM)
is closely related to MRM and refers to the same general principle of monitoring selected transitions for predefined analytes. In proteomics literature, SRM and MRM are often discussed together as targeted triple-quadrupole workflows.
4. Relative and absolute quantitation logic
Targeted peptide peaks are integrated and summarized across samples. Quantitation may be relative, normalized to internal standards, or absolute when stable isotope-labeled peptides or calibrators are included in the assay design. The reporting goal should be defined during project scoping because relative and absolute quantitation require different preparation and review.
Standard Workflow for Targeted MS Protein Quantification
A robust targeted mass spectrometry project usually follows a defined sequence of steps.
Sample matrix strongly affects outcome. Plasma, tissue, cell lysate, and biopharmaceutical formulation each present different digestion, cleanup, and interference challenges. Feasibility review before assay development often prevents building a panel that the matrix cannot support.

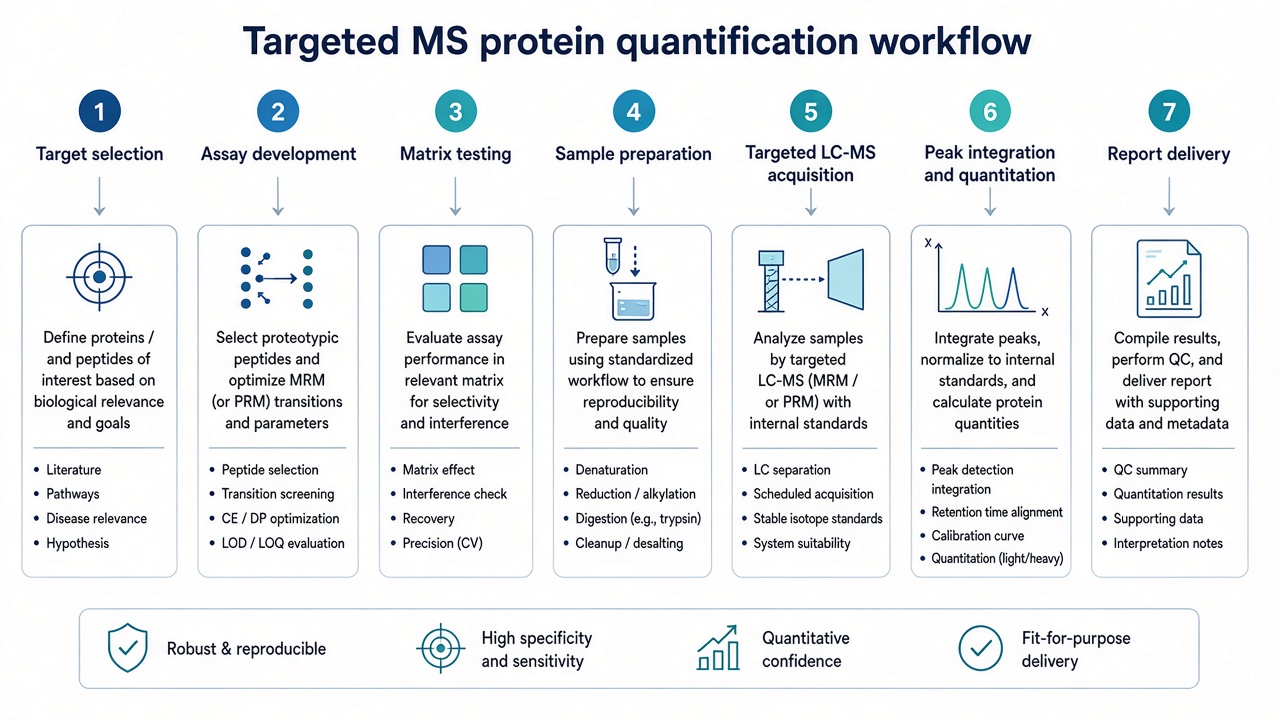

Figure 2. A targeted mass spectrometry workflow moves from peptide panel design through selective acquisition to relative or absolute quantitation.
Platform Comparison for Targeted Protein Quantification
The principles above explain why targeted mass spectrometry is selective. The table below summarizes practical differences among common acquisition routes used in protein quantification.
|
Platform |
Typical Use |
Main Technical Strength |
Main Technical Limitation |
|---|---|---|---|
|
MRM on triple quadrupole |
High-throughput predefined panels in manageable matrices |
Efficient transition monitoring and established quantitation workflows |
Interference can limit some targets in complex matrices |
|
PRM on high-resolution MS |
Panels needing greater selectivity against background |
Fragment-level confirmation within isolated precursors |
More complex method setup and data review |
|
SRM-style targeted acquisition |
Fixed transition monitoring on predefined peptides |
Mature workflow for panel quantitation |
Same matrix interference limits as MRM in difficult backgrounds |
|
Label-free discovery profiling |
Open-ended protein identification |
Broad proteome coverage |
Less efficient for fixed-panel validation-scale measurement |
|
AQUA with targeted MS |
Absolute quantitation requirements |
Combines selective acquisition with calibrated standards |
Additional standard design and validation effort |
This comparison helps match acquisition mode to matrix complexity, panel size, and reporting needs.
Core Technical Advantages and Current Limitations
1. Core Technical Advantages
Selective instrument use
Acquisition focuses on predefined peptides, improving sensitivity for the chosen panel.
High specificity for predefined targets
MRM, PRM, and SRM monitor selected ions rather than relying on full MS/MS surveying for every analyte.
Reproducible quantitation
Optimized targeted assays support consistent measurement across batches and larger cohorts.
Efficient panel measurement
Predefined peptide panels are well suited to validation-scale analysis after discovery.
Compatibility with labeled standards
Stable isotope-labeled peptides can strengthen precision and support absolute quantitation when required.
2. Current Limitations
Requires prior target definition
Unknown proteins cannot be quantified without peptide selection and assay development.
Upfront method investment
Transition optimization, matrix testing, and standard design take planning effort before cohort analysis.
Peptide detectability varies by matrix
Low-abundance targets may need enrichment or alternate proteotypic peptides.
Not a replacement for discovery profiling
Targeted mass spectrometry quantifies known targets rather than generating unbiased proteome maps.
Multiplexing has practical limits
Panel size depends on chromatography, dwell time, cycle time, and platform capacity.
Targeted mass spectrometry is valuable for predefined protein quantification, but success depends on thoughtful peptide selection, matrix review, and realistic panel scope.
Typical Research and Industry Uses
Targeted mass spectrometry supports several recurring protein quantification workflows.
1. Biomarker Validation
Quantify candidate proteins identified in discovery studies across larger sample sets with selective peptide monitoring.
2. Pathway Panel Tracking
Measure predefined signaling proteins across treatment groups, doses, or time courses.
3. Biopharmaceutical Peptide Monitoring
Quantify product-related peptides selectively in formulation or comparability matrices.
4. Absolute Protein Quantitation
Combine targeted acquisition with AQUA or other labeled standards when concentration reporting is required.
5. Assay Reproducibility and Method Transfer
Support predefined panel measurement across batches, operators, or sites when QC documentation matters.
Researchers should define whether the project needs relative abundance comparison, normalized panel reporting, or absolute quantitation before selecting MRM, PRM, or labeled-standard support.

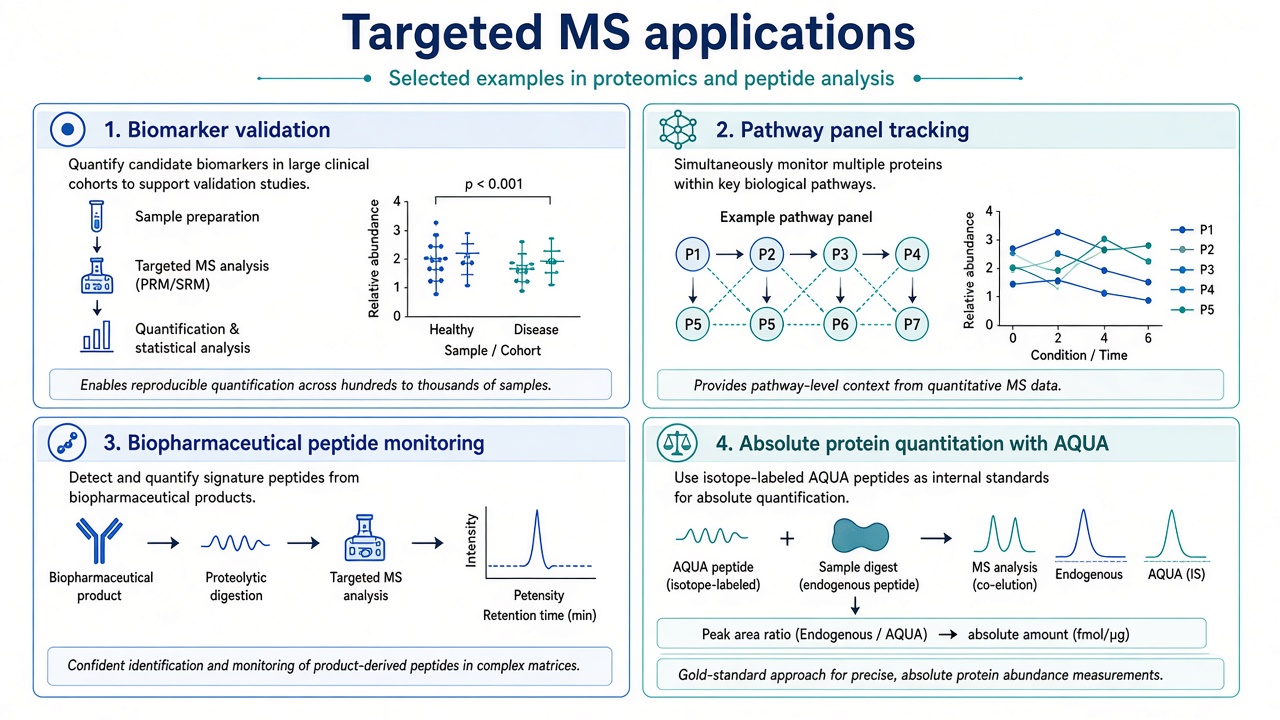

Figure 3. Targeted mass spectrometry supports biomarker monitoring, pathway panels, biopharmaceutical QC, and absolute quantitation workflows.
How to Choose the Right Targeted MS Route
The appropriate acquisition mode depends on study stage, matrix complexity, and reporting needs.
A practical project plan often begins with feasibility review of target list, matrix type, and expected sample number before transitions or PRM windows are locked.
Future Outlook
Targeted mass spectrometry in protein quantification continues to benefit from improved chromatography, higher-resolution acquisition, better scheduling algorithms, and more efficient panel multiplexing. Laboratories are increasingly combining discovery screening with predefined MRM or PRM panels so that candidate proteins can move into validation-scale measurement with less method redevelopment. At the same time, matrix complexity, low-abundance targets, and panel scope still require project-specific judgment during peptide selection and assay optimization.
For many teams, outsourcing targeted mass spectrometry to a service provider such as MtoZ Biolabs provides access to assay development experience, platform selection, and reporting formats suited to biomarker, pathway, or biopharmaceutical quantitation without building every capability internally.
Frequently Asked Questions
1. What is the difference between targeted mass spectrometry and discovery proteomics?
Discovery proteomics surveys many proteins without pre-specifying acquisition targets. Targeted mass spectrometry measures predefined peptides with selective LC-MS acquisition such as MRM or PRM.
2. Are MRM, PRM, and SRM the same?
They are related but not identical. MRM and SRM refer to selected transition monitoring on triple-quadrupole platforms. PRM uses high-resolution precursor isolation and fragment ion quantitation.
3. Can targeted mass spectrometry provide absolute quantitation?
Yes, when stable isotope-labeled standards or calibrators are included in the assay design and the project is scoped for concentration reporting.
4. When should PRM be chosen over MRM?
PRM is often selected when matrix interference limits MRM performance or when fragment-level confirmation adds value for part or all of the panel.
5. How many proteins can one targeted MS panel include?
Panel size depends on chromatography, cycle time, and platform. Feasibility review clarifies realistic multiplexing for a given matrix and instrument setup.
Conclusion
Targeted mass spectrometry provides a selective, reproducible route to predefined protein quantification when validation-scale measurement matters more than proteome-wide discovery. By converting protein targets into proteotypic peptides, optimizing MRM, PRM, or SRM acquisition, and reviewing matrix performance before cohort analysis, the workflow supports biomarker validation, pathway quantitation, biopharmaceutical monitoring, and absolute quantitation when calibrated standards are required. More reliable outcomes come from matching acquisition mode to matrix complexity, defining quantitation goals early, and planning assay development before large sample sets are submitted. Researchers planning targeted mass spectrometry for protein quantification can contact MtoZ Biolabs to review target list, sample matrix, and reporting needs before assay development and selective LC-MS analysis begin.
