Scoping an Edman Sequencing Project: Sample Requirements, Cycle Count, and Report Deliverables
-
-
-
-
-
-
assigned N-terminal sequence by cycle
-
residue confidence notes for early cycles
-
PTH-amino acid identification summary or chromatogram excerpts
-
comments on signal fade or cycle dropout
-
comparison against provided target sequence
-
notes on leucine/isoleucine ambiguity
-
recommendation for repeat run, unblocking pretreatment, or MS confirmation
-
report format suitable for internal QC or regulatory documentation
-
submit the purest available material the first time
-
define the minimum read length needed for the decision
-
share target sequence and modification history upfront
-
request feasibility review for PVDF or suspected blocked samples
-
plan MS fallback early if blocking is likely
Introduction
Edman sequencing projects move faster when scope is defined before samples ship. Teams often request a fixed number of cycles without confirming whether the material supports that read length, whether the N-terminus is accessible, or whether the final report must satisfy internal QC, regulatory documentation, or publication standards. Unclear scope leads to repeated runs, extended timelines, and reports that do not match the decision the project team actually needs to make.
A well-scoped N-terminal project begins with three questions: what material is available, how many residues must be confirmed, and what evidence format is required for the next milestone. Sample purity, N-terminal blocking risk, submission format, and planned cycle count all influence feasibility, cost, and turnaround. If your team is preparing an N-terminal confirmation package for recombinant protein release, peptide verification, or biopharmaceutical documentation, MtoZ Biolabs can scope an Edman sequencing project before material leaves the lab.
Related Services
What to Define Before Requesting a Quote
Most project delays come from missing information rather than instrument capacity. Before requesting Edman degradation support, define the following:
1. Sample Identity and Target Sequence
Provide protein or peptide name, expected N-terminal sequence, expression host, and any known modifications.
2. Material Format
Liquid purified protein, HPLC fraction, or PVDF blot band each require different handling and feasibility review.
3. Required Read Length
Specify how many N-terminal residues must be confirmed, not just a maximum cycle count.
4. QC Purpose
Lot release, clone verification, biosimilar comparison, and publication support may require different report depth.
5. Prior Analytical Data
Share failed Edman runs, gel purity images, or intact mass results when available.
6. Timeline and Documentation Needs
Confirm whether a formal report, raw chromatogram summaries, or comparison against a reference sequence is required.
Clear scoping reduces the risk of paying for cycles that sample chemistry cannot support and helps the provider recommend pretreatment or MS fallback when needed.
Sample Requirements That Drive Feasibility
Edman sequencing performance depends heavily on sample quality at submission.
1. Purity
Co-purifying proteins or overlapping HPLC peaks can dominate sequencer response and obscure the target N-terminus.
2. Amount
Insufficient load reduces PTH signal and shortens usable read length.
3. N-Terminal Accessibility
Blocked or modified termini may require or an MS-based route.
4. Submission Format
Liquid samples and PVDF blots are both common, but transfer quality and washing history affect yield.
5. Storage and Handling
Freeze-thaw damage, prolonged storage, or incompatible buffers can reduce success before sequencing begins.
When purity or blocking status is uncertain, request feasibility review before final shipment. A short consultation often prevents a full rerun.
For recombinant proteins, note whether the expression system is prokaryotic or eukaryotic because N-terminal acetylation risk differs. For synthetic peptides, confirm whether N-terminal modification was introduced during synthesis. For PVDF submissions, describe gel percentage, transfer method, and whether the band was excised cleanly. These details help the provider estimate cycle yield before samples are shipped.
How Cycle Count Affects Scope and Cost
Cycle count is not interchangeable with project success. A ten-cycle request may be appropriate for one QC package and excessive for another.
| Project Need | Typical Cycle Range | Notes |
|---|---|---|
| Confirm first residue only | 1 to 2 cycles | Useful when a single N-terminal amino acid must be verified |
| Short QC confirmation | 3 to 5 cycles | Common for recombinant lot release or peptide identity checks |
| Extended N-terminal read | 6 to 15 cycles | Requires higher purity and stronger initial signal |
| Documentation-heavy biopharm package | Defined by SOP | May include comparison to reference and orthogonal confirmation |
Cost and timeline usually scale with cycle count, sample complexity, and whether pretreatment or repeat analysis is needed. Request only the read length required for the decision at hand. If signal fades after five residues, additional cycles may not add usable information without sample improvement.

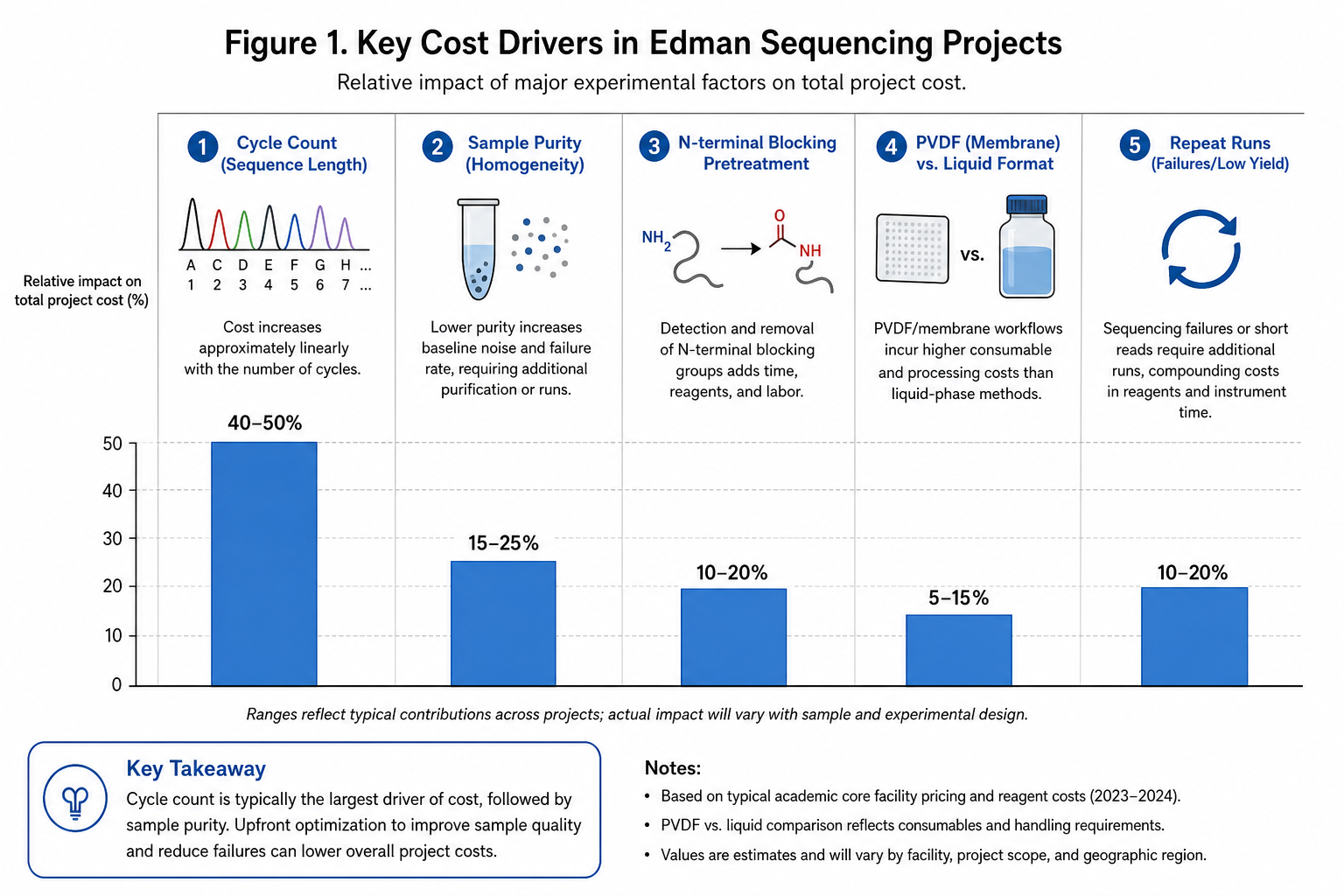

Figure 1. Cycle count, sample purity, and blocking status are the main drivers of Edman project scope and cost.
Typical Project Timeline
Turnaround depends on sample readiness, queue capacity, and whether pretreatment is required.
| Stage | Typical Activity |
|---|---|
| Feasibility review | Confirm sample format, blocking risk, and cycle target |
| Sample receipt and QC | Verify identity, load, and handling notes |
| Sequencing run | Perform planned Edman degradation cycles |
| Data review | Assign residues and assess signal quality |
| Report delivery | Provide sequence, chromatogram summary, and comparison notes |
Simple unblocked liquid samples with short read requirements often move quickly. PVDF submissions, blocked termini, or repeat runs after failed prior attempts extend the schedule. Planning orthogonal MS confirmation at the start avoids sequential delays when Edman alone cannot satisfy the documentation requirement.

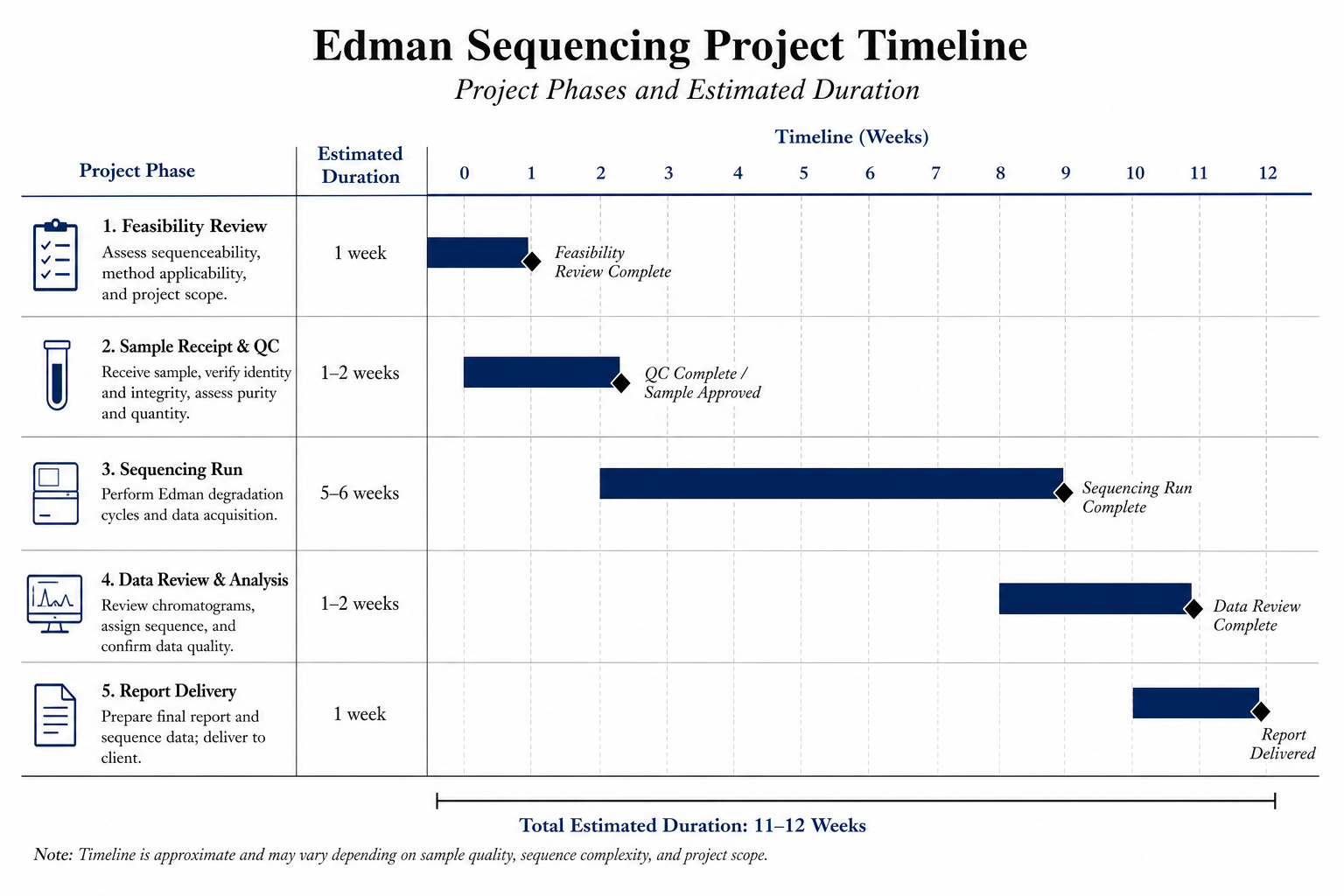

Figure 2. Feasibility review before shipment shortens total time to a usable N-terminal report.
Report Deliverables to Request Up Front
Different stakeholders need different outputs. Define deliverables during quoting rather than after the run is complete.
Minimum useful deliverables often include:
Additional deliverables may include:
For biopharmaceutical projects, ask whether includes the documentation depth your quality system expects.
Vendor Evaluation Criteria
When comparing Edman sequencing providers, look beyond price per cycle.
Sample feasibility review. Does the vendor assess blocking risk and purity before accepting material?
Blocked N-terminus capability. Can the provider offer pretreatment or route the project to MS if Edman fails?
Experience with your sample type. Recombinant proteins, synthetic peptides, and PVDF blots each present different challenges.
Report clarity. Are cycle assignments, limitations, and comparison notes documented clearly?
Fallback options. If Edman degradation cannot proceed, can the same provider support ?
Turnaround transparency. Are timeline estimates tied to sample complexity rather than a generic promise?

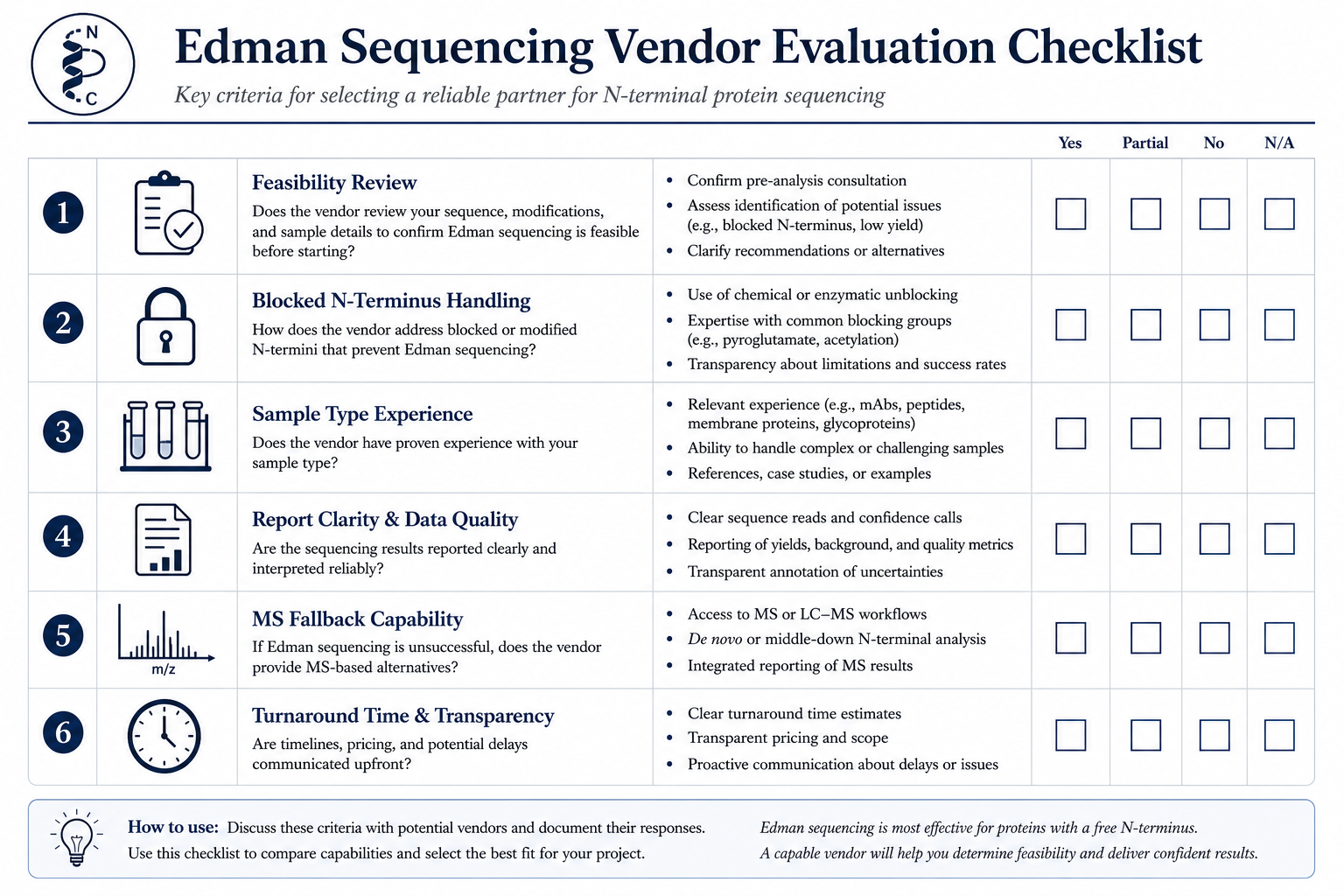

Figure 3. Feasibility review, blocked N-terminus handling, and report quality matter more than cycle price alone.
Budget Planning Tips
To keep N-terminal projects within budget:
Avoid requesting long cycle counts on low-load or impure material. A shorter successful read often has more value than a long failed run.
When budgeting for a multi-sample campaign, group samples by complexity. Unblocked liquid proteins with short read requirements can often be quoted as routine runs. PVDF bands, suspected blocked termini, or extended read lengths should be scoped individually because pretreatment and repeat analysis add cost unpredictably if not reviewed upfront.
Including a one-page sample summary with each quote request also speeds feasibility review and reduces back-and-forth before shipment authorization.
Frequently Asked Questions
1. How much sample is needed for Edman sequencing?
Requirements depend on sample type, purity, and requested cycle count. Providers can advise after reviewing format and target read length.
2. Can I request ten cycles for every sample?
Only when sample purity and N-terminal accessibility support that read length. Over-scoping cycles increases cost without improving outcomes.
3. What information should I include in the quote request?
Target sequence, sample format, expression system, known modifications, required read length, and prior analytical data if available.
4. Does PVDF submission cost more than liquid sample?
Pricing depends on provider workflow and sample handling complexity. Feasibility review clarifies the best submission route.
5. Can one vendor handle Edman and MS fallback?
Yes. Integrated N-terminal support reduces resubmission delays when the first route is blocked or ambiguous.
Conclusion
Successful Edman sequencing projects are planned around sample chemistry and documentation needs, not cycle count alone. By defining material format, required read length, blocking risk, and report deliverables before shipment, teams reduce rework and obtain N-terminal evidence that supports the next QC or release decision.
MtoZ Biolabs can plan your Edman sequencing scope across , , and biopharmaceutical N-terminal workflows. Contact the technical team with sample details and target read length to receive a feasibility-aligned project plan before samples are shipped.
