No N-Terminal Read from Your Sample? Troubleshooting Blocked Termini and Weak Sequencing Signals

Introduction

An N-terminal sequencing project can finish without delivering the terminal answer the QC team needs. The run may complete, yet early residues are weak, ambiguous, or absent. For recombinant lot release, peptide verification, or biopharmaceutical documentation, a failed N- terminal read creates immediate delay even when intact mass and peptide mapping look acceptable.

Weak or absent N-terminal signals usually reflect sample chemistry or preparation limits rather than instrument failure alone. Blocking modifications, co-purifying proteins, insufficient sample load, poor PVDF transfer, or prior mishandling can all reduce read quality before meaningful sequence assignment begins. Repeating the same submission without reviewing blocking status or purity often produces the same poor result.

If your team is troubleshooting a failed N-terminal read or preparing material with suspected terminal modification, MtoZ Biolabs can Assess N-terminal sample readiness and recommend the most efficient recovery path before material is resubmitted.

Related Services

Customer Need	Recommended Service Direction
Need N-terminal sequence analysis	N-Terminal Sequencing Service
Need Edman degradation protein sequencing	Protein Sequencing Service by Edman Degradation
Need Edman-based N-terminal workflow	Edman Degradation for N-Terminal Sequence Analysis Service
Need blocked N-terminus handling	N-Terminal Sequencing (N-Terminal Unblocked) Service
Need MS-based N-terminal confirmation	MS-Based Protein N-Terminal Sequence Analysis Service
Need biopharmaceutical N-terminal QC	Biopharmaceutical N-Terminal Sequencing Service

Common Signs of a Failed or Weak N-Terminal Read

Researchers often seek help after observing one or more of the following patterns:

• no confident residue is assigned in early cycles or MS runs

• the first one or two residues are weak while background rises

• observed N-terminal sequence does not match the expected mature start

• sequencing stops after only one or two residues despite sufficient planned read length

• multiple candidate residues appear in the same cycle

• PVDF transfer looked acceptable, but sequencer response remains poor

• the project requires ten or more residues, but signal fades almost immediately

These outcomes are common with N-terminally acetylated proteins, pyroglutamate-blocked peptides, highly impure preparations, and samples stored or handled under conditions that promote modification or loss.

Understanding the failure pattern helps guide recovery. Cycle-one failure with no residue assignment usually points to blocking. Weak early cycles followed by background rise often suggest impurity or low load. A short successful read that fades quickly may reflect normal cycle loss rather than a fundamental sample problem.

Blocking Modifications That Stop N-Terminal Sequencing

Several N-terminal modifications prevent standard Edman coupling and are worth reviewing before resubmission.

1. N-terminal Acetylation

Common in eukaryotic expression systems and some native proteins. The acetylated alpha-amino group cannot react with phenyl isothiocyanate (PITC) under standard conditions.

2. Pyroglutamate Formation

Glutamine or glutamic acid at the N-terminus can cyclize to pyroglutamate, blocking the free amino group required for cycle one.

3. Other Blocking Groups

Formylation, carbamylation, or chemical modifications introduced during synthesis, storage, or handling can also reduce coupling efficiency.

When any of these modifications is suspected, standard N-terminal sequencing by Edman may not proceed without pretreatment. Share expression host, synthesis method, and storage history with the provider so blocking risk can be assessed before another run is scheduled.

Why N-Terminal Sequencing May Fail

Before resubmitting material or switching methods, review the most frequent causes.

1. Blocked N-terminus

N-acetylation, pyroglutamate cyclization, or other modifications prevent PITC coupling and stop Edman sequencing at cycle one.

2. Sample Impurity

Co-migrating proteins on a gel blot or HPLC fraction can dominate response and obscure the target N-terminus.

3. Insufficient Sample Load

Too little material reduces signal below reliable identification thresholds.

4. Poor Transfer or Preparation

Incomplete PVDF transfer, inadequate washing, or incompatible buffer salts can reduce performance.

5. Early Cycle or Signal Loss

Difficult sequences may show rapid fade even when the N-terminus is technically accessible.

6. Incorrect Route Selection

A blocked terminus may require MS-based analysis rather than standard Edman degradation.

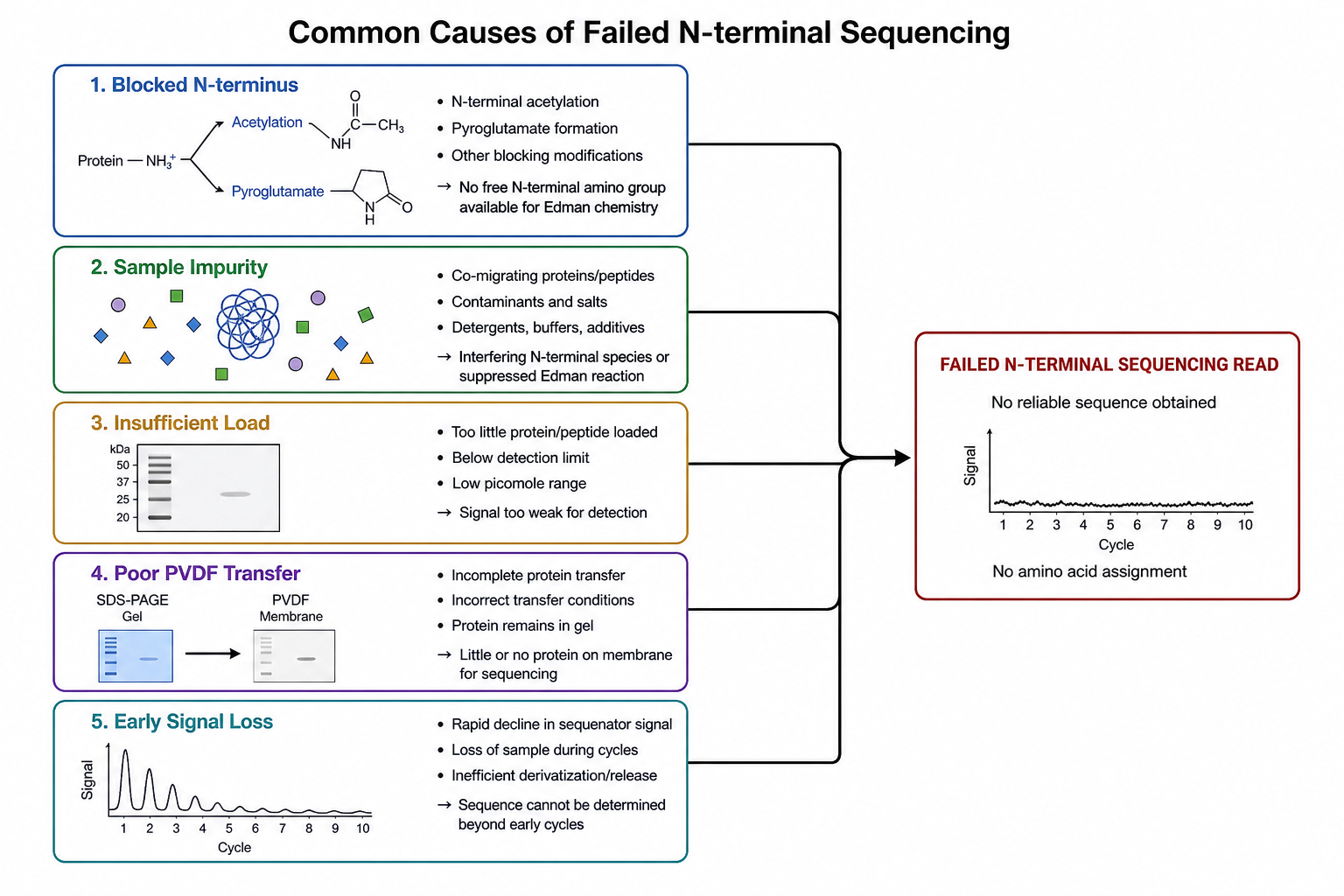

Figure 1. Failed N-terminal reads often reflect blocking modifications, purity, or signal yield rather than instrument malfunction alone.

Step-by-Step Recovery Guide

When N-terminal analysis fails, use a structured review rather than repeating the same run.

Step 1: Confirm Whether the N-Terminus Is Blocked

Review expression system, processing history, and any known modifications. Pyroglutamate, acetylation, and other N-terminal PTMs are frequent causes of cycle-one failure. If blocking is likely, discuss pretreatment or N-Terminal Sequencing (N-Terminal Unblocked) Service before another standard run.

Step 2: Reassess Sample Purity

Inspect gel purity, HPLC trace, or prior QC data. Additional purification or a cleaner blot band may be required before the target N-terminus can be read confidently.

Step 3: Review Sample Amount and Submission Format

Verify that enough material was submitted for the requested read length. PVDF loading, liquid sample presentation, and blot staining quality all affect yield.

Step 4: Evaluate Early-Cycle or Early-MS Data Quality

Inspect whether weak signal reflects blocking, impurity, or normal fade after a short successful read. This distinction determines whether pretreatment, reprep, or scope reduction is the best next step.

Step 5: Plan an Alternative Route if Needed

If Edman degradation cannot proceed, consider MS-Based Protein N-Terminal Sequence Analysis Service or Peptide Mapping Service when a reference sequence exists and confirmation is the goal.

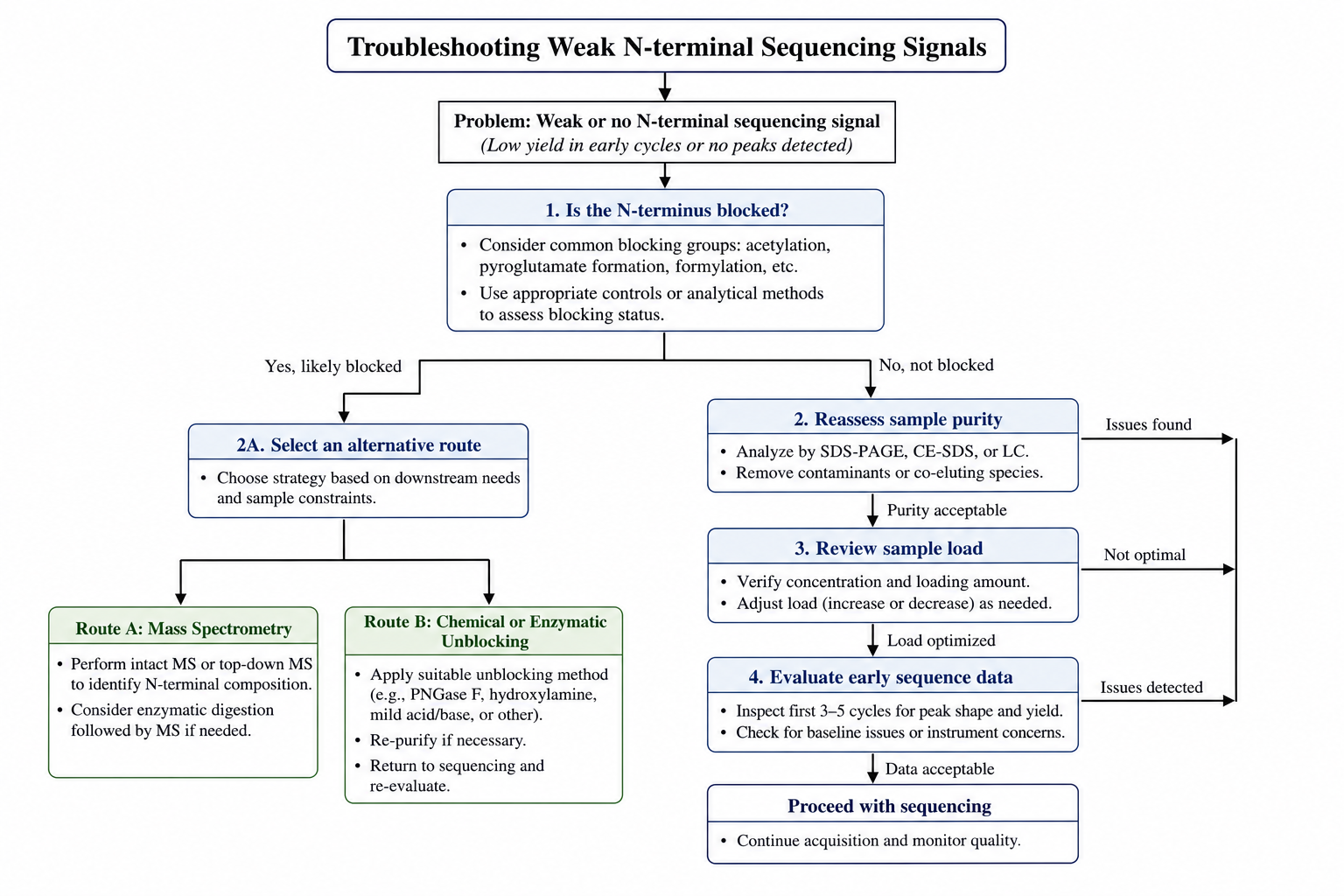

Figure 2. Blocking review, purity improvement, and route selection are the highest-leverage fixes for weak N-terminal data.

Sample Requirements That Most Affect Success

Sample quality is often the highest-leverage factor in N-terminal read success.

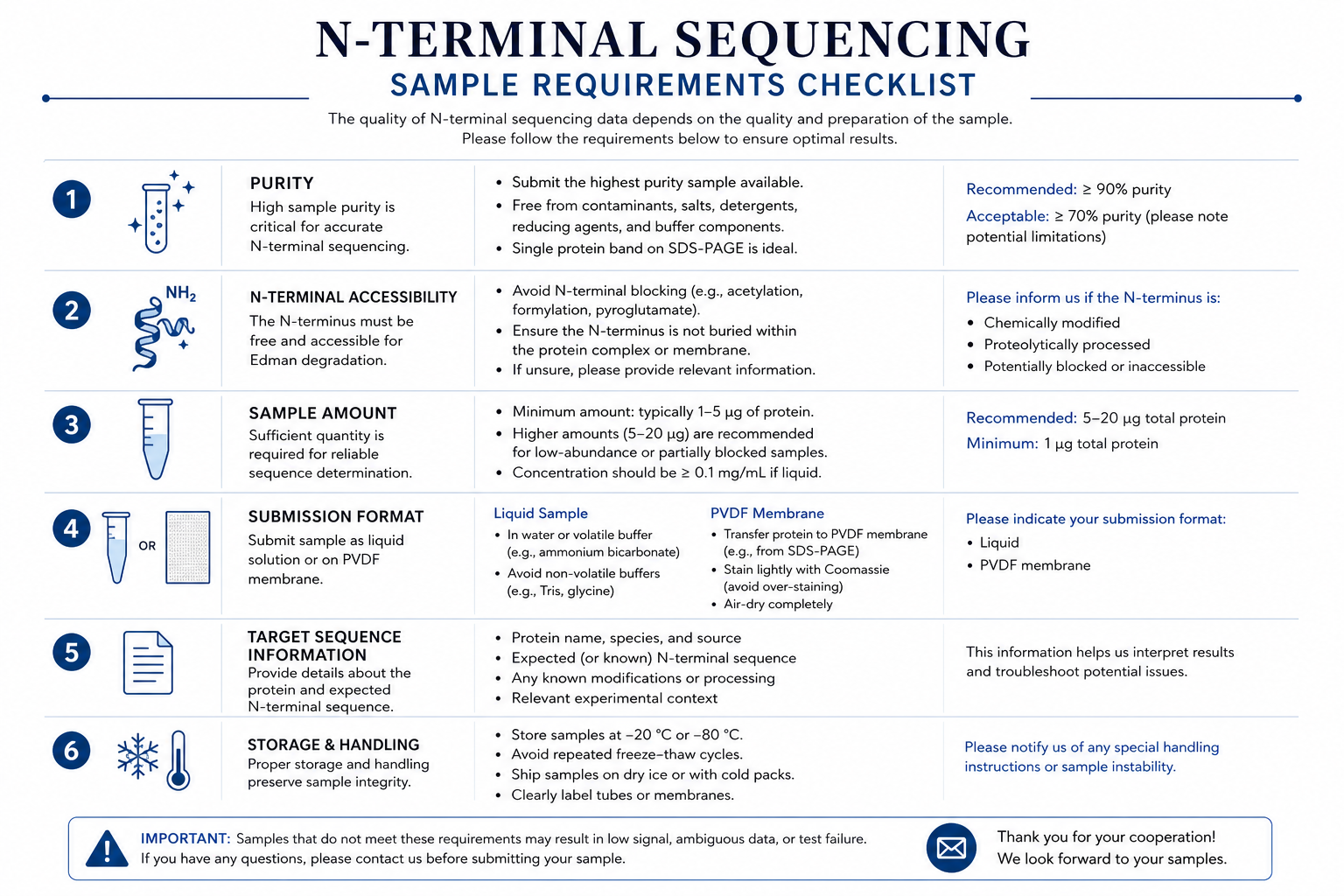

Figure 3. Feasibility review before shipment reduces failed runs and shortens time to a usable N-terminal report.

For shipping, follow provider guidance on liquid versus PVDF submission, cold-chain requirements, and target sequence information. Include expression host, known modifications, purification method, and any prior failed run data when available.

Liquid samples should be free of detergents, high salt, or solvents that interfere with sequencer chemistry. PVDF bands should be well separated on the gel, transferred cleanly, and stained without excessive background. Overloading a blot can increase background in early cycles just as underloading can produce weak signals.

If a previous run produced only one or two residues, share those results with the provider. Partial data often indicate whether blocking or purity is the primary issue.

Expected Results After a Successful Recovery

A successful N-terminal project should deliver more than a tentative residue call. Expected outputs may include:

• assigned N-terminal sequence over the requested read length

• method notes indicating Edman, MS, or combined analysis

• signal strength or confidence comments for early residues

• comparison against target sequence for verification projects

• recommendations for orthogonal confirmation if needed

Validation options depend on project goal:

• Repeat N-terminal sequencing after unblocking pretreatment when modification was the likely barrier

• Orthogonal MS N-terminal analysis when Edman remains blocked or ambiguous

• Peptide mapping when a reference sequence exists and broader confirmation is sufficient

Key Cautions

Do not assume intact mass alone confirms N-terminal identity. Mass data may not reveal blocking modifications or processing differences at the terminus.

Do not treat one weak cycle as proof of sequence mismatch. Signal quality and purity must be reviewed before drawing conclusions.

Do not skip metadata on expression system and known PTMs. Blocking status is often predictable from sample history.

Do not request long read lengths when sample amount or purity supports only a short QC confirmation.

Frequently Asked Questions

1. Should I rerun N-terminal sequencing on the same sample without changes?

Only after reviewing blocking status, purity, and prior run data. Repeating the same submission on blocked or impure material rarely helps.

2. Can a blocked N-terminus be sequenced?

Sometimes, after appropriate pretreatment or by MS-based analysis. Feasibility review is essential before resubmission.

3. What if only the first residue is recovered?

That may still confirm a critical N-terminal amino acid, but longer verification usually requires improved sample conditions or an alternative method.

4. Can MS replace Edman for N-terminal QC?

In some cases, yes. MS can be preferable for blocked termini or when larger contextual confirmation is needed.

5. How can I reduce resubmission delays?

Submit the purest available material, provide target sequence and modification history, and request feasibility review before shipping.

Conclusion

Weak or failed N-terminal reads are often a solvable sample chemistry or preparation problem rather than a reason to abandon terminal testing. By reviewing modification status, purity, load, and early-run data before resubmitting material, teams can often obtain the N-terminal evidence required for QC, verification, or documentation.
