Ion Exchange Chromatography Peptide Purification Service
- Raw data files from LC or MS systems for traceability and validation
- Processed data tables (CSV or Excel) summarizing peptide purity, recovery, and retention characteristics
- Comprehensive summary reports in PDF format detailing experimental parameters, chromatographic conditions, and key results
- Chromatograms and spectra in high-resolution image formats (TIFF or PNG) for data presentation and publication
MtoZ Biolabs provides ion exchange chromatography peptide purification service using the principle of ion exchange chromatography to achieve efficient separation and purification of charged peptides. This service is suitable for synthetic peptides, recombinant peptides, and complex peptide mixtures derived from biological samples. It effectively removes isomers, truncated peptides, and impurities to obtain target peptides with high purity and high recovery. The purified peptides are ideal for structural analysis, functional validation, and subsequent mass spectrometry detection in both research and pharmaceutical applications.
Principle of Ion Exchange Chromatography
Ion exchange chromatography (IEC) separates molecules based on their charge differences.
Separation Mechanism: The stationary phase carries charged groups that reversibly interact with oppositely charged peptides. By adjusting the pH or salt concentration of the mobile phase, target peptides can be gradually eluted.
Main Types: Includes cation exchange and anion exchange modes, suitable for peptides with different charge states.
Key Advantages: High selectivity, large loading capacity, excellent reproducibility, and minimal impact on peptide bioactivity.
Du, M. et al. Front Bioeng Biotechnol. 2022.

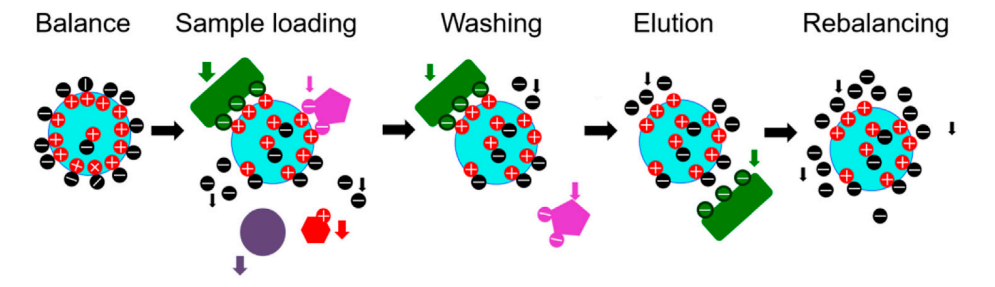

Figure 1. The Principle of Ion Exchange Chromatography
This method is widely used in peptide purification, especially for separating peptides with similar isoelectric points or identical chain lengths.
Ion Exchange Chromatography Peptide Purification Service at MtoZ Biolabs
MtoZ Biolabs provides customized peptide purification solutions based on high-resolution ion exchange systems and automated control platforms. The service includes:
🔹 Optimized Ion Exchange Purification Process Based on Charge Properties
According to the peptide’s isoelectric point and ionization characteristics, the appropriate cation or anion exchange mode is selected. The buffer system and gradient elution strategy are optimized to achieve high-resolution separation of charged peptide molecules.
🔹 Peptide Purification and Purity Evaluation
Target peptides are separated by controlling flow rate, salt concentration, or pH conditions, followed by purity and recovery assessment using HPLC or LC-MS to ensure reproducible and reliable results.
🔹 Subsequent Mass Spectrometry Analysis
The purified peptide samples can be further analyzed by LC-MS/MS for sequence confirmation, modification site identification, and quality verification, providing high-quality data to support structural studies and functional characterization.
Workflow of Ion Exchange Chromatography Peptide Purification Service
1. Sample Pretreatment: Remove salts and organic impurities, and adjust pH to the appropriate range
2. Stationary Phase Selection: Choose cation or anion exchange columns according to peptide charge characteristics
3. Sample Loading and Binding: Control buffer conditions to promote peptide binding to the stationary phase
4. Gradient Elution: Achieve separation by gradually increasing salt concentration or adjusting pH
5. Detection and Collection: Monitor elution profiles via UV or MS and collect target fractions
6. Purity Verification: Confirm purity and recovery using HPLC or LC-MS
Why Choose MtoZ Biolabs
☑️ Advanced Chromatography Platforms: Equipped with automated ion exchange and HPLC systems to ensure separation efficiency and data consistency
☑️ Experienced Expert Team: Skilled in peptide chemistry and chromatographic optimization for condition customization
☑️ Strict Quality Control: Comprehensive process monitoring from loading to collection to ensure target peptide purity
☑️ Flexible Data Delivery: Support for multiple data formats, facilitating publication and data archiving
Applications of Ion Exchange Chromatography Peptide Purification Service
1. Peptide drug development and quality control
2. Peptide structure research and sequence confirmation
3. Purification and analysis of enzyme-digested or modified peptides
4. Separation of isomers or peptides with charge variations
5. Biomarker validation and functional peptide studies

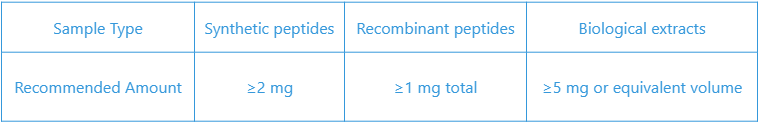

Sample Submission Guidelines
Deliverables
1. Purified peptide samples in lyophilized or solution form
2. Ion exchange chromatograms and analytical data
3. Purity and recovery reports in Excel format
4. Analytical report and experimental condition summary in PDF format
5. Chromatograms and spectra in high-resolution TIFF or PNG format
FAQs
Q1: What is the service's general workflow?
Q2: What data formats are provided?
MtoZ Biolabs provides results in multiple standardized formats to ensure compatibility with analytical and visualization platforms. Deliverables typically include:
Additional data formats or specialized file structures can be provided upon request to meet specific research or publication requirements.
Q3: How should I prepare my samples?
To ensure accurate and reproducible results for Ion Exchange Chromatography Peptide Purification Service, MtoZ Biolabs recommends the following preparation guidelines:
1. Sample Type: We accept a broad range of peptide samples, including synthetic peptides, recombinant peptides, and complex peptide mixtures derived from biological sources
2. Sample Purity: Samples should be free from particulates, buffers with extreme pH, or high concentrations of salts, detergents, and organic solvents that may interfere with chromatographic binding or elution
3. Amount Requirement: Please provide at least 1–2 mg of peptide powder or ≥500 µL of peptide solution. Larger volumes may be requested for replicate or method optimization runs
4. Storage and Shipping: Store synthetic peptides at −20°C and biological or recombinant peptides at −80°C. Ship samples on dry ice in leak-proof containers to preserve sample integrity
5. Documentation: Include detailed sample information such as peptide sequence, concentration, buffer composition, and target purification goals
For more information, please refer to Sample Submission Guidelines for Proteomics and Sample Submission Guidelines for Metabolomics.
If you are unsure about your sample preparation, our technical team can provide personalized pre-analysis consultation and a sample submission guide to help you optimize preparation and shipping conditions.
Start Your Project with MtoZ Biolabs
MtoZ Biolabs' ion exchange chromatography peptide purification service focuses on precise separation and high-purity recovery, enabling researchers and pharmaceutical clients to obtain peptide samples that meet experimental or production needs. Contact us to receive customized solutions tailored to your research needs.
