Edman Sequencing or LC-MS/MS for N-Terminal Analysis? Matching the Method to Your Sample and QC Goal
-
-
-
-
-
-
purified protein or peptide material is available
-
the N-terminus is expected to be free and unblocked
-
the project requires direct cycle-based N-terminal evidence
-
a short read length is sufficient for lot release or verification
-
regulatory or internal SOPs specify Edman for N-terminal QC
-
the N-terminus is blocked or modified
-
a reference sequence exists and confirmation is the goal
-
the project requires broader contextual peptide evidence
-
Edman cycles fail in early residues despite good purity
-
orthogonal confirmation is needed alongside Edman data
-
the N-terminus is expected to be free
-
a direct short N-terminal read satisfies the QC requirement
-
purified protein or peptide material is available
-
cycle-based evidence is preferred for release documentation
-
the N-terminus may be blocked or modified
-
Edman cycles fail in early residues
-
a reference sequence already exists
-
broader peptide-level confirmation is acceptable
-
full sequence reference exists
-
the goal is overall coverage confirmation rather than direct N-terminal cycles
-
the product is a biologic with high documentation standards
-
processing heterogeneity must be evaluated thoroughly
Introduction
N-terminal analysis projects rarely fail because teams lack analytical capability. They fail because the selected method does not match the sample chemistry or the evidence standard required for the next decision. One team may need a direct ten-residue N-terminal read for lot release. Another may need to characterize a blocked recombinant terminus. A third may only need confirmation that processing removed a signal peptide correctly.
Edman degradation and LC-MS/MS-based N-terminal analysis can both support N-terminal characterization, but they begin from different assumptions. Edman sequencing reads the N-terminus sequentially by chemical cycles from purified material. LC-MS/MS usually analyzes N-terminal peptides after enzymatic digestion or enrichment and interprets mass spectrometric evidence against a reference or de novo.
The best choice depends on sample purity, N-terminal accessibility, expected read length, and whether the project requires direct cycle-based evidence or broader mass spectrometric confirmation. If your team is deciding between Edman degradation and MS for N-terminal QC, MtoZ Biolabs can compare N-terminal routes before samples are prepared or submitted.
Start With the QC Question, Not the Platform
Method selection usually begins with one of four project scenarios:
1. Direct N-terminal confirmation of purified protein or peptide.
A short read from the true N-terminus is sufficient for release or verification.
2. Blocked or modified N-terminus suspected.
Standard Edman coupling may fail without pretreatment or an MS-based route.
3. Reference sequence already exists.
The goal is confirmation rather than discovery of an unknown terminus.
4. Biopharmaceutical documentation requires orthogonal evidence.
Two independent N-terminal methods may be preferred.
These scenarios lead to different default routes. Clean, unblocked purified material often favors Edman degradation for direct N-terminal reads. Blocked, complex, or reference-backed confirmation projects may favor LC-MS/MS or combined analysis.
Related Services
Route Comparison at a Glance
| Decision Factor | Edman Sequencing | LC-MS/MS N-Terminal Analysis |
|---|---|---|
| Core readout | Sequential cycle-based N-terminal residues | N-terminal peptide identification by MS/MS |
| Best sample condition | Purified protein or peptide with accessible N-terminus | Purified material; blocked termini may still be approachable |
| Typical read length | Short to moderate N-terminal read | Depends on enrichment and coverage design |
| Strong fit for QC confirmation | Excellent for direct N-terminal reads | Strong when reference exists or terminus is modified |
| Common bottleneck | Blocked N-terminus, purity, cycle fade | Digest design, enrichment, interpretation complexity |
| Ideal deliverable | Cycle-based N-terminal sequence | MS peptide evidence for N-terminal region |
When Edman Sequencing Is the Better Fit
Edman degradation is usually the preferred first step when:
Strengths include direct readout from the N-terminus outward and long-established acceptance in protein and biopharmaceutical QC workflows. For recombinant products with predictable processing and clean purification, Edman sequencing is often efficient and easy to document.
Limitations include sensitivity to blocking modifications, limited read length, and dependence on sample purity. Leucine and isoleucine may not be distinguished in standard PTH-HPLC systems.
Teams with unblocked purified material may review or .
When LC-MS/MS Is the Better Fit
MS-based N-terminal analysis is often preferable when:
Strengths include flexibility with modified termini and compatibility with broader peptide mapping or proteomics workflows. can be especially useful when standard Edman coupling does not proceed.
Limitations include more complex sample prep, dependence on digestion or enrichment strategy, and often less direct cycle-by-cycle visual evidence than Edman degradation.
Combined Strategies in Biopharmaceutical QC
Some projects benefit from using both routes. Edman sequencing can provide direct N-terminal cycle data, while LC-MS/MS confirms processing variants, truncations, or modified termini that Edman alone cannot explain. Combined analysis is most valuable when the product is high value and documentation standards require orthogonal support.
For example, a recombinant therapeutic may pass Edman sequencing for the first five residues while MS N-terminal analysis reveals a minor truncated variant beginning two residues downstream. A biosimilar comparability package may use Edman for direct cycle evidence and peptide mapping for broader sequence confirmation. In each case, the methods answer related but not identical questions.
When documentation must withstand regulatory review, define which N-terminal evidence satisfies the SOP before selecting a single route. workflows often combine method selection with report formatting aligned to QC requirements.

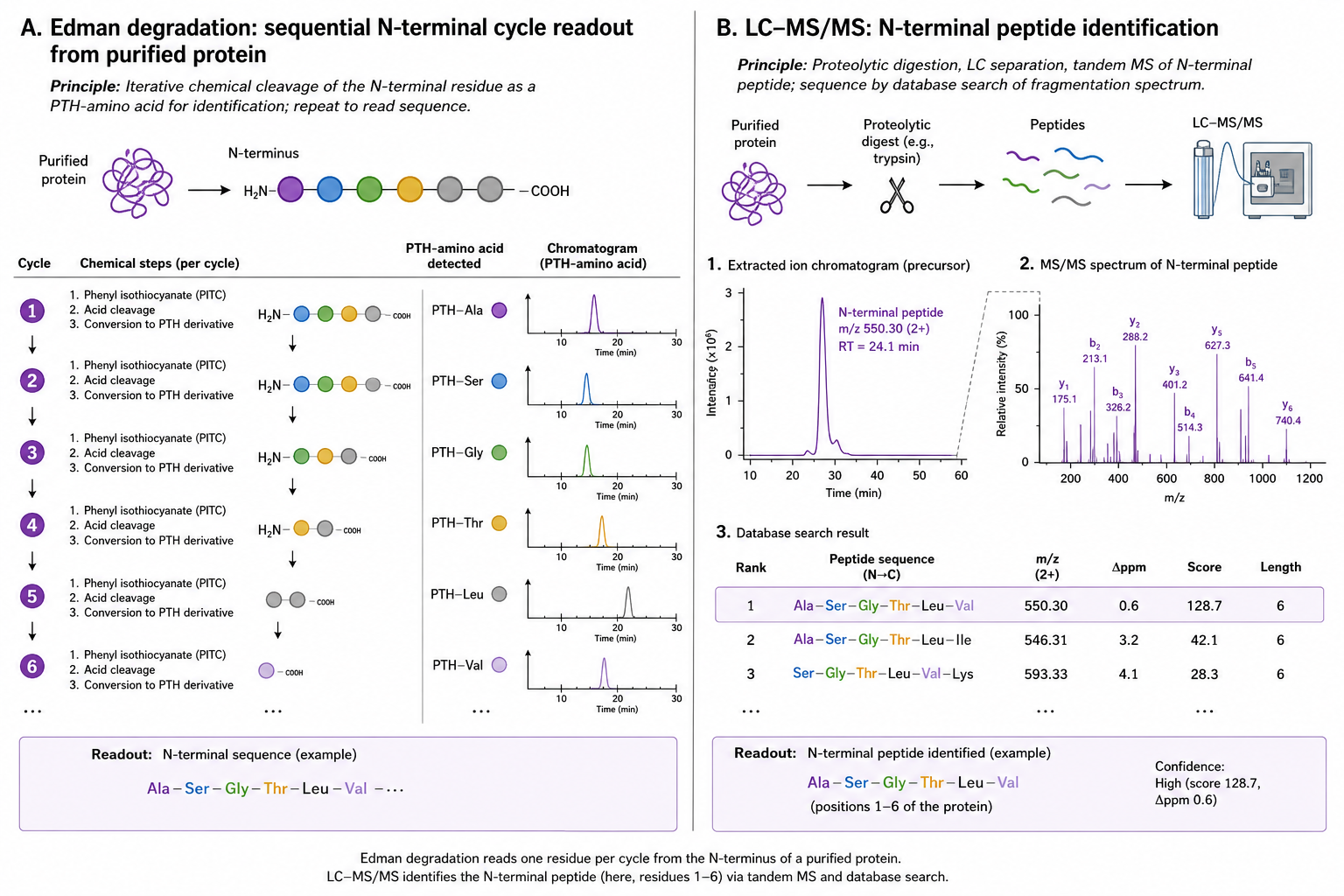

Figure 1. N-terminal accessibility and documentation requirements determine whether Edman degradation or LC-MS/MS is the better first step.
Decision Recommendations by Project Goal
Choose Edman sequencing when:
Choose LC-MS/MS N-terminal analysis when:
Choose peptide mapping when:
Consider combined evidence when:
In-House vs Outsourced N-Terminal Analysis
Some organizations maintain in-house Edman capability for routine QC. However, blocked termini, low-load PVDF samples, and ambiguous early cycles still benefit from experienced method selection and pretreatment expertise.
Outsourcing can reduce rework when modification status is uncertain, sample purity is borderline, or report-ready documentation is required on a fixed timeline. When comparing vendors, ask whether blocked N-termini, PVDF samples, and MS fallback routes are handled within one project plan.
For occasional N-terminal confirmation projects, outsourced support is often more efficient than maintaining occasional specialty pretreatment workflows internally.
Practical Examples by Sample Type
Unblocked recombinant IgG fragment. Purified material with expected free N-terminus after signal peptide removal. Edman sequencing for five to ten cycles is often sufficient for lot release documentation.
Synthetic peptide with suspected pyroglutamate. Cycle-one failure despite good HPLC purity. MS-based N-terminal analysis or unblocking pretreatment may be required before Edman can proceed.
Gel-purified protein on PVDF. Band appears clean by Coomassie stain but co-migrating contaminants are present. Additional purification or a tighter blot band may be needed before Edman degradation produces confident early cycles.
Reference-backed biosimilar. Full sequence is known. Peptide mapping or MS N-terminal confirmation may satisfy the QC requirement, with Edman added when direct cycle evidence is specified in the comparability protocol.
These examples illustrate why method selection should follow sample chemistry and documentation requirements rather than default instrument preference.

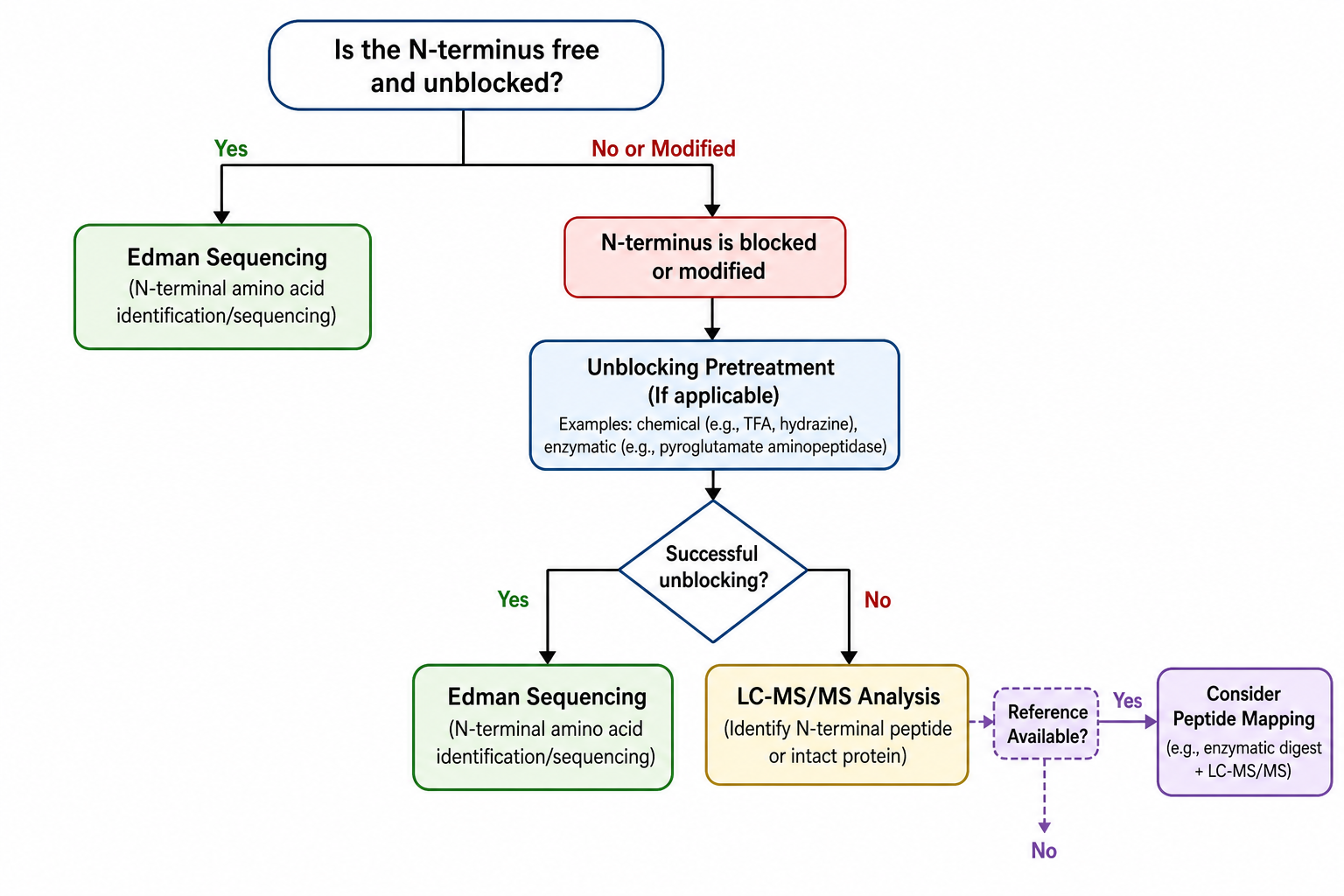

Figure 2. Blocking status and QC evidence requirements determine the preferred N-terminal analysis route.
Frequently Asked Questions
1. Is Edman sequencing always the first choice for N-terminal QC?
Not when the N-terminus is blocked or when MS-based confirmation is better matched to the sample and SOP.
2. Can both methods be used on one sample?
Yes. Many biopharmaceutical workflows use Edman for direct N-terminal cycles and MS for orthogonal confirmation.
3. Does Edman replace peptide mapping?
No. Peptide mapping confirms broader coverage against a reference. Edman reads the N-terminus directly by cycles.
4. What if my sample is only available on PVDF?
PVDF blots are common Edman substrates when bands are clean and load is sufficient.
5. Can Edman support biosimilar N-terminal documentation?
Yes, when purified material is available and the required read length is defined clearly during scoping.
Conclusion
Edman sequencing and LC-MS/MS N-terminal analysis answer overlapping but distinct QC needs. Edman degradation is usually the stronger first choice for direct N-terminal reads from unblocked purified material. LC-MS/MS becomes preferable when modifications, blocking, or orthogonal peptide evidence are central to the project. Method selection should begin with N-terminal accessibility and documentation requirements, not instrument preference alone.
MtoZ Biolabs can match the N-terminal workflow to sample chemistry and QC goal across , . Contact the technical team to compare options before sample submission.
