Disulfide Bond Mapping: LC-MS/MS Workflow, Data Interpretation, and Applications in Protein Characterization

Introduction

Disulfide bond mapping is a core higher-order characterization task for cysteine-rich proteins and biotherapeutics. Sequence analysis confirms which cysteine residues are present, but mapping determines how those residues are linked in the native product. A development team may need LC-MS/MS evidence that an antibody retains expected interchain and intrachain disulfides. A comparability group may investigate whether a process change altered hinge connectivity. A QC laboratory may review disulfide-linked peptides as part of an identity or investigation package.

Disulfide bond mapping by LC-MS/MS uses non-reduced proteolytic digestion, peptide separation, and tandem mass spectrometry to detect disulfide-linked peptides and assign cysteine pairs in the reference sequence. The workflow extends standard peptide mapping with sample handling and data review requirements specific to connectivity assignment. Success depends as much on interpretation quality as on instrument performance because disulfide-linked peptides often produce complex spectra and may be low in abundance.

For protein characterization programs, disulfide bond mapping delivers actionable connectivity evidence when workflow design, spectral review, and reporting standards are matched to the product format and project decision.

What Disulfide Bond Mapping by LC-MS/MS Means

Disulfide bond mapping by LC-MS/MS identifies covalent cysteine linkages in a protein by analyzing peptides that retain disulfide bridges after digestion. Under non-reduced conditions, linked cysteines remain connected as a single peptide species with mass corresponding to the crosslinked pair. Liquid chromatography separates these species from linear peptides, and tandem mass spectrometry provides precursor and fragment ion data for assignment.

The output is a connectivity map listing assigned disulfide bonds, supporting peptide evidence, and notes on ambiguous or unsupported regions. For monoclonal antibodies, mapping typically addresses heavy-light interchain disulfides and intrachain Fab and Fc linkages. For fusion proteins and enzymes, additional domain junction bonds may require broader digestion and review strategies.

Reduced and alkylated LC-MS/MS mapping is often performed in parallel to provide sequence coverage and a comparison control, although reduced data alone cannot prove native disulfide pairing.

Why Disulfide Bond Mapping Matters in Protein Characterization

Disulfide connectivity influences folding, stability, aggregation, and biological activity. In biotherapeutics, incorrect pairing or scrambling can occur even when primary sequence is unchanged, making disulfide mapping a relevant quality and characterization attribute.

Mapping supports identity confirmation when products are defined by both sequence and native connectivity.

Comparability assessment may require evidence that disulfide architecture remains consistent across lots or manufacturing conditions.

Investigation of mass anomalies, activity loss, or stability drift often includes disulfide review when cysteine-linked structure is suspected.

CMC and regulatory packages for disulfide-rich proteins commonly include peptide-level connectivity documentation.

LC-MS/MS mapping integrates with existing bottom-up characterization workflows already used for sequence and PTM review.

Disulfide mapping does not define full tertiary structure, but it provides direct cysteine-pair evidence at peptide resolution.

Standard LC-MS/MS Workflow for Disulfide Bond Mapping

A robust disulfide bond mapping workflow proceeds through linked stages from sample intake to reporting.

Reference setup documents mature sequence, cysteine positions, and expected disulfide architecture. Sample preparation preserves native disulfide bonds and addresses buffer, excipient, or detergent interference before digestion. Non-reduced digestion uses protease conditions selected to generate informative disulfide-linked peptides without unintended reduction. LC-MS/MS acquisition separates peptide species and collects precursor and fragment spectra with sufficient depth for critical linked peptides. Data interpretation matches observed masses and MS/MS evidence to predicted cysteine pairs, applies review thresholds, and flags ambiguous assignments. Reporting delivers a connectivity map, supporting spectral summary, method notes, and interpretation relative to the project goal.

Paired reduced and non-reduced analysis strengthens workflow confidence when comparability or investigation is in scope.

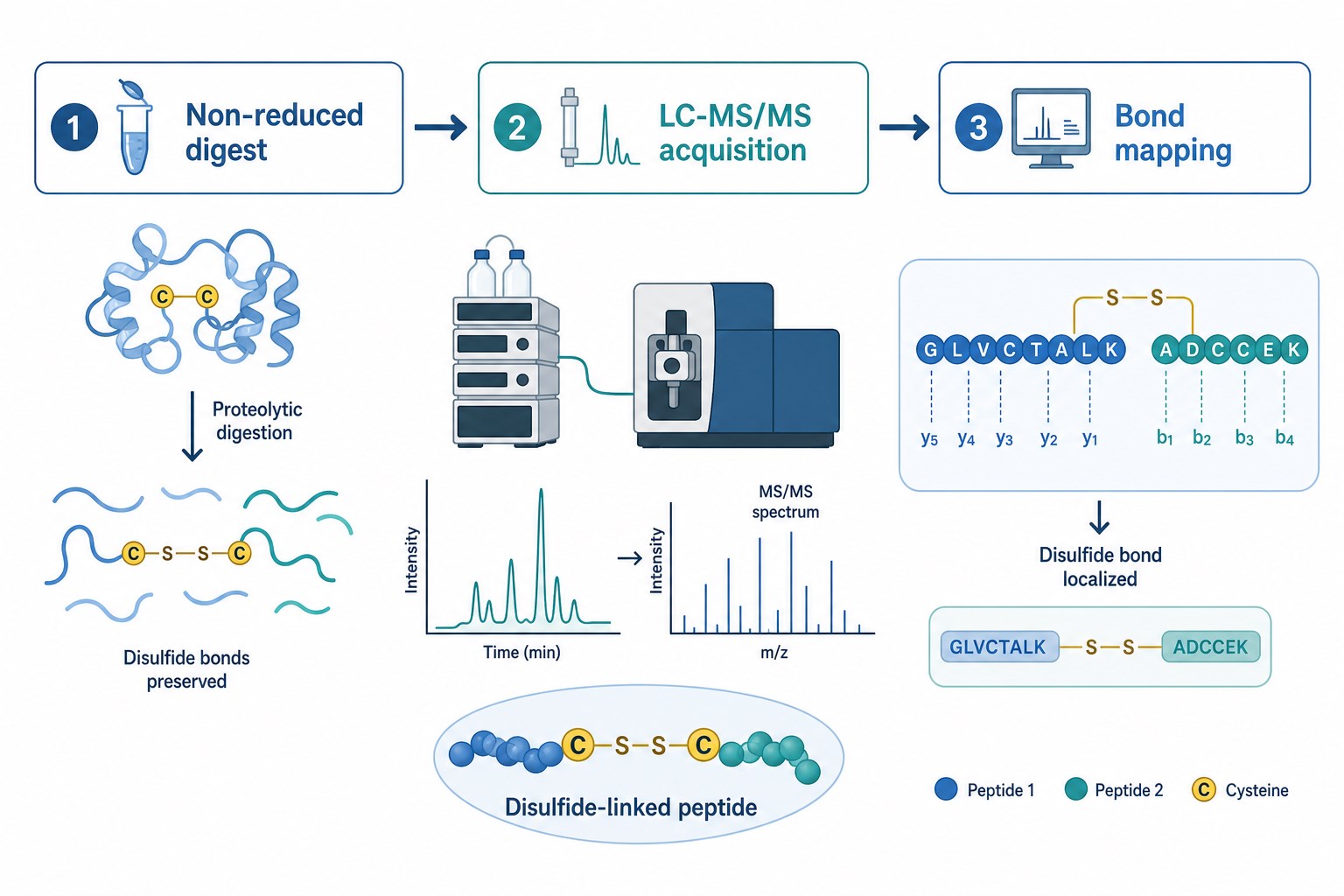

Figure 1. Disulfide bond mapping by LC-MS/MS follows non-reduced digestion, LC-MS/MS acquisition, and structured bond mapping.

Related Services

Disulfide Bond Analysis Service

Protein Disulfide Bond Analysis Service

Biopharmaceutical Disulfide Bond Analysis Service

Peptide Mapping Service

Comprehensive Peptide Mapping Service

Primary Structure Analysis Service

Teams planning disulfide bond mapping by LC-MS/MS can consult MtoZ Biolabs to review protein format, expected connectivity, and the workflow best matched to characterization needs.

LC-MS/MS Workflow Stages in Detail

Each workflow stage affects mapping confidence and should be planned before analysis begins.

Sample and digestion control

Disulfide scrambling and partial reduction during preparation can create artifactual connectivity differences. Controlled handling, qualified reagents, and documented non-reduced digestion conditions reduce this risk. Enzyme choice influences whether disulfide-linked peptides are suitable for LC-MS/MS or require multi-enzyme follow-up.

Chromatography and acquisition depth

Disulfide-linked peptides may elute differently from linear counterparts and can be lower in abundance. Extended LC gradients, replicate injections, and targeted acquisition improve recovery of hinge or domain-bridged species when sample amount allows.

Reduced versus non-reduced pairing

Running reduced and non-reduced digests from the same lot supports interpretation. Peptides present only in non-reduced data strongly suggest disulfide linkage. Profile differences between lots may indicate connectivity change, preparation artifact, or isoform heterogeneity requiring further review.

Data Interpretation for Disulfide Bond Mapping

Data interpretation is the most decision-critical phase of disulfide bond mapping by LC-MS/MS. Automated software output alone is often insufficient for high-confidence connectivity assignment.

Precursor mass matching

Observed precursor mass must match a plausible disulfide-linked peptide pair within defined tolerance. Multiple candidate pairings may fit a single mass, so mass alone is rarely sufficient for final assignment.

MS/MS fragment support

Fragment ions that support one or both peptide backbones strengthen assignment confidence. Large crosslinked peptides may produce complex or incomplete fragmentation, requiring manual expert review and conservative reporting.

Manual review and confidence grading

Reviewers evaluate spectral quality, retention time consistency, replicate behavior, and consistency with expected architecture. Assignments are often graded as confirmed, provisional, or unsupported rather than reported as binary yes/no calls without evidence context.

Comparison to expected connectivity

Observed bonds are interpreted against product-specific reference architecture. Unexpected linked peptides may indicate isoforms, mispairing, scrambling, or preparation artifacts and should trigger follow-up rather than automatic acceptance.

Reporting ambiguous regions transparently

A strong mapping report documents unsupported bonds, low-abundance isoforms, and regions requiring orthogonal follow-up. Transparency improves usability for comparability and CMC decisions.

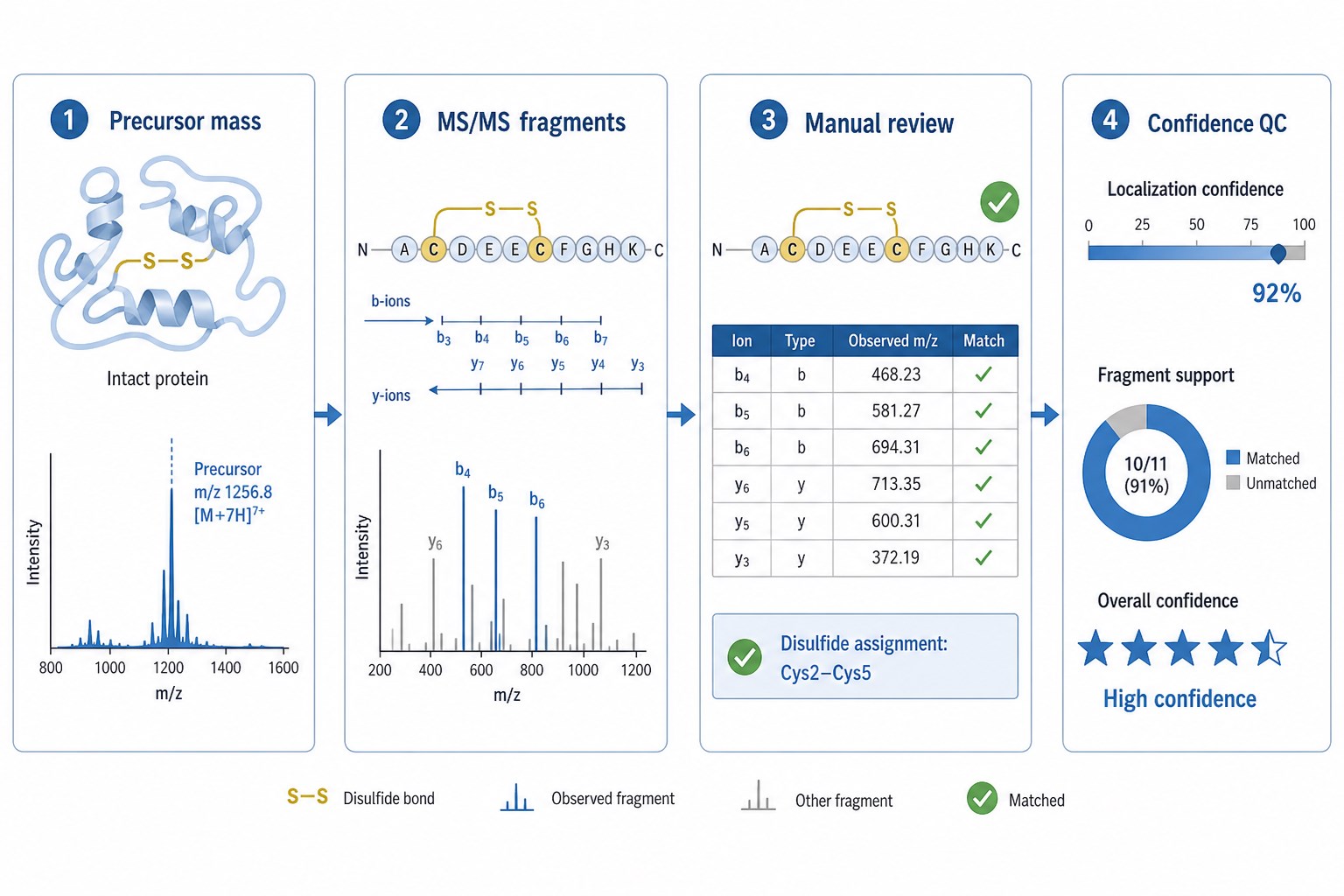

Figure 2. Disulfide bond mapping data interpretation relies on precursor mass matching, MS/MS fragment support, manual review, and confidence QC.

Workflow and Interpretation Checklist

The table below summarizes practical focus points across the LC-MS/MS mapping workflow.

Workflow Stage	Key Action	Interpretation Focus
Reference setup	Define expected cysteine pairs	Prevent misassignment against wrong architecture
Sample prep	Preserve native disulfide bonds	Exclude scrambling artifacts
Non-reduced digest	Optimize enzyme and conditions	Maximize recoverable linked peptides
LC-MS/MS acquisition	Ensure depth for low-abundance links	Obtain usable fragment evidence
Data review	Apply confidence thresholds	Separate confirmed from provisional bonds
Reporting	Document unsupported regions	Support comparability and CMC use

If interpretation standards are undefined before analysis, final reports may be difficult to compare across batches or laboratories.

Applications in Protein Characterization

Disulfide bond mapping by LC-MS/MS supports multiple protein and biologics characterization scenarios.

Identity confirmation verifies that recombinant proteins, antibodies, and fusion products contain expected disulfide linkages during development and documentation.

Comparability assessment compares connectivity profiles before and after process, purification, formulation, or site changes.

Mispairing investigation evaluates suspected scrambling, partial reduction, or unexpected mass features linked to cysteine connectivity.

CMC and QC support provides peptide-level disulfide evidence in characterization packages for disulfide-rich products.

Biosimilar or reference alignment compares disulfide mapping data when connectivity is part of analytical similarity review.

Application depth should match project stage, from major linkage confirmation in early development to fuller review documentation in late-stage packages.

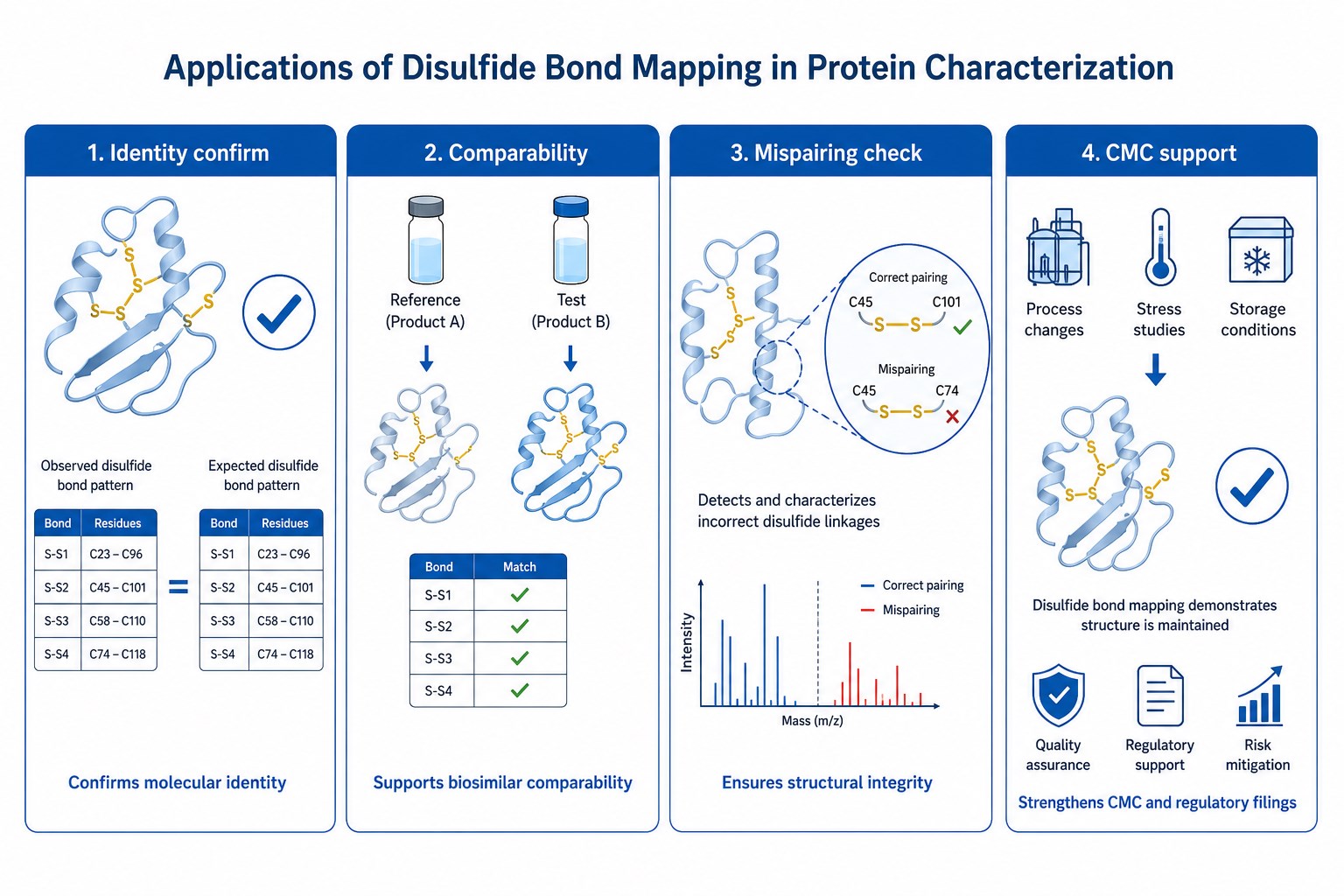

Figure 3. Disulfide bond mapping supports identity confirmation, comparability review, mispairing investigation, and CMC documentation in protein characterization.

Core Advantages and Practical Limits

Core Advantages

Peptide-resolution connectivity evidence.

LC-MS/MS detects disulfide-linked peptides corresponding to specific cysteine pairs.

Structured workflow integration.

Mapping extends established bottom-up characterization used in biologics labs.

Interpretable comparability data.

Paired reduced and non-reduced datasets support lot and condition comparison.

Flexible strategy expansion.

Multi-enzyme or targeted re-analysis can resolve difficult bridged regions.

Decision-oriented reporting.

Confidence-graded assignments improve usability for QC and CMC review.

Practical Limits

Complex spectra require expert review.

Automated assignment alone may not meet project standards for disulfide-linked peptides.

Large linked peptides may remain unsupported.

Poor fragmentation limits confidence even with optimized LC-MS/MS conditions.

Sample handling artifacts persist as a risk.

Scrambling can mimic true structural differences if prep is not controlled.

Isoform mixtures complicate interpretation.

Products may contain more than one connectivity pattern requiring careful reporting.

Mapping does not replace full structural analysis.

Connectivity assignment differs from complete conformational characterization.

Sample and Project Planning Considerations

Before disulfide bond mapping by LC-MS/MS begins, teams should define:

• protein sequence and expected disulfide architecture
• product format and domain or chain composition
• sample type and formulation matrix
• primary characterization goal: identity, comparability, or investigation
• need for paired reduced and non-reduced LC-MS/MS analysis
• interpretation and reporting standards for confirmed versus provisional bonds

Feasibility review before digestion reduces repeat analysis caused by incompatible matrices or unclear connectivity expectations.

Expected Deliverables

A useful disulfide bond mapping report by LC-MS/MS typically includes:

• connectivity map with assigned cysteine pairs
• list of supporting disulfide-linked peptides and confidence notes
• comparison to expected disulfide architecture
• reduced digest coverage summary when paired analysis is performed
• annotated spectra or review commentary for critical linkages
• documentation of ambiguous, unsupported, or isoform-related regions
• method summary covering digestion, LC-MS/MS conditions, and review criteria

Deliverables should clearly separate confirmed assignments from provisional or unsupported connectivity calls.

Frequently Asked Questions

1. What is disulfide bond mapping by LC-MS/MS?

It is a workflow that uses non-reduced digestion and tandem mass spectrometry to detect disulfide-linked peptides and assign cysteine connectivity in proteins.

2. Why is data interpretation especially important?

Disulfide-linked peptides often produce complex spectra, and precursor mass alone may not distinguish between candidate cysteine pairs without MS/MS and expert review.

3. Is reduced LC-MS/MS mapping required?

Reduced mapping is often performed in parallel for sequence coverage and comparison, but non-reduced data provide the direct connectivity evidence.

4. Which products commonly need disulfide bond mapping?

Monoclonal antibodies, fusion proteins, enzymes, and other disulfide-rich biologics where connectivity affects structure or function.

5. Can mapping support comparability studies?

Yes. Controlled paired analysis of reference and test lots can compare disulfide profiles when connectivity is a relevant attribute.

6. Does disulfide bond mapping replace other structural methods?

No. It assigns cysteine connectivity at peptide level. Full conformational analysis may require additional orthogonal methods.

Conclusion

Disulfide bond mapping by LC-MS/MS provides a practical route to cysteine connectivity assignment in protein characterization through non-reduced digestion, targeted acquisition, and rigorous data interpretation. Workflow quality and reporting confidence depend on sample control, enzyme strategy, spectral review, and transparent documentation of unsupported regions.

For biotherapeutics and recombinant proteins alike, mapping bridges sequence confirmation and higher-order structural review by showing which cysteines are linked in the product. Teams that define interpretation standards early and pair non-reduced data with appropriate controls produce connectivity evidence suitable for development, comparability, and CMC decisions. Groups planning disulfide bond mapping by LC-MS/MS can contact MtoZ Biolabs to review sample status, workflow design, and reporting depth for their characterization program.
