Disulfide Bond Analysis LC-MS Service
- mature protein sequence and expected disulfide pairs
- product format and chain composition
- sample type: research material, drug substance, or drug product
- project goal: confirmation, comparability, investigation, or CMC documentation
- reference lot or comparator availability if comparison is required
- known modifications, clipping, or prior mass anomalies if applicable
- required reporting depth and timeline
- list of assigned disulfide-linked peptides and proposed cysteine pairs
- comparison to expected disulfide architecture
- reduced digest coverage summary when paired analysis is performed
- annotated spectra or confidence notes for critical linkages
- documentation of ambiguous or unsupported regions
- method summary covering digestion, LC-MS/MS conditions, and review criteria
- interpretation relative to identity, comparability, or investigation goals
Introduction
Disulfide bond architecture is a defining structural attribute for monoclonal antibodies, fusion proteins, enzymes, and many other biotherapeutics. Incorrect cysteine pairing can affect folding, stability, aggregation, and biological activity even when the primary sequence is correct. A development team may need disulfide confirmation during candidate characterization. A CMC group may require peptide-level connectivity evidence for a comparability package. An analytical group may investigate unexpected mass features that suggest scrambling or partial reduction.
A disulfide bond analysis LC-MS service applies liquid chromatography and tandem mass spectrometry to identify disulfide-linked peptides, assign cysteine connectivity, and compare observed linkages with expected product architecture. The service typically combines non-reduced peptide mapping, reduced control analysis where appropriate, expert spectral review, and structured reporting suited to biologics characterization, comparability, and quality documentation.
For teams evaluating external disulfide analysis support, the key question is whether the service can deliver confident connectivity evidence for the specific product format, sample matrix, and regulatory or development stage involved in the project.
What a Disulfide Bond Analysis LC-MS Service Provides
A disulfide bond analysis LC-MS service characterizes covalent cysteine linkages in proteins using bottom-up mass spectrometry workflows. Proteins are digested into peptides under non-reduced conditions that preserve native disulfide bonds, separated by liquid chromatography, and analyzed by LC-MS/MS to detect disulfide-linked peptide species.
The service identifies peptides that remain connected through disulfide bridges and assigns observed masses and fragment ions to specific cysteine pairs in the reference sequence. For biotherapeutics, this often includes interchain heavy-light disulfides, intrachain Fab and Fc domain linkages, and hinge-region connectivity in immunoglobulins.
A complete service may also include reduced and alkylated peptide mapping for sequence coverage, paired comparison between reduced and non-reduced digests, multi-enzyme strategies for difficult regions, and interpretation relative to expected disulfide architecture. Reporting depth can range from exploratory connectivity confirmation to CMC-oriented documentation with method notes and QC commentary.
Why LC-MS Is Used for Disulfide Bond Analysis
LC-MS is widely used for disulfide bond analysis because it provides peptide-resolution connectivity evidence while integrating with standard biologics characterization workflows.
LC-MS/MS can detect disulfide-linked peptides directly when native linkages are preserved during digestion and chromatography.
Tandem mass spectrometry provides fragment ion evidence that supports assignment of specific cysteine pairs when spectra are interpretable.
Bottom-up workflows integrate with peptide mapping services already used for sequence confirmation and PTM review.
Non-reduced and reduced datasets can be compared on the same product to distinguish native linkages from linear peptides and free cysteine forms.
LC-MS-based disulfide analysis supports mAbs, fusion proteins, enzymes, and other disulfide-rich biologics with adapted digestion strategies.
LC-MS disulfide analysis does not replace all higher-order structural methods, but it is one of the most practical routes to residue-level connectivity confirmation in biotherapeutic development.
Standard Service Workflow
A robust disulfide bond analysis LC-MS service follows a structured workflow from sample intake through reporting.
Sample intake and feasibility review confirm product format, expected disulfide architecture, sample type, purity, buffer composition, and project goal. Method scoping selects non-reduced digestion, reduced control mapping, enzyme strategy, and reporting depth matched to the use case. Sample preparation preserves native disulfide bonds where required and applies controlled digestion conditions to maximize recovery of informative linked peptides. LC-MS/MS analysis separates peptides and collects high-quality precursor and fragment data for disulfide-linked and linear peptides. Disulfide assignment matches observed species to expected cysteine pairs, documents ambiguous regions, and compares results across lots when comparability is in scope. Report delivery provides assigned linkages, spectral support summary, method context, and interpretation notes aligned with the project decision.
Feasibility review before method lock-in is especially important for drug product matrices and disulfide-sensitive proteins where preparation conditions strongly affect results.

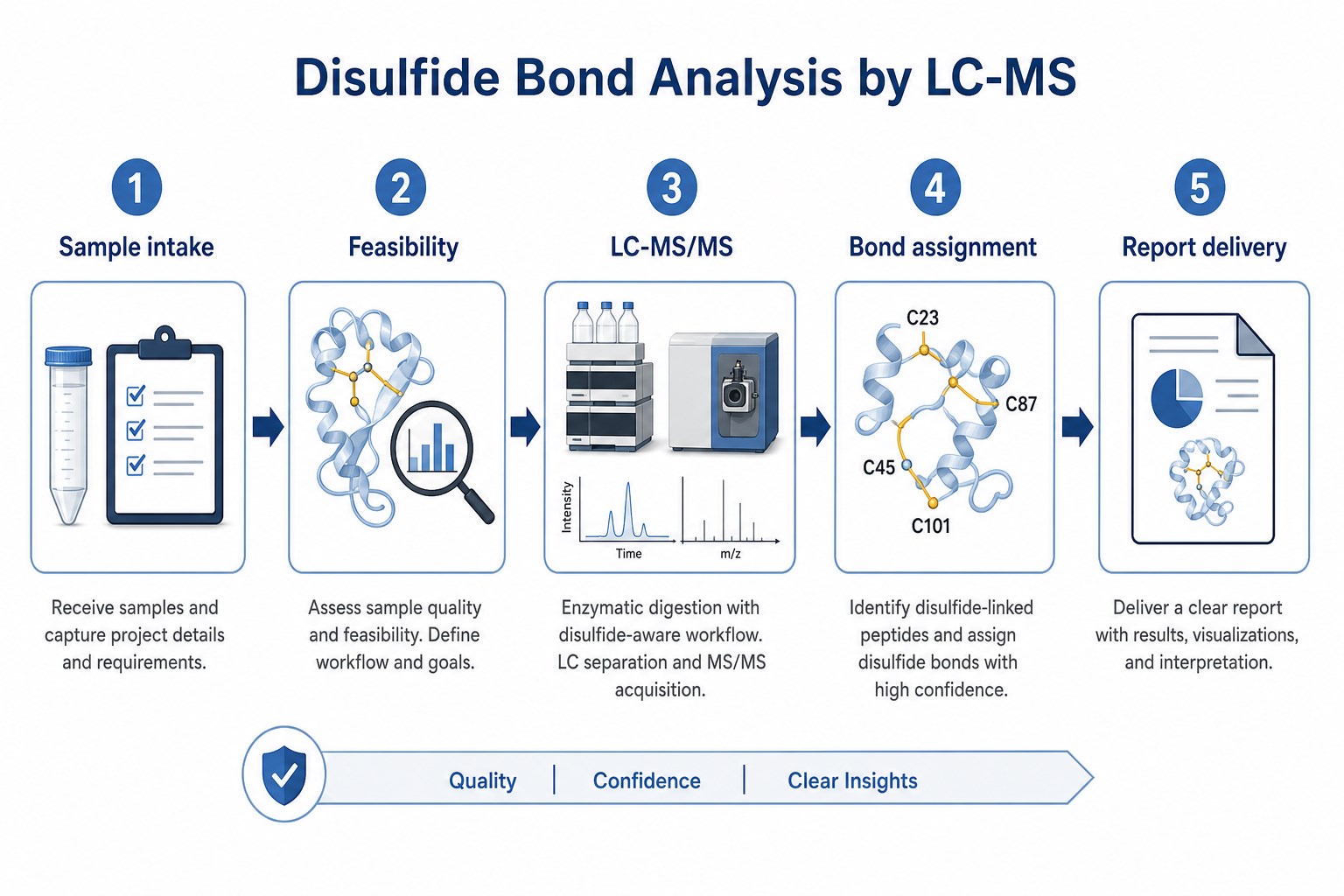

Figure 1. A disulfide bond analysis LC-MS service workflow covers sample intake, feasibility review, LC-MS/MS analysis, bond assignment, and structured reporting.
Related Services
Disulfide Bond Analysis Service
Protein Disulfide Bond Analysis Service
Biopharmaceutical Disulfide Bond Analysis Service
Comprehensive Peptide Mapping Service
Primary Structure Analysis Service
Teams planning disulfide bond analysis by LC-MS can consult MtoZ Biolabs to review sample type, expected connectivity, and the service scope best matched to characterization or comparability goals.
Core Analytical Approaches in the Service
Disulfide bond analysis LC-MS services may combine several analytical approaches depending on product complexity.
|
Analytical Approach |
What It Delivers |
Typical Use |
|---|---|---|
|
Non-reduced peptide mapping |
Detection of disulfide-linked peptides |
Direct connectivity assignment |
|
Reduced and alkylated mapping |
Linear peptide coverage |
Sequence support and comparison control |
|
Paired reduced/non-reduced analysis |
Differential peptide profiles |
Confirm native linkages and detect shifts |
|
Multi-enzyme digestion |
Broader disulfide-peptide recovery |
Difficult hinge or domain-bridged regions |
|
Expert spectral review |
Confident cysteine pair calling |
High-stakes CMC or comparability projects |
Non-reduced LC-MS provides the strongest direct evidence for disulfide position when linked peptides are recovered and confidently interpreted.

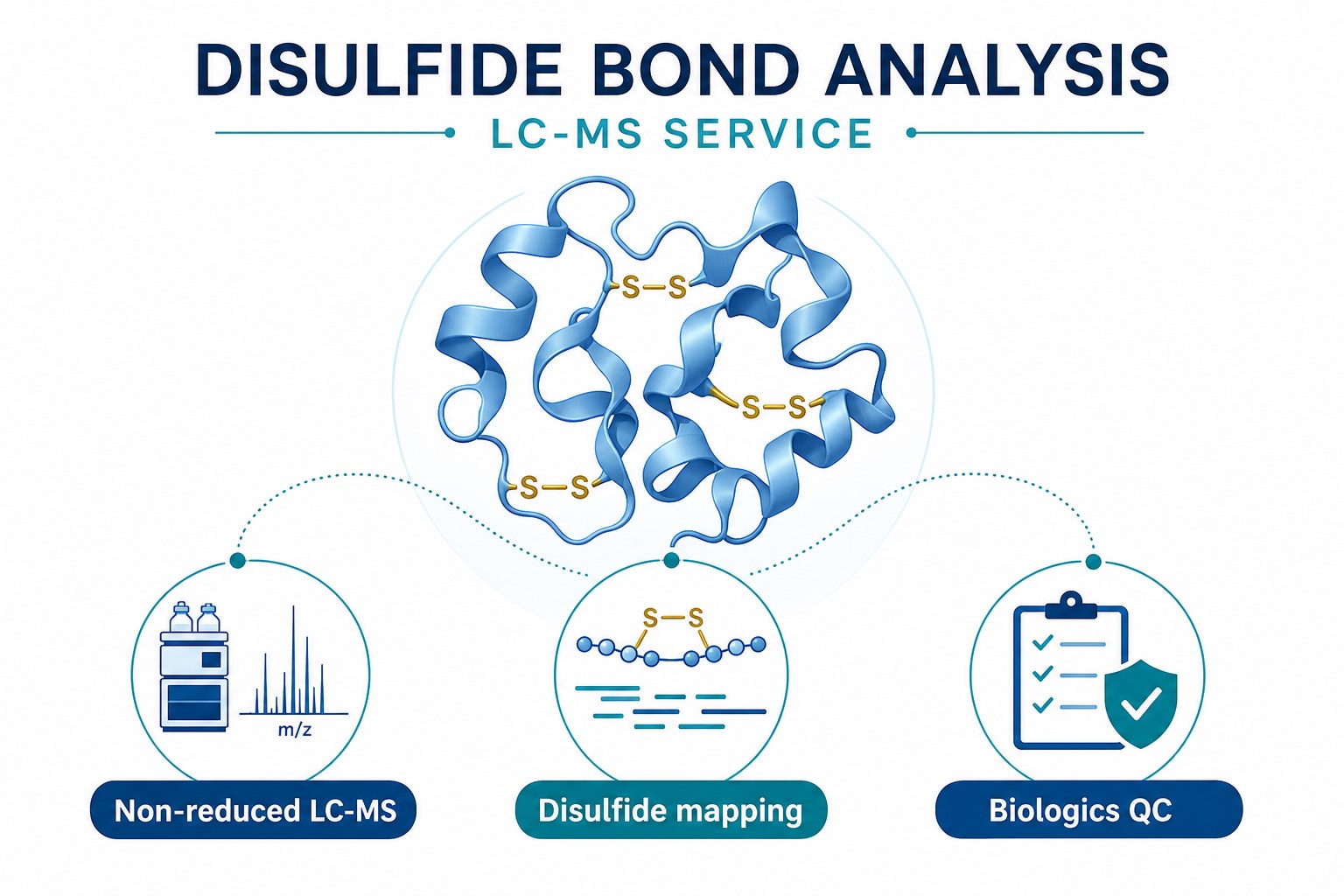

Figure 2. Disulfide bond analysis LC-MS services combine non-reduced LC-MS, disulfide mapping, and biologics-oriented QC support.
Applications Across Biologics Programs
A disulfide bond analysis LC-MS service supports multiple biotherapeutic development and quality scenarios.
Monoclonal antibody characterization.
Confirms expected heavy-light and intrachain disulfide linkages during candidate and CMC review.
Fusion protein and multi-domain product analysis.
Maps connectivity across fused domains where mispairing can disrupt function or stability.
Comparability and process change review.
Compares disulfide patterns before and after manufacturing, purification, or formulation changes.
Deviation and root-cause investigation.
Supports review when aggregation, activity loss, or mass anomalies suggest disulfide scrambling or partial reduction.
Regulatory and documentation support.
Provides peptide-level connectivity evidence for characterization packages on disulfide-rich products.

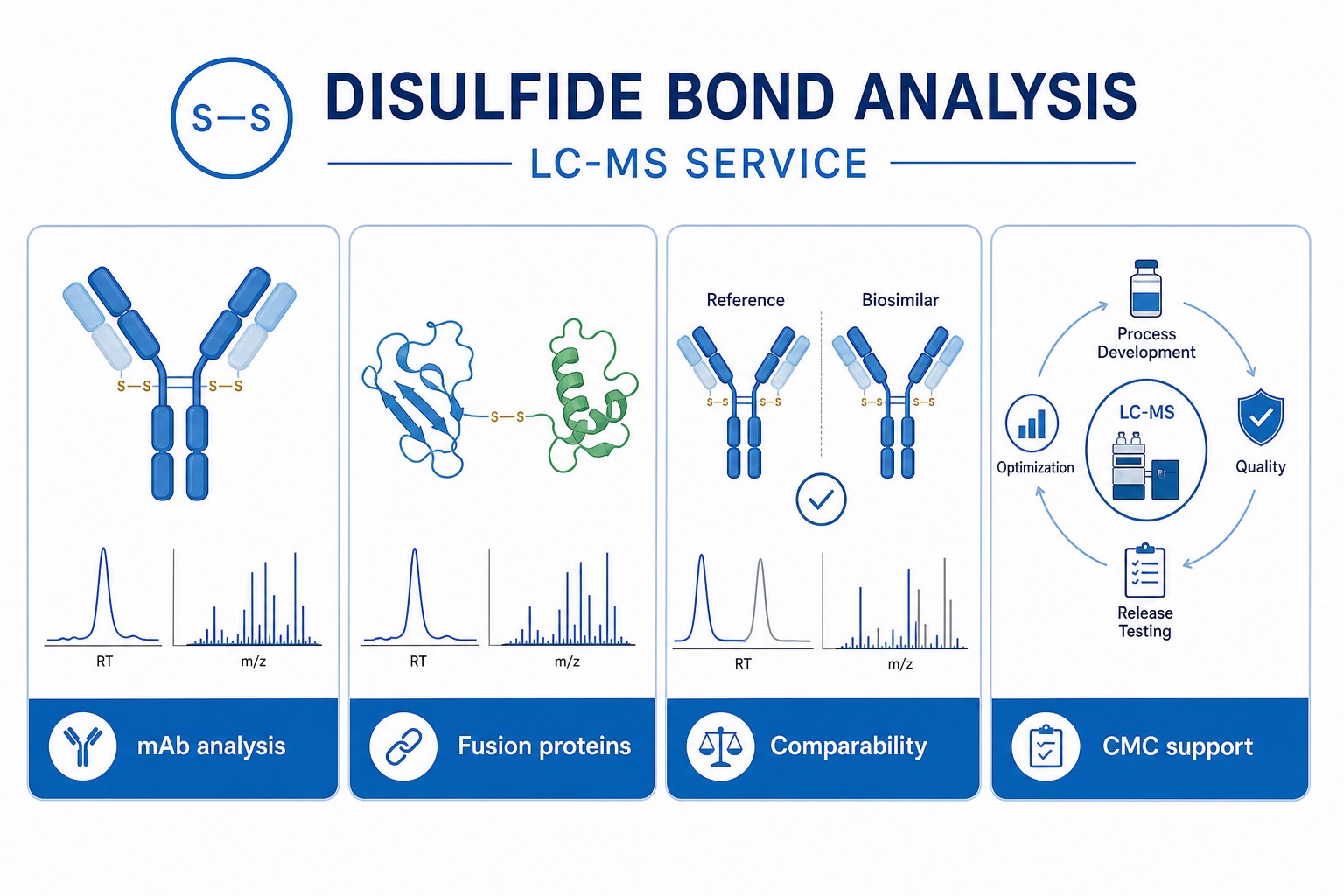

Figure 3. Disulfide bond analysis LC-MS services support mAb analysis, fusion protein review, comparability assessment, and CMC documentation.
Service Scope by Product Type
Different biologic formats require different service emphasis.
|
Product Type |
Common Service Focus |
Typical Reporting Need |
|---|---|---|
|
IgG1 monoclonal antibody |
Standard interchain and intrachain linkages |
Connectivity confirmation |
|
IgG2 monoclonal antibody |
Hinge isoforms and complex connectivity |
Isoform-aware disulfide reporting |
|
Fusion protein |
Domain junction cysteines |
Multi-domain linkage assignment |
|
Enzyme or cytokine |
Internal disulfide pairs |
Domain stability confirmation |
|
Comparability study |
Lot-to-lot linkage consistency |
Side-by-side disulfide comparison |
Service scope should be defined from product architecture rather than from a generic disulfide assay menu.
Core Service Advantages and Practical Limits
Core Service Advantages
Peptide-resolution connectivity evidence.
LC-MS/MS identifies disulfide-linked peptides corresponding to specific cysteine pairs.
Integration with peptide mapping workflows.
Disulfide analysis extends standard bottom-up characterization already used in biologics programs.
Support for comparability and investigation.
Paired reduced and non-reduced datasets help detect connectivity changes between lots.
Adaptable to multiple biologic formats.
Service workflows can be adjusted for antibodies, fusion proteins, and other disulfide-rich products.
Structured reporting for development decisions.
Deliverables can be scaled from exploratory confirmation to CMC-oriented documentation.
Practical Limits
Large linked peptides may be difficult to analyze.
Poor fragmentation or ionization can leave some bonds unsupported.
Expert review is often required.
Automated assignment alone may not be sufficient for confident disulfide calling.
Sample handling sensitivity is high.
Partial reduction or scrambling during prep can create artifacts.
Complex products may need multi-enzyme follow-up.
Single-digest workflows may not cover all disulfide-bridged regions.
Connectivity analysis is not full tertiary structure determination.
Disulfide assignment differs from complete conformational characterization.
What to Submit and How to Scope the Project
Before requesting a disulfide bond analysis LC-MS service, teams should provide:
Clear scoping helps the service provider select the right digestion strategy, LC-MS/MS depth, and review standard before analysis begins.
Expected Deliverables
A useful disulfide bond analysis LC-MS service report typically includes:
Reporting should clearly distinguish confirmed assignments from provisional or unsupported connectivity calls.
Frequently Asked Questions
1. What is a disulfide bond analysis LC-MS service?
It is an analytical service that uses liquid chromatography and tandem mass spectrometry to identify disulfide-linked peptides and assign cysteine connectivity in proteins and biotherapeutics.
2. Why is non-reduced digestion important?
Non-reduced digestion preserves native disulfide bonds so disulfide-linked peptides can be detected and assigned by LC-MS/MS.
3. Is reduced peptide mapping included?
Many services include reduced and alkylated mapping as a complementary control for sequence coverage and comparison, even though it does not alone prove native pairing.
4. Which products benefit most from this service?
Disulfide-rich biologics such as monoclonal antibodies, fusion proteins, and enzymes benefit most when connectivity affects structure, stability, or activity.
5. Can the service support comparability studies?
Yes. Paired analysis of reference and test lots can compare disulfide patterns when connectivity is a relevant quality attribute.
6. Does disulfide LC-MS analysis replace peptide mapping?
No. It complements peptide mapping by adding connectivity evidence. Many projects use both reduced sequence mapping and non-reduced disulfide analysis together.
Conclusion
A disulfide bond analysis LC-MS service provides peptide-level evidence of cysteine connectivity in biotherapeutics through non-reduced digestion, LC-MS/MS detection of disulfide-linked peptides, and expert assignment against expected product architecture. For monoclonal antibodies, fusion proteins, and other disulfide-rich products, the service supports identity confirmation, comparability review, deviation investigation, and CMC documentation when reporting depth matches the project stage.
Successful projects define expected disulfide architecture early, submit well-documented samples, and select service scope matched to product complexity rather than a one-size-fits-all digest protocol. Teams planning disulfide bond analysis by LC-MS can contact MtoZ Biolabs to review sample status, connectivity goals, and the service package best suited to their biologics program.
