Data-independent acquisition (DIA) is a mass spectrometry strategy that fragments precursors in scheduled m/z windows and recovers peptide quantities from extracted fragment-ion chromatograms, rather than only from intensity-triggered precursor picks used in data-dependent acquisition (DDA). SWATH-MS (sequential window acquisition of all theoretical fragment ion spectra) is one influential DIA implementation: it cycles through consecutive precursor windows and typically quantifies peptides by targeted extraction against a spectral library (Gillet et al. 2012). DIA and SWATH therefore answer a relative discovery claim across independently injected samples. They are not a labeling chemistry, not proof of absolute protein concentration, and not a guarantee that every low-abundance peptide will be cleanly measured.

Researchers who already have defined samples, comparison groups, or a specific project objective can also review the MtoZ Biolabs Deep DIA Proteomics Service for project-specific feasibility and analysis planning.

DIA Principle: Scheduled Windows Instead of Real-Time Precursor Picks

In DDA, the instrument selects intense precursors in real time for fragmentation. Stochastic sampling is a major source of missing values in unlabeled discovery matrices. In DIA, the precursor range is divided into isolation windows that are fragmented on a fixed schedule. Fragment evidence is recorded across the window set in every cycle, so later analysis can extract peptide transitions even when a precursor was never chosen as a top peak.

The quantitative object in many DIA workflows is a fragment-ion chromatogram. Window width, cycle time, and chromatography set the interference-versus-coverage trade-off. Narrower windows can reduce chimeric spectra but demand higher MS/MS speed. Wider windows increase multiplexing and can raise fragment overlap. Those settings belong in the methods record with the protein table.

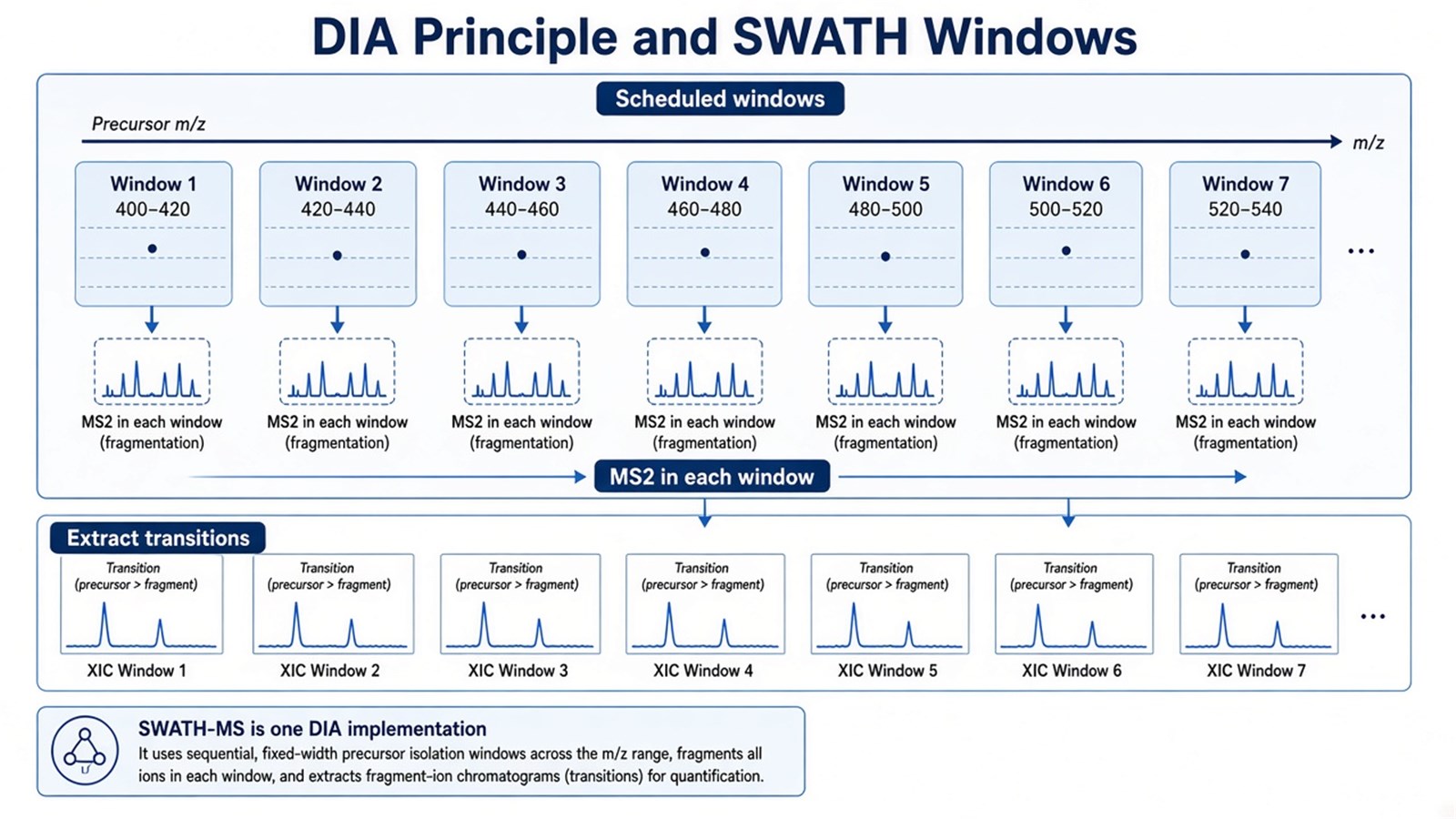

Figure 1. DIA fragments scheduled m/z windows and extracts fragment chromatograms; SWATH-MS is one sequential-window implementation of that principle.

DIA names how fragmentation is scheduled. It does not mean labels were unused, and SWATH is not the only DIA route.

What SWATH Mass Spectrometry Specifically Means

SWATH-MS applies the DIA principle as sequential precursor isolation windows and recovers peptide quantities by matching extracted transitions to a spectral library that stores peptide identity, fragment ions, and retention-time information (Gillet et al. 2012). The library often comes from prior DDA of matched or related samples, although public or project libraries may be used when provenance is documented.

SWATH should be read as a member of the DIA family, not as a separate omics category and not as a synonym for every modern library-free DIA search. Naming SWATH does not specify the instrument vendor, exact window scheme, gradient, or whether the digest was labeled. In unlabeled discovery practice, SWATH-style acquisition is commonly paired with label-free sample handling, but labeling and acquisition remain separate decisions.

Workflow and Quantification Strategy

A typical SWATH-style quantification path has four analysis-critical stages.

1. Spectral library construction or selection

Library coverage and quality bound which peptides can be extracted. Libraries built from unmatched tissues, stale batches, or incomplete fractionation transfer those limits into the DIA matrix.

2. Sequential-window DIA acquisition

Samples are injected independently. The method cycles through the declared windows so that MS2 evidence is collected across the precursor range under one chromatographic plan.

3. Targeted extraction and scoring

Software such as OpenSWATH, Spectronaut, Skyline, or related tools aligns runs, extracts transition chromatograms, and applies false discovery rate (FDR) control. Retention-time calibration and interference filtering decide which peak groups remain.

4. Protein summarization and relative comparison

Peptide quantities are summarized to proteins. Normalization and differential testing follow only after the extraction and QC rules are declared. Ordinary SWATH or DIA intensities support relative change of the same protein across comparable runs. Absolute amount needs matched standards and a calibration model.

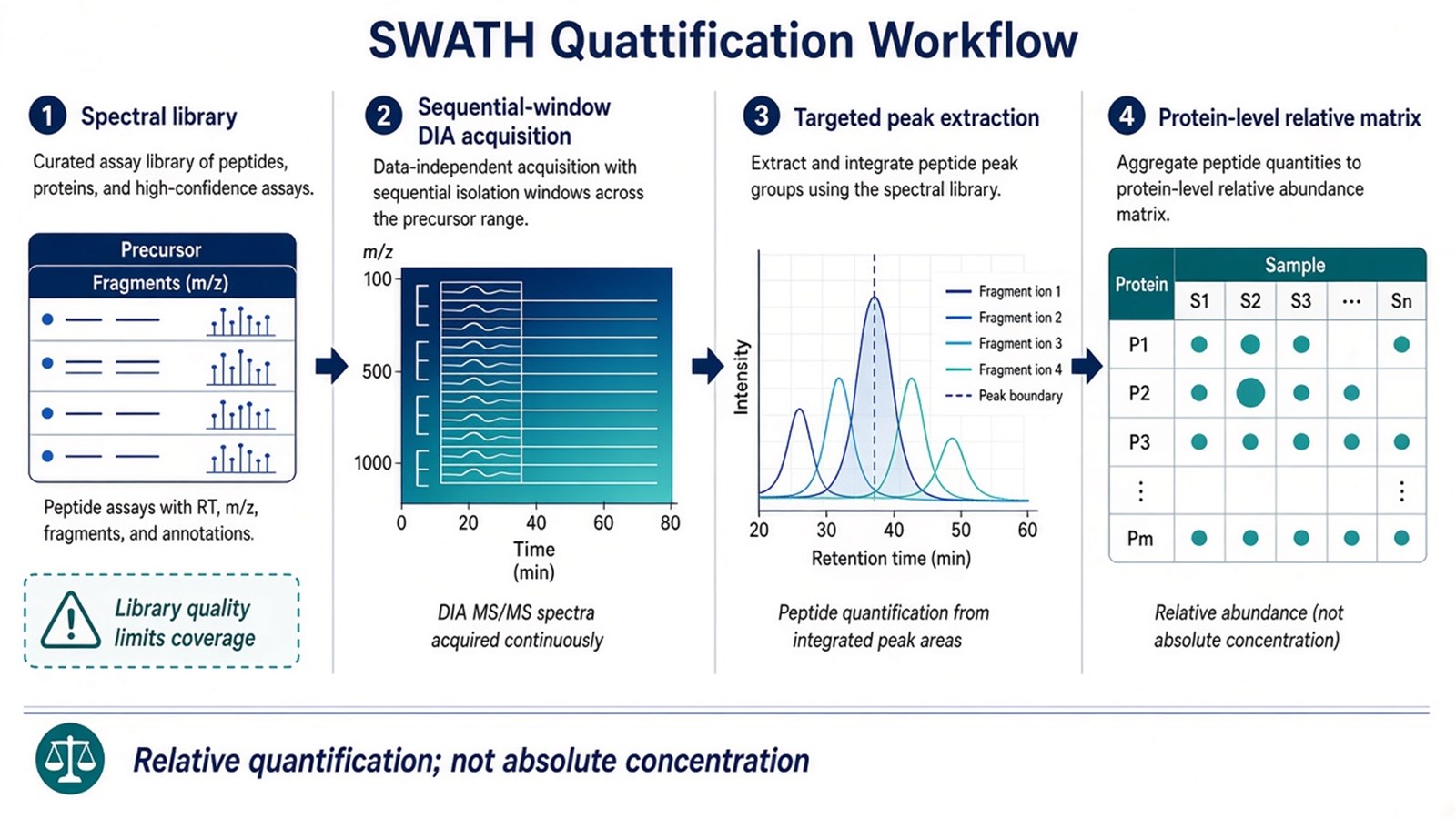

Figure 2. SWATH-style quantification typically depends on a spectral library, sequential-window acquisition, and targeted peak extraction before a relative protein matrix is interpreted.

Library-free or direct-DIA search strategies are alternative quantification routes inside the broader DIA family. They remove library dependence but still require FDR control and interference review. Researchers comparing analysis failure modes can refer to Common Pitfalls in DIA Proteomics Data Analysis and How to Avoid Them.

Judgment Criteria: When SWATH or Other DIA Fits

Study need	SWATH-style or other DIA often fits	Reassess before committing
Comparison structure	Relative change across independently injected samples	Absolute concentration without standards
Completeness	Larger cohorts where DDA missingness limits statistics	Very small pilots where DDA depth is already enough
Extraction plan	Library provenance can be declared, or library-free search is planned	No library and no library-free workflow defined
Sample handling	Digests remain unlabeled, or labeling is separately justified	Closed multiplex contrasts that require isobaric labeling
Follow-up	Discovery matrix that may later feed a short targeted list	Immediate need for a frozen peptide panel only

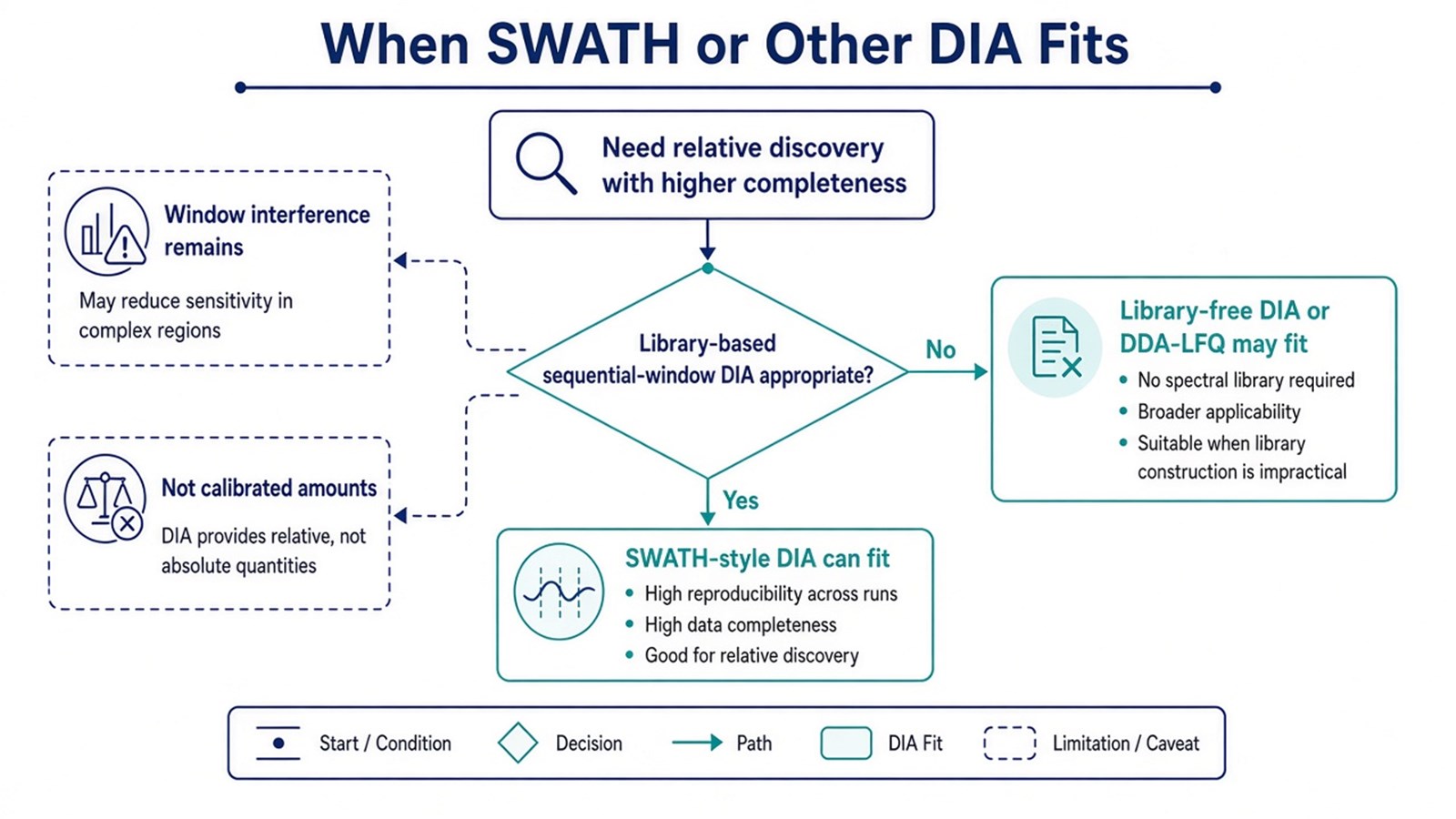

Figure 3. Choose SWATH-style DIA when sequential-window, library-based extraction fits the cohort; otherwise consider library-free DIA or unlabeled DDA-LFQ.

For platform-specific unlabeled DIA framing beyond classical SWATH library workflows, researchers can also review Astral DIA: Accurate and Efficient Quantitative Proteomics Solution.

Limits and Application Boundaries

Limits that remain after choosing SWATH or DIA

Window interference and chimeric spectra can still bias quantities. Library gaps create silent missingness that looks like biological absence. Cross-batch comparison needs controlled chromatography and a declared normalization plan. Retrospective re-mining of DIA files is possible only within the information actually recorded and the library or search space applied later. Multi-omics overlays are useful only when sample identity and processing batch can be aligned.

Application contexts

Unlabeled DIA and SWATH-style workflows are commonly used for treatment screens, tissue-state comparisons, biomarker discovery cohorts, and multi-condition studies that need a more complete relative matrix than stochastic DDA sampling provides. Pathway enrichment on a candidate list reflects overrepresentation relative to a quantified background. It does not prove pathway activity. Diagnostic cutoffs and clinical decision rules sit outside ordinary discovery DIA claims.

Once the relative discovery claim, windowing plan, and library or library-free strategy are defined, the project can be evaluated as a DIA study with an explicit SWATH-style or alternative extraction path. Researchers can review the MtoZ Biolabs Deep DIA Proteomics Service for sample evaluation, feasibility assessment, and workflow planning.

Frequently Asked Questions

1. What is the difference between DIA and SWATH?

DIA is the acquisition class that fragments scheduled precursor windows. SWATH-MS is one sequential-window DIA implementation that historically emphasizes library-based targeted extraction.

2. Is SWATH the same as label-free quantification?

No. Label-free means isotopic or isobaric labels were not used. SWATH or DIA names how the instrument schedules fragmentation. Unlabeled digests are often acquired as DIA, but the two decisions remain separate.

3. Does SWATH always need a DDA spectral library?

Classical SWATH-style quantification usually uses a library. Library-free DIA search is an alternative route when FDR and interference control are declared.

4. Can SWATH report absolute protein concentration?

Not from ordinary extracted intensities. Absolute or copy-number claims need matched standards and a calibration model.

5. Does SWATH remove missing values completely?

No. It can improve completeness relative to stochastic DDA sampling, but low signal, interference, and library or search limits still create missing cells.

Reference

1. L.C. Gillet, P. Navarro, S. Tate, H. Rost, N. Selevsek, L. Reiter, R. Bonner, R. Aebersold (2012). Targeted data extraction of the MS/MS spectra generated by data-independent acquisition: a new concept for consistent and accurate proteome analysis. Mol. Cell. Proteomics, 11, O111.016717. https://doi.org/10.1074/mcp.O111.016717
