SWATH-MS vs DDA-MS: Which Technique Is Suitable for Your Research?

In proteomics research, selecting an appropriate mass spectrometry acquisition method is crucial for obtaining high-quality data. Among the most prevalent approaches are SWATH-MS (Sequential Window Acquisition of all Theoretical fragment ion spectra) and DDA-MS (Data-Dependent Acquisition), each offering distinct advantages. A clear understanding of their underlying principles, application contexts, and technical limitations can guide researchers in developing sound experimental strategies.

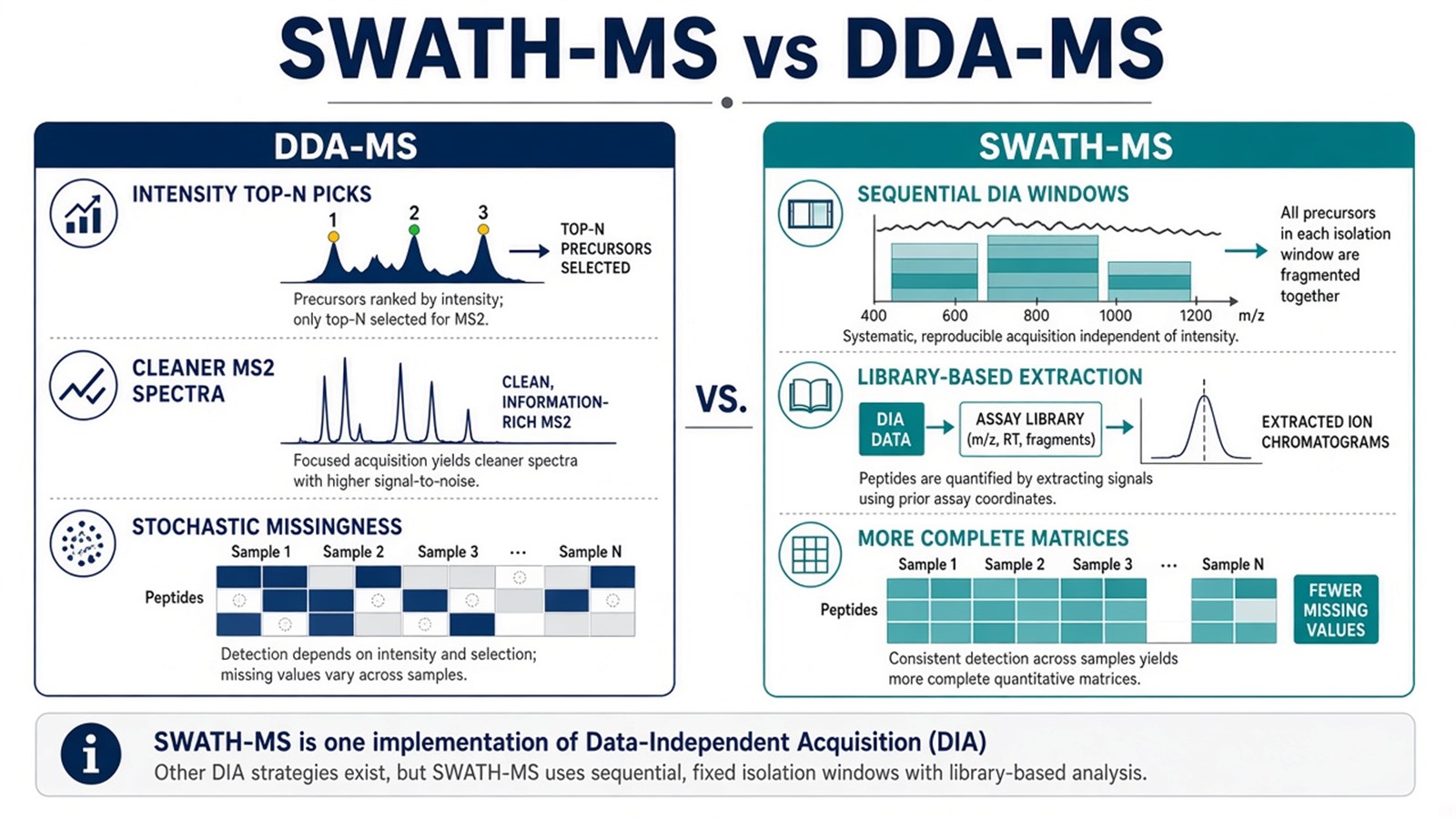

What Is DDA-MS?

DDA (Data-Dependent Acquisition) is one of the most commonly employed strategies in mass spectrometry. It operates by performing an initial MS1 scan, followed by the selection of the most intense precursor ions—based on a predefined intensity threshold—for subsequent MS/MS fragmentation analysis.

✅ Advantages:

• High-quality MS/MS spectra: Targeting high-abundance ions enables the acquisition of high-resolution, high signal-to-noise fragment spectra.

• Established database support: Compatible with widely used tools such as Mascot, SEQUEST, and MaxQuant.

• Ideal for novel protein discovery: Particularly effective in exploratory studies.



⚠️ Limitations:

• Acquisition bias: Low-abundance proteins and minor ions in complex samples may be systematically underrepresented.

• Limited reproducibility: Due to variability in precursor ion selection across runs, consistency between biological replicates is often compromised.

• Extensive missing data: Incomplete quantification can undermine the robustness of downstream analyses.



What Is SWATH-MS?

SWATH-MS is a data acquisition technique based on the Data-Independent Acquisition (DIA) strategy. It segments the m/z range into consecutive isolation windows (typically 20–25 Da), within which all ions are concurrently fragmented and recorded.

✅ Advantages:

• High reproducibility: The comprehensive scanning approach ensures consistent data across runs, facilitating inter-experimental and cross-omics comparisons.

• Enhanced detection of low-abundance proteins: By circumventing intensity-based precursor selection, detection sensitivity is markedly improved.

• Suitable for large-scale quantitative analyses: Well-suited for biomarker discovery and multi-batch sample investigations.



⚠️ Limitations:

• Significant spectral complexity: Fragment ions originate from multiple precursors within each window, complicating data interpretation.

• Heavy reliance on spectral libraries: Accurate analysis depends on access to high-quality and comprehensive reference libraries.

• Method development is technically demanding: Optimization involves multiple parameters, including window configuration and reference standard selection.

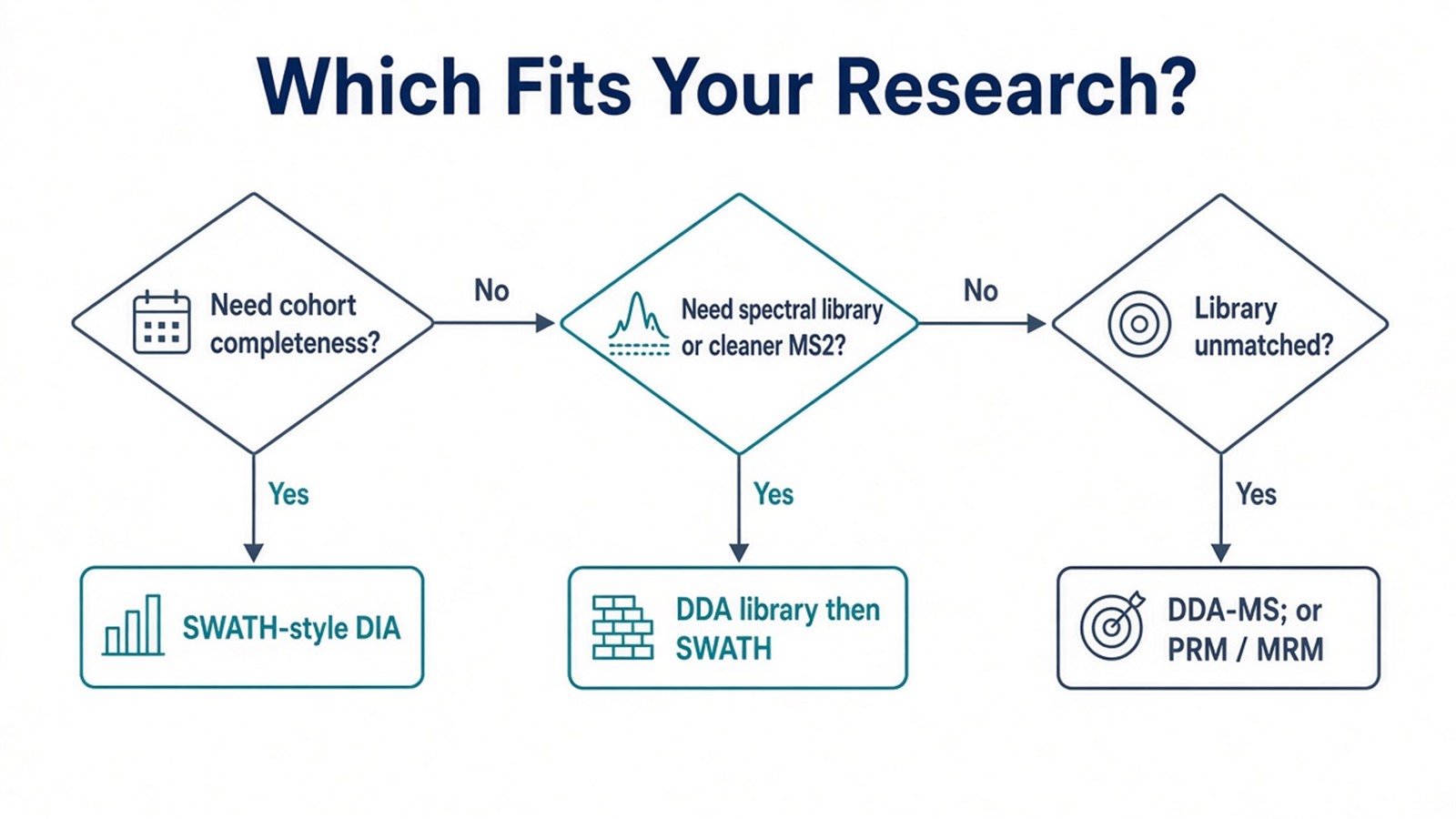

Sample Types and Research Objectives: How Should You Decide?

1. Exploratory vs. Confirmatory Research

• If the objective is to identify novel proteins or elucidate new biological pathways, data-dependent acquisition mass spectrometry (DDA-MS) is generally preferred due to its superior sensitivity for protein discovery.

• In contrast, when the focus is on large-scale, highly reproducible quantification of known proteins—such as in candidate biomarker validation—SWATH-MS offers distinct advantages in terms of consistency and throughput.



2. Sample Complexity

• For low-complexity samples, such as purified proteins or established cell lines, DDA-MS typically provides sufficient analytical depth.

• However, for complex matrices including tissue specimens, body fluids, or samples with limited input material, SWATH-MS enables more comprehensive and consistent quantitative coverage across the proteome.



3. Budget and Time Considerations

• DDA-MS features a shorter setup time and faster initial deployment, making it suitable for rapid assessments and method development.

• SWATH-MS, while requiring an initial investment to generate a high-quality spectral library, becomes highly efficient for processing large sample cohorts once the library is established, making it ideal for longitudinal or large-scale studies.



※ Summary: Optimal Technique Selection Depends on Application Fit

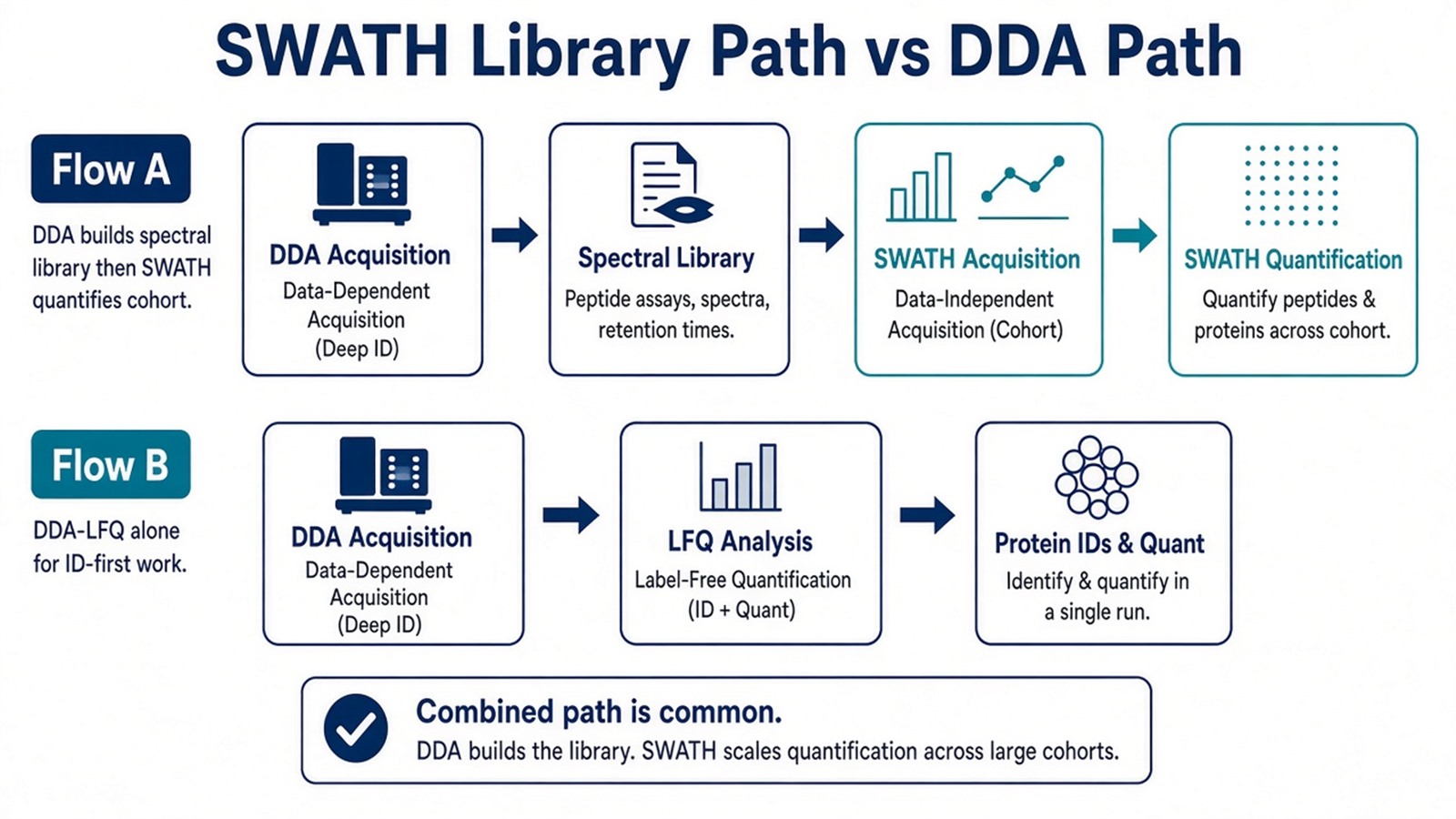

Selecting the appropriate acquisition strategy is essential, whether for basic biological research or translational applications. SWATH-MS is increasingly recognized as a standard platform for reproducible and high-throughput protein quantification, while DDA-MS continues to serve as an indispensable tool for exploratory analysis. A combined strategy often yields the best results: using DDA-MS in the initial phase for spectral library construction, followed by SWATH-MS for large-scale quantification. MtoZ Biolabs offers comprehensive SWATH-based quantitative proteomics services. For detailed guidance on proteomics study design, we welcome you to contact us for complimentary project consultation and technical support.
