How PhIP-Seq Supports Candidate Autoantigen Discovery

Introduction

Candidate autoantigen discovery often stalls when screening is limited to predefined antigen panels. A rheumatology cohort may show heterogeneous serology, yet only a few known targets are tested in routine assays. A neurology program may suspect compartment-specific reactivity but lack a scalable way to scan many peptide regions in CSF. A translational team may need quantitative case-control evidence across hundreds of peptide targets before committing to protein-level validation.

PhIP-Seq (phage immunoprecipitation sequencing) supports candidate autoantigen discovery by linking phage-displayed peptide libraries, antibody immunoprecipitation, and next-generation sequencing into one parallel screening workflow. Sample antibodies bind displayed peptides, captured phage are sequenced, and enrichment relative to input library representation reveals peptide targets that merit follow-up. The output is a discovery-stage candidate list rather than a confirmed autoantigen report.

This article explains how PhIP-Seq supports autoantigen discovery, which analytical layers convert enrichment into candidates, and how discovery output connects to validation planning.

What Candidate Autoantigen Discovery Requires

Candidate autoantigen discovery needs more than a positive immunoassay on a single antigen. It requires a structured path from broad screening to a ranked peptide shortlist that can be tested orthogonally.

Discovery programs typically need breadth across many peptide targets so unknown reactivity is not missed by panel design. They need quantitative comparison across case and control samples so disease-associated enrichment can be separated from background. They need regional mapping so enriched peptides can be linked to protein domains or sequence windows. They need optional PTM variant coverage when modified neo-epitopes are part of the hypothesis. They need deliverables that validation teams can use directly, such as tiered candidate lists and mapping summaries.

PhIP-Seq addresses these needs at peptide scale. It does not replace clinical diagnosis or protein-level autoantigen confirmation, but it provides the first scalable discovery layer that many autoimmune and neuroimmunology projects lack.

How PhIP-Seq Generates Discovery Candidates

PhIP-Seq generates candidate autoantigens through a linked sequence of library screening, enrichment measurement, and annotation.

Sample intake defines whether serum, plasma, or CSF is used and whether case-control, longitudinal, or paired-matrix design is required. Library incubation exposes sample antibodies to a phage display peptide library under conditions matched to the discovery goal. Immunoprecipitation captures antibody-bound phage using protein A/G beads or an equivalent strategy with defined wash stringency. Sequencing quantifies peptide-encoding DNA in captured and input libraries. Enrichment analysis compares read counts across samples, normalizes against library representation, and ranks peptides enriched above control thresholds. Annotation maps enriched peptides to source proteins, tiled regions, and modification state when PTM variant libraries are used.

Each enriched peptide is a candidate autoantigen region within the peptide space represented in the library. Confirmation that the full-length protein is the in vivo autoantigen requires orthogonal follow-up.

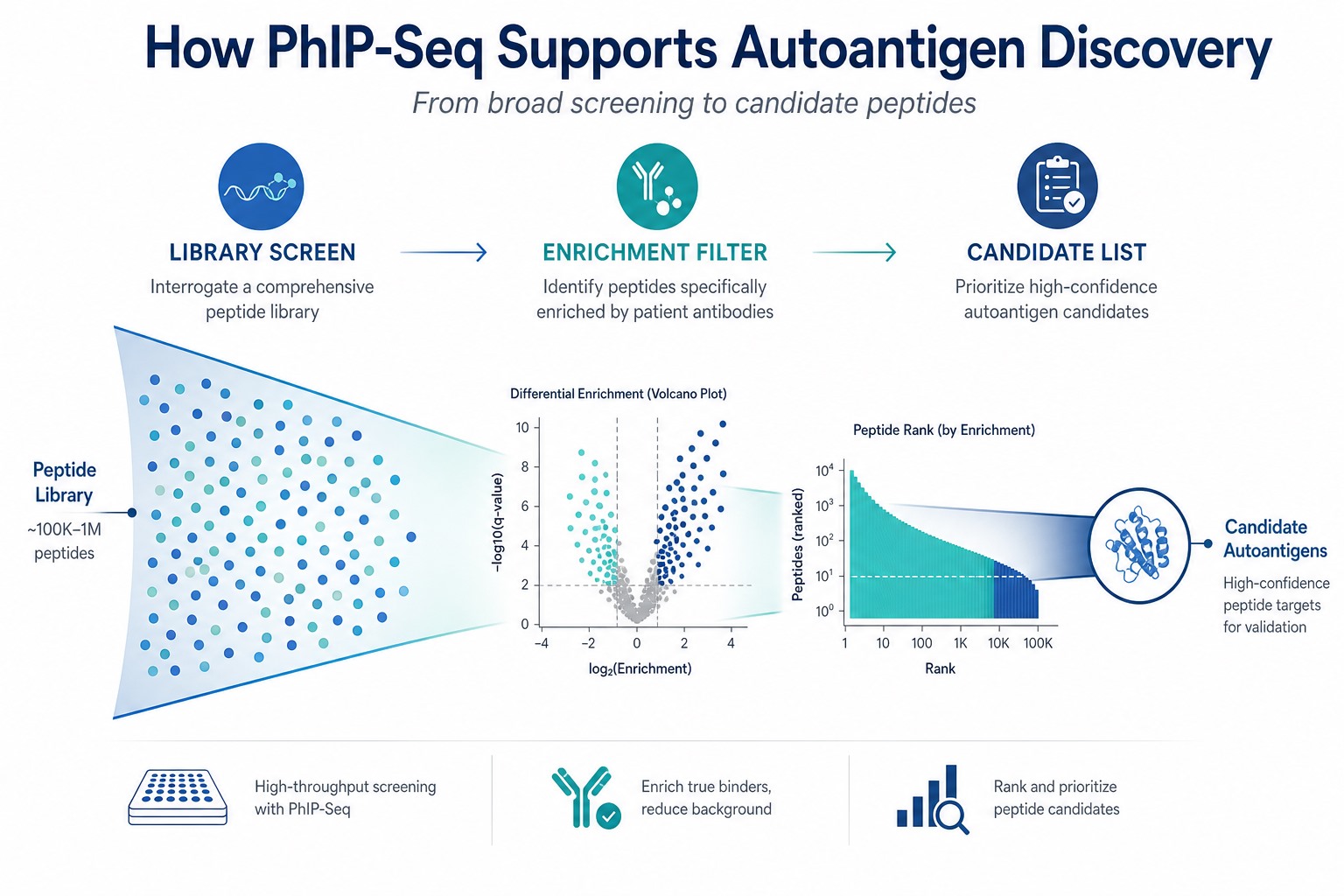

Figure 1. PhIP-Seq supports autoantigen discovery by moving from broad library screening through enrichment filtering to a ranked candidate peptide list.

Discovery Layers That PhIP-Seq Provides

PhIP-Seq supports discovery through four complementary analytical layers.

Library coverage defines what can be found. Proteome-wide or tiled libraries scan many proteins and localize reactivity to sequence windows. Focused libraries concentrate on disease-relevant antigen sets when the goal is targeted discovery rather than open screening. Modified peptide libraries include PTM variant clones paired with unmodified controls when citrullinated, phosphorylated, or other defined forms are part of the hypothesis.

Enrichment signal defines what ranks as a candidate. Fold change, case-control contrast, and replicate consistency separate provisional hits from background-driven enrichment. Input normalization reduces clone abundance bias so high-frequency library peptides do not dominate the candidate list without biological support.

Candidate mapping defines what each hit means biologically. Peptide-to-protein annotation, domain localization, and modified versus unmodified comparison convert raw enrichment into interpretable autoantigen regions.

Discovery output defines what moves to validation. Tiered candidate lists, mapping summaries, and control documentation give validation teams a structured starting point rather than an unstructured spreadsheet.

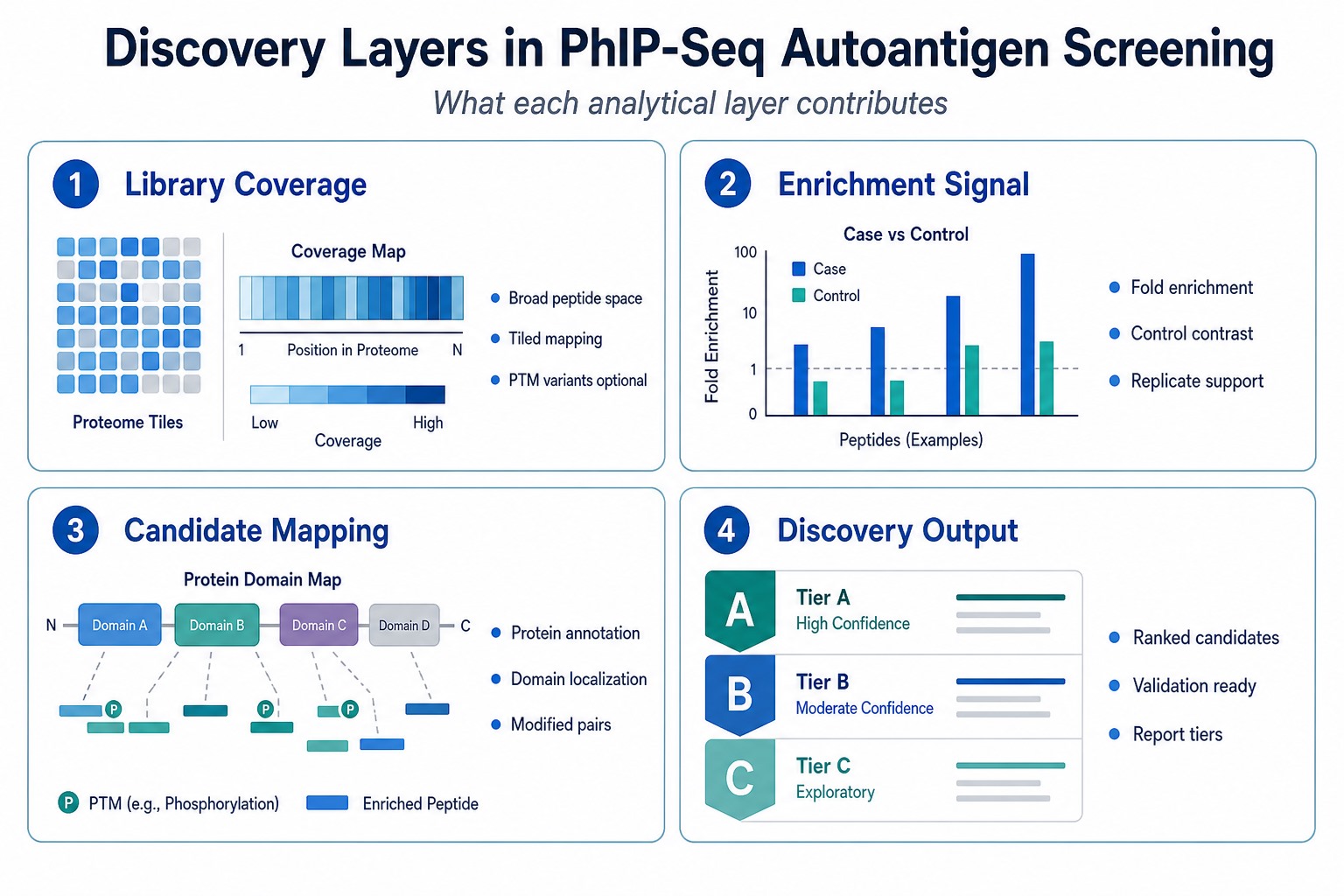

Figure 2. PhIP-Seq discovery support spans library coverage, enrichment signal, candidate mapping, and tiered output for validation planning.

Related Services

PhIP-Seq Antibody Analysis Service

Identification of Peptide Biomarkers Service

Antibody Epitope Mapping Analysis Service

Peptide Array-Based Epitope Mapping Service

PTM Analysis Service

Researchers planning autoantigen discovery can consult MtoZ Biolabs to review library scope, cohort design, and the analysis workflow best matched to candidate generation goals.

Library Design Choices for Discovery

Discovery output depends strongly on library design because the library defines the detectable peptide space.

Proteome-wide or tiled libraries support unbiased discovery across many proteins and are suited to autoimmune cohorts where target antigens are unknown. Focused disease libraries concentrate on antigens or pathways linked to a specific condition when the goal is efficient screening within a defined hypothesis space. Modified peptide libraries support neo-epitope discovery when PTM forms must be tested alongside unmodified controls. Custom tiled libraries can refine regional mapping around previously reported autoantigen regions.

Library choice should be fixed before samples are run. A standard linear peptide library cannot report conformational or glycan-dependent epitopes that are absent from library design. Modified discovery requires that relevant PTM variants are encoded before screening begins.

Case-Control and Cohort Design for Discovery

PhIP-Seq discovery quality improves when cohort design matches the biological question.

Case-control comparison strengthens specificity when matched healthy or disease-irrelevant controls are included. Longitudinal sampling supports treatment or progression studies when the same library framework is applied across time points. Replicate runs reduce the risk that unstable enrichment is treated as a discovery hit. Matrix-specific thresholds are important when CSF is used because total immunoglobulin abundance and sample volume differ from serum or plasma. Bead-only, no-antibody, and healthy donor controls help separate nonspecific immunoprecipitation from disease-associated enrichment.

Discovery should be interpreted as cohort-level candidate generation. A peptide enriched in one sample without control contrast or replicate support remains provisional until filtering and review are complete.

From Enrichment Hits to a Candidate Shortlist

Raw enrichment lists are not yet discovery deliverables. PhIP-Seq supports candidate autoantigen discovery most effectively when enrichment is filtered, ranked, and tiered before validation begins.

Filtering removes peptides with weak control contrast, high background in bead-only or healthy samples, or inconsistent replicate signal. Ranking integrates fold change with case specificity, biological mapping, and modified peptide context when PTM libraries are used. Tiering assigns candidates to validation-ready, provisional, or exploratory groups based on signal quality and follow-up feasibility.

This step converts sequencing output into a decision-ready candidate autoantigen list. Programs that skip structured filtering often overinvest in weak hits or delay validation because the first output was not organized for phase 2 testing.

Discovery Support by Study Goal

Different discovery goals favor different PhIP-Seq emphasis.

Discovery Goal	Library Emphasis	Key Discovery Output
Unbiased autoantigen discovery	Proteome-wide or tiled library	Ranked enriched peptide list with protein mapping
Modified neo-epitope discovery	PTM variant library with paired controls	Modified peptide enrichment profile
Neurology or CSF-focused discovery	Matrix-adjusted tiled or focused library	Compartment-relevant candidate set
Longitudinal reactivity tracking	Same library across time points	Time-point comparison table
Validation handoff	Shortlist from prior discovery run	Tier A peptide set for array or ELISA

Library, matrix, and control choices should align with the discovery decision the project must support.

Core Technical Advantages and Current Limitations

Core Technical Advantages

Broad parallel screening at peptide scale.

Many peptide targets can be screened in one workflow instead of repeated single-antigen assays.

Quantitative enrichment for cohort comparison.

Read counts support case-control, longitudinal, and ranking logic when controls are well designed.

Regional mapping through tiled libraries.

Reactivity can be localized to protein domains or sequence windows before protein validation.

PTM variant discovery when libraries include modified peptides.

Modified and unmodified clone pairs support defined neo-epitope candidate generation.

Structured input for validation pipelines.

Enriched peptides provide a practical starting point for array, ELISA, or mass spectrometry-supported confirmation.

Current Limitations

Library-defined detection boundary.

Only peptides represented in the library can generate discovery signal.

Linear display bias.

Standard peptide display does not fully reconstruct all conformational or glycan-dependent epitopes.

Enrichment is not autoantigen confirmation.

Peptide binding under library conditions must be validated independently.

Background and matrix sensitivity.

Nonspecific binding and matrix contamination can distort discovery profiles if QC is weak.

Modified epitope coverage depends on library design.

Untargeted PTM discovery is not inherent to standard peptide libraries.

Applications in Autoantigen Discovery Programs

PhIP-Seq supports several discovery applications across autoimmune and serology research.

Autoimmune discovery compares enrichment across patient and control sera to identify candidate antigen regions before protein-level testing. Modified epitope programs screen citrullinated, phosphorylated, or other PTM peptide sets in diseases where neo-epitopes are hypothesized. Neurology and neuroimmunology studies profile CSF or paired blood and CSF samples for compartment-relevant candidate generation. Biomarker discovery converts large enrichment lists into peptide targets suitable for follow-up assay development. Validation pipelines use tiered discovery output to plan peptide array, ELISA, or recombinant domain confirmation.

Application fit still depends on cohort design, library composition, and whether the discovery question is encoded in library scope before screening begins.

From Discovery to Validation

A complete autoantigen discovery project usually moves through two linked phases.

Phase 1 discovery uses PhIP-Seq to generate filtered enrichment tables, mapping summaries, and a tiered candidate list. Phase 2 validation uses orthogonal assays to test whether shortlisted peptides represent true autoantibody reactivity. Peptide array confirmation, ELISA with synthesized peptides, recombinant domain binding, and PTM-specific follow-up are common validation paths. Independent cohort testing should support Tier A candidates before they are reported as confirmed autoantigen-associated reactivity.

Reporting should clearly separate confirmed, provisional, and exploratory peptide targets so discovery and validation evidence are not conflated.



Figure 3. Candidate autoantigen discovery with PhIP-Seq connects to prioritization and orthogonal validation through a structured two-phase pathway.

Frequently Asked Questions

1. How does PhIP-Seq support candidate autoantigen discovery?

It screens many peptide targets in parallel, measures enrichment relative to input and controls, maps hits to proteins or regions, and produces a tiered candidate list for validation.

2. What library type is best for unbiased discovery?

Proteome-wide or tiled peptide libraries are commonly used when target antigens are unknown and broad screening is required.

3. Can PhIP-Seq discover modified autoantigen candidates?

Yes, when modified peptide variants are included in the library and compared against appropriate unmodified controls.

4. Does enrichment alone confirm an autoantigen?

No. Enrichment supports candidate generation. Orthogonal assays and independent cohort testing are needed for confirmation.

5. What should happen after the discovery run?

Filter and rank enriched peptides, review biological mapping, assign validation tiers, and move Tier A candidates into array, ELISA, or protein-level follow-up.

Conclusion

PhIP-Seq supports candidate autoantigen discovery by converting serum, plasma, or CSF samples into quantitative peptide-level enrichment profiles across large libraries. The method is strong for parallel screening, cohort comparison, regional mapping, and modified epitope candidate generation when library design and controls match the study question. Discovery output remains provisional until candidates are filtered, reviewed, and validated by orthogonal assays.

Programs that define library scope, cohort design, and reporting tiers before screening obtain more actionable candidate lists and move more efficiently into validation. Researchers planning PhIP-Seq for autoantigen discovery can contact MtoZ Biolabs to review library options, control strategy, and the analysis workflow suited to their project. For teams advancing from discovery hits to confirmed epitope or PTM evidence, MtoZ Biolabs can also help connect enrichment output with epitope mapping and validation follow-up.
