In proteomics research, sample complexity is a critical factor influencing data quality. Biological specimens such as tissue, body fluids, and archived clinical materials typically exhibit a wide diversity of proteins, a broad dynamic range of abundance, and the presence of numerous interfering substances—factors that pose significant challenges for protein identification and quantification. Although Data-Independent Acquisition (DIA) technology offers high reproducibility and throughput, it often suffers from reduced identification rates and limited coverage of low-abundance proteins in complex matrices. In recent years, the emergence of four-dimensional DIA (4D-DIA) has provided a novel approach to address these limitations. By incorporating ion mobility as a fourth analytical dimension, this technique significantly enhances spectral resolution and peptide identification efficiency under complex conditions. Foundational acquisition differences between DIA and DDA are summarized in DIA vs DDA Proteomics: Acquisition Strategy, Quantification, and Method Selection.

4D-DIA: Four-Dimensional Mass Spectrometry Enabled by Ion Mobility

DIA is a full-scan mass spectrometry strategy that overcomes the limitations of random precursor selection inherent in Data-Dependent Acquisition (DDA). However, in complex samples, co-elution of multiple peptides within the same acquisition window often leads to overlapping spectra, impairing accurate identification. 4D-DIA builds upon the conventional three dimensions—retention time, mass-to-charge ratio (m/z), and ion intensity—by introducing ion mobility as a physical separation dimension. This approach leverages an electric field to separate charged peptides within a high-pressure gas stream; peptides with differing shapes and conformations exhibit distinct mobility values, allowing for finer resolution than traditional chromatographic separation. Instruments such as the Bruker timsTOF facilitate this process, enabling the acquisition of higher-quality and less convoluted spectra without substantially compromising acquisition speed.

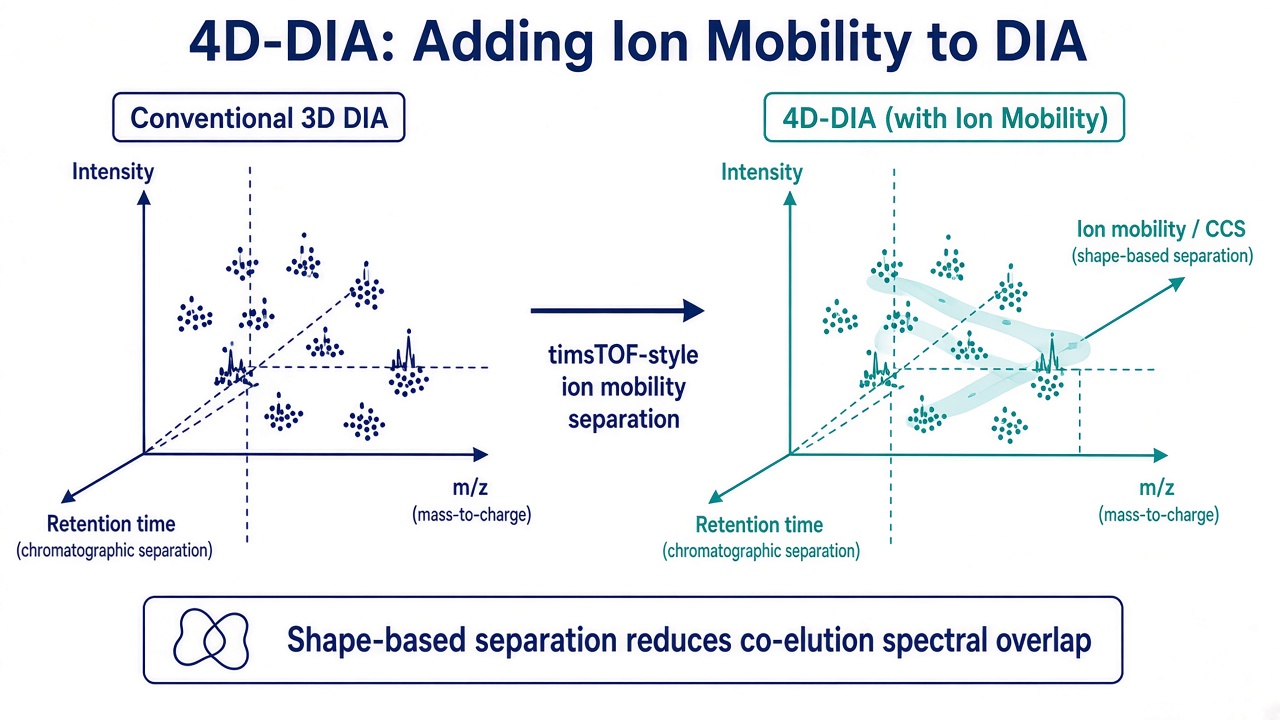

Figure 1. 4D-DIA adds ion mobility separation to conventional DIA dimensions, reducing co-elution spectral overlap in complex samples.

1. Mitigating Co-Elution Interference and Enhancing Spectral Purity

Ion mobility separation enables the differentiation of peptides that share similar m/z and retention time profiles, thereby minimizing spectral overlap and interference and increasing the accuracy of spectral matching.

2. Improved Detection of Low-Abundance Proteins

In standard DIA workflows, signals from low-abundance peptides are often masked by more abundant species. By resolving analytes across an additional mobility dimension, 4D-DIA allows for the recovery and detection of these otherwise obscured signals, enhancing sensitivity for low-abundance proteins.

3. Expanded Quantitative Dynamic Range and Enhanced Reproducibility

The increased precision in signal deconvolution provided by 4D-DIA contributes to robust and consistent quantification, even in highly complex sample backgrounds, making it particularly suitable for large-scale studies involving biological replicates.

4. Compatibility with Advanced AI-Based Identification Algorithms

Modern software platforms such as DIA-NN are inherently compatible with four-dimensional data formats and integrate deep learning models to improve spectrum interpretation efficiency. This synergy positions 4D-DIA as a highly effective tool for proteomic analysis in complex biological systems.

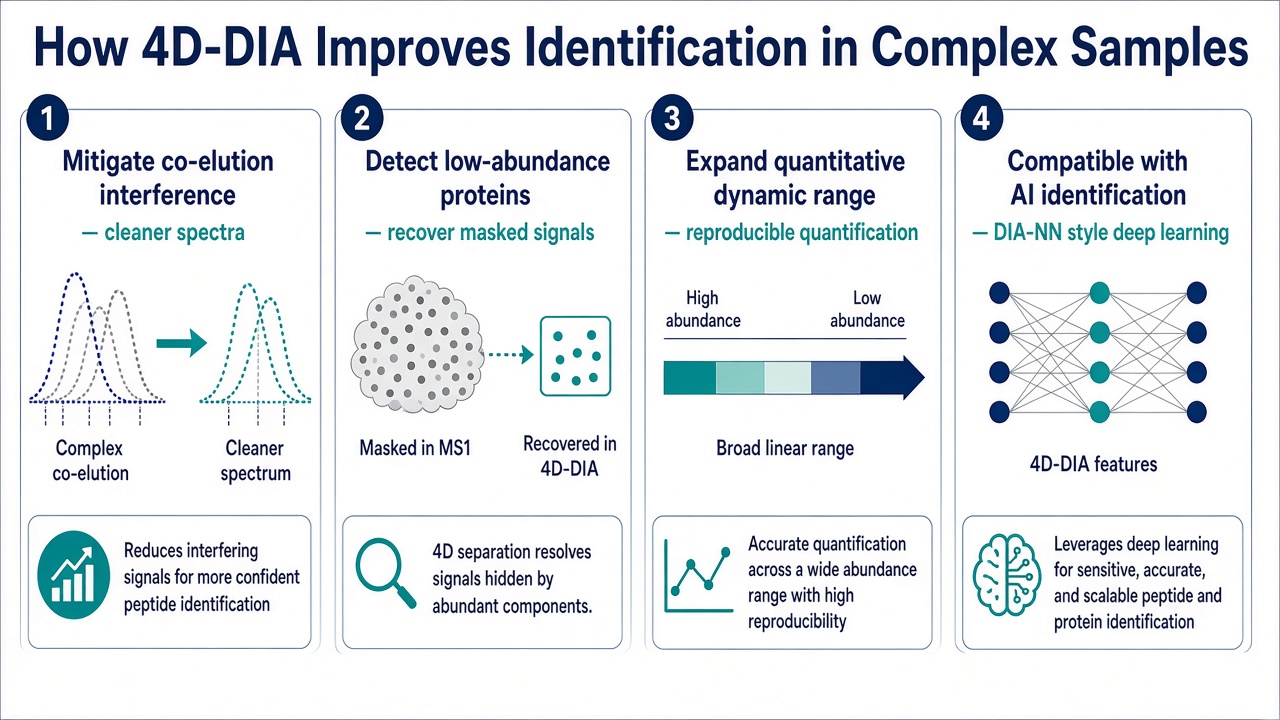

Figure 2. 4D-DIA improves complex-sample identification through cleaner spectra, low-abundance recovery, broader quantification range, and AI-compatible analysis.

In What Types of Complex Samples Does 4D-DIA Show Greater Advantages?

4D-DIA is broadly compatible with most proteomic sample types, but its advantages are particularly evident in the following categories:

• Serum/plasma and other body fluids: Characterized by a large dynamic range, these samples benefit from the enhanced detection of low-abundance proteins enabled by 4D-DIA.
• Formalin-fixed paraffin-embedded (FFPE) tissues: Due to extensive protein cross-linking and degradation, these samples require high-resolution spectral analysis, which 4D-DIA provides effectively.
• Exosomes and other extracellular vesicles: These samples present low target protein abundance within a complex background, conditions under which 4D-DIA improves signal discrimination.
• Heterogeneous tissues (e.g., tumors): Featuring pronounced cellular subpopulation diversity, these samples benefit from the enhanced classification accuracy achieved through the additional ion mobility separation dimension.

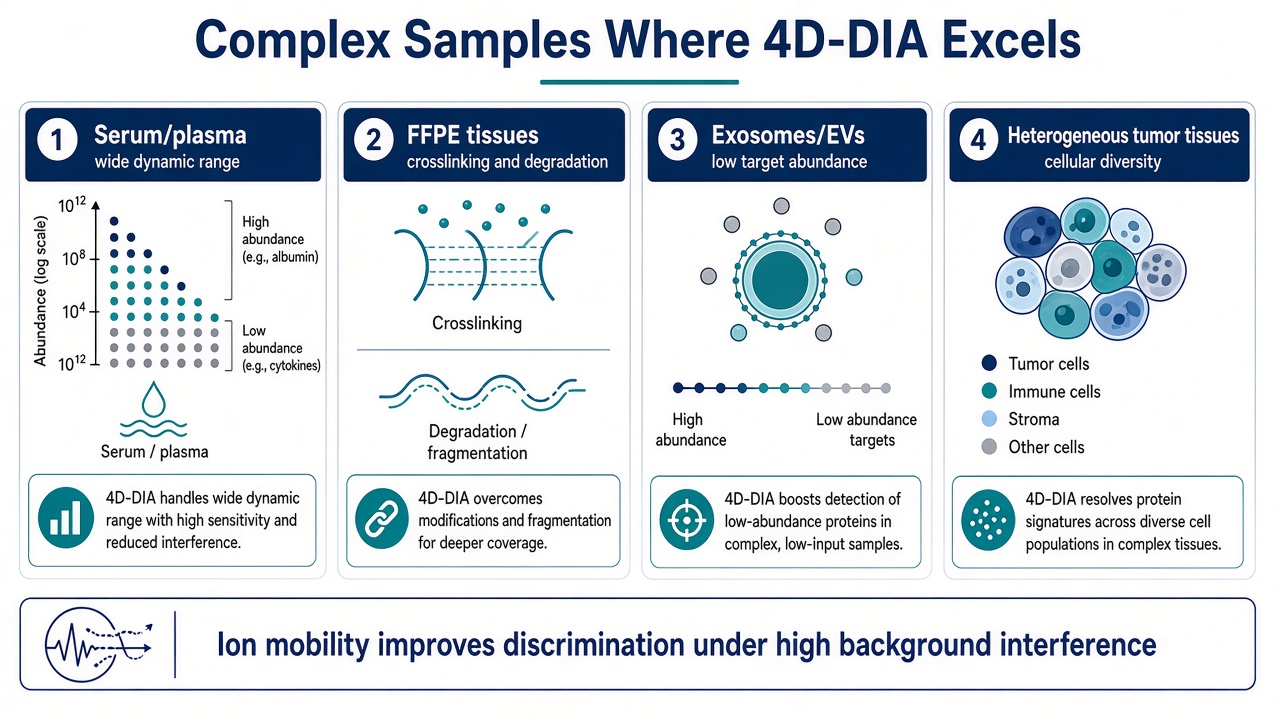

Figure 3. 4D-DIA is especially useful for plasma, FFPE tissues, extracellular vesicles, and heterogeneous tissues with strong background interference.

Broader DIA sequencing coverage and throughput context is summarized in DIA Protein Group Sequencing.

By incorporating ion mobility as a fourth dimension, 4D-DIA significantly improves protein identification rate, quantitative accuracy, and low-abundance protein coverage in complex sample backgrounds. It has become an increasingly adopted strategy in proteomics research. In particular, it performs exceptionally well in the context of high heterogeneity, wide dynamic range, and strong background interference. As software and hardware ecosystems continue to mature, 4D-DIA is expected to play an increasingly pivotal role in biomarker discovery, precision medicine, immunology, and spatial proteomics. Researchers can also review the MtoZ Biolabs 4D-DIA Quantitative Proteomics for project-specific complex-sample feasibility, ion mobility–enabled DIA planning, and quantitative analysis support.
