How to Evaluate and Scope a Peptide Mapping Service: Deliverables, Turnaround, and Vendor Selection

Introduction

Peptide mapping service projects move faster when scope is defined before samples are shipped. Teams often request a standard mapping package while expecting comprehensive coverage, PTM review, and regulatory-style documentation in the same deliverable. Others submit insufficient purity information or outdated reference sequences and only discover the mismatch after the report returns. Unclear scope leads to repeat digests, delayed release decisions, and service results that do not fit the documentation standard the team actually needs.

A well-scoped peptide mapping service engagement begins with three questions: what level of primary structure evidence is required, which regions or PTMs are decision-critical, and what report format must be produced. Service tier, enzyme strategy, sample amount, and review depth all influence feasibility, cost, and project phase planning. Teams preparing recombinant, biosimilar, or research proteins for outsourced mapping can define scope before material leaves the lab. MtoZ Biolabs can Scope a peptide mapping service project during feasibility review.

Related Services

• Peptide Mapping Service
• Comprehensive Peptide Mapping Service
• Peptide Mapping Analysis Service
• Biopharmaceutical Peptide Mapping Analysis Service
• Peptide Coverage/Peptide Spectrum Match (PSM) Analysis Service
• HPLC-Based Peptide Mapping Assays Service
• Primary Structure Analysis Service

What to Define Before Requesting a Quote

Most service delays come from missing information rather than laboratory capacity. Before requesting peptide mapping service support, define the following:

1. Reference Sequence

Provide the exact protein sequence, construct version, and processing assumptions.

2. Sample Type and Purity

Note whether the material is purified protein, gel band, or batch sample with available purity data.

3. Service Goal

Specify QC confirmation, comparability, process support, or research documentation.

4. Coverage or Region Priorities

Identify whether full sequence coverage or specific domains matter most.

5. PTM Review Needs

List expected modifications, variants, or processing events.

6. Report Format

Confirm whether a research summary, QC report, or comparability package is required.

Clear scoping reduces the risk of selecting a service tier that cannot produce the documentation originally planned.

Service Design Factors That Drive Feasibility

Peptide mapping service outcomes depend heavily on upfront design choices.

Design Factor	Planning Question
Service tier	Does the project need standard or comprehensive mapping?
Sample suitability	Is purity sufficient for confident peptide assignment?
Reference accuracy	Does the sequence file match the submitted product state?
PTM scope	Which modifications must be reviewed in the report?
Comparability design	Must reference and test samples be handled identically?
Report depth	What documentation level is required for the next decision?

When protein complexity or documentation needs are uncertain, request feasibility review before final sample shipment.

How Service Tier and Protein Type Affect Scope

Service depth and protein type are not interchangeable with project success.

Project Need	Typical Service Route	Notes
Research confirmation	Standard peptide mapping service	Often sufficient for soluble recombinant proteins
Biopharmaceutical QC	Full LC-MS/MS service with method summary	Report format should be agreed upfront
Difficult or PTM-rich protein	Comprehensive peptide mapping service	Multi-enzyme or specialized review may be required
Biosimilar comparability	Matched service on reference and test material	Side-by-side reporting required
Routine profile monitoring	HPLC peptide mapping service	May complement periodic LC-MS/MS confirmation

Cost and effort usually scale with service tier, PTM review depth, number of samples, and report documentation requirements. Request only the deliverables required for the decision at hand.

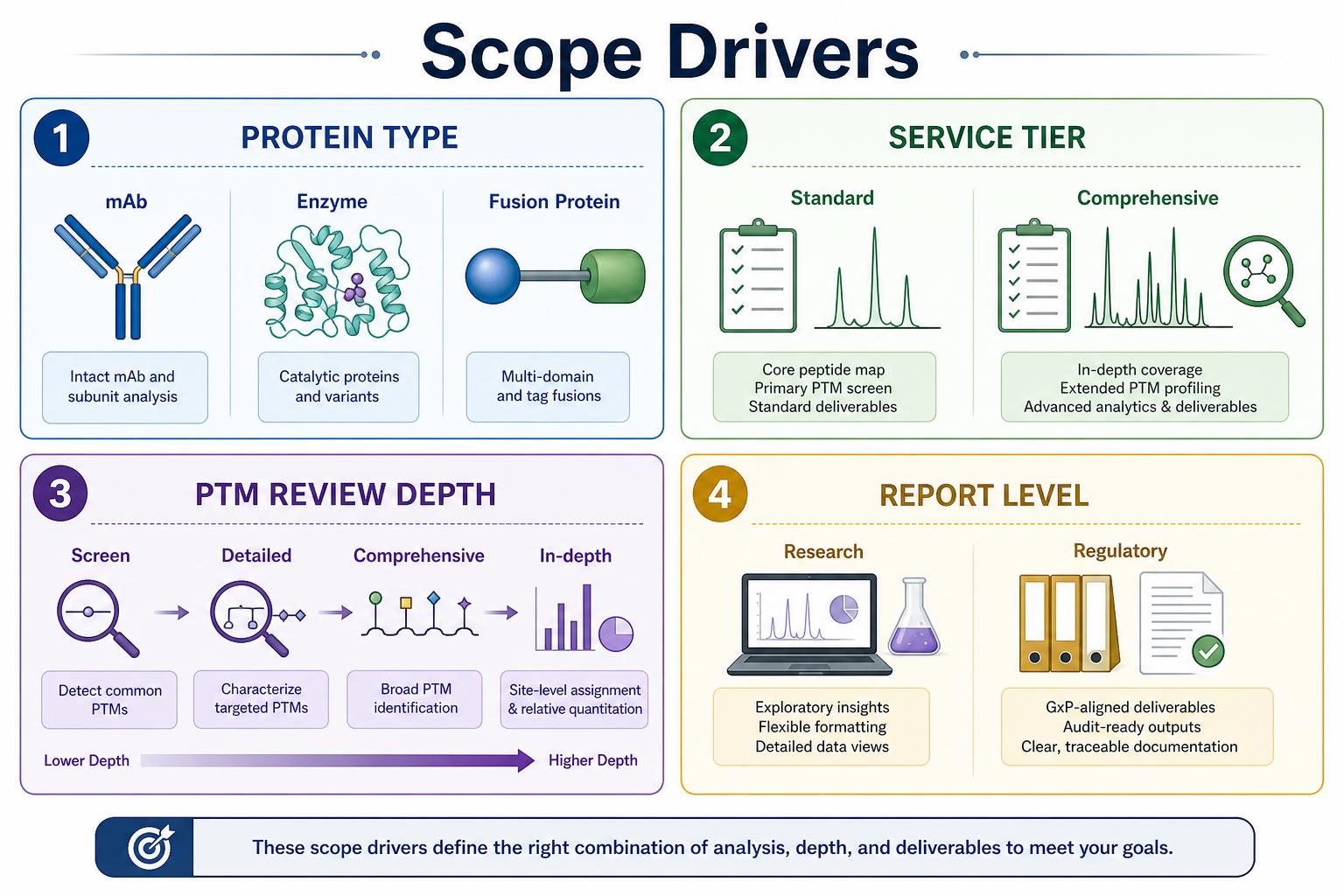

Figure 1. Protein type, service tier, PTM review depth, and report level are the main drivers of peptide mapping service scope.

Typical Service Phases

Peptide mapping service projects usually progress through defined phases rather than a single undefined handoff. Simple purified proteins may move quickly once reference sequence and report format are confirmed. Complex biologics or comparability packages usually require additional review and possible follow-up mapping. Planning exploratory and formal documentation phases separately reduces rework when the first package was not intended for release use.

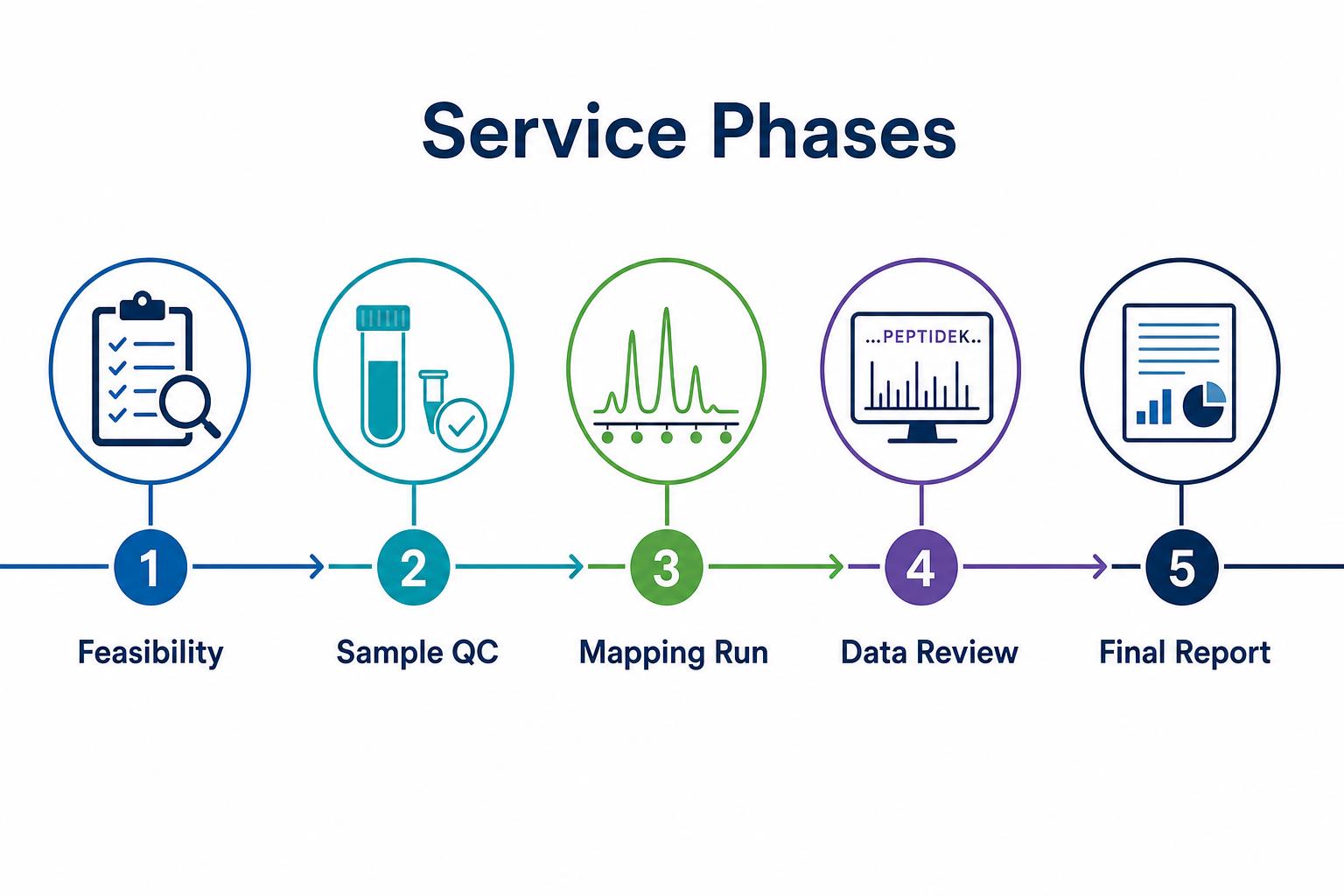

Figure 2. Feasibility review and sample QC before the mapping run support a smoother final report delivery.

Deliverables to Request Up Front

Different stakeholders need different service outputs. Define deliverables during quoting rather than after the report draft is returned.

Minimum useful deliverables often include:

• sequence coverage map aligned to the reference protein
• PSM or peptide identification table
• method summary covering digestion and LC-MS/MS approach
• commentary on unobserved or low-confidence regions

Additional deliverables may include:

• PTM or variant summary
• comparability discussion for reference and test samples
• gap-closure follow-up plan
• report structure suitable for QC or regulatory review

For programs requiring formal documentation, confirm whether Peptide Mapping Service or Comprehensive Peptide Mapping Service includes the reporting depth your quality system expects.

Vendor Evaluation Criteria

When comparing peptide mapping service providers, look beyond price per sample.

1. Coverage Strategy Experience

Can the vendor recommend standard versus comprehensive mapping based on your protein and documentation needs?

2. PTM and Biopharmaceutical Familiarity

Can the service support QC-style reporting when required?

3. Report Clarity

Are coverage maps, peptide tables, and gap commentary presented clearly?

4. Communication During Feasibility

Does the provider identify scope risks before samples are digested?

5. Follow-Up Capability

Can gap closure, PTM review, or comparability support be added without restarting from zero?

6. Integrated Service Access

Can HPLC mapping, terminal analysis, or de novo sequencing be added if mapping alone is insufficient?

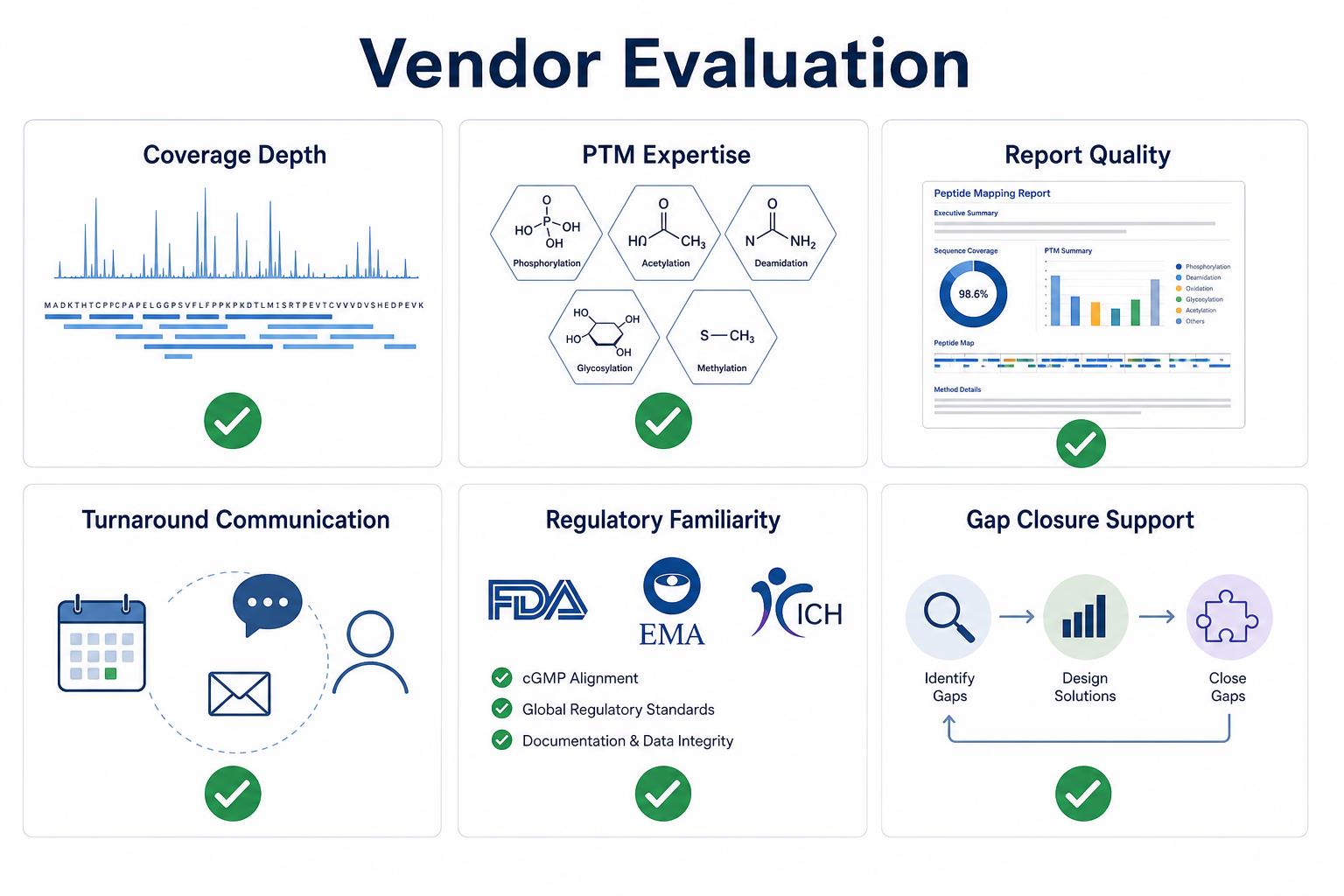

Figure 3. Coverage depth, PTM expertise, report quality, and follow-up support matter more than per-sample price alone.

Budget Planning Tips

To keep peptide mapping service projects within budget:

• match service tier to the documentation decision at hand
• provide reference sequence and purity data before quoting
• define critical regions rather than requesting unnecessary repeat mapping
• use standard mapping first when feasibility supports it
• reserve comprehensive service for known difficult proteins or formal QC milestones

Avoid treating all mapping requests as identical. A research confirmation sample and a release-support package rarely require the same service depth or report structure.

Include sample priority in the quote request. Tier-one batches tied to release or comparability should receive the agreed documentation level from the start. Tier-two samples can use lighter service tiers when the decision does not require full QC reporting.

When budgeting biosimilar or multi-batch programs, separate routine monitoring from milestone characterization in the quote structure so each phase is tied to a clear documentation gate.

Request a written feasibility summary before service lock-in when the protein is disulfide-rich, heavily modified, or previously produced incomplete coverage under standard mapping. The summary should identify whether standard service is likely sufficient or comprehensive mapping should be planned from the beginning.

Define acceptance criteria before the final report is issued. Specify required region coverage, PTM review expectations, and report format so the deliverable can be judged against project needs rather than against generic completion alone.

Frequently Asked Questions

1. What is the difference between standard and comprehensive peptide mapping service?

Comprehensive service usually includes broader coverage effort, follow-up gap closure, or deeper PTM review beyond a standard single-digest package.

2. How much sample should I prepare?

Depends on protein type, purity, and service tier. Feasibility review estimates amount after sample details are provided.

3. What should I include in a quote request?

Reference sequence, sample type, purity information, service goal, PTM list, coverage priorities, and report format requirements.

4. Can one service package support both research and QC use?

Only if the report depth and coverage scope were designed for the higher-requirement use case from the start.

5. Can a provider revise the report without repeating analysis?

Sometimes, when data support additional interpretation or formatting changes without new acquisition.

Conclusion

Successful peptide mapping service projects are planned around documentation needs, sample suitability, and service tier selection, not generic mapping requests alone. By defining reference sequence, coverage priorities, PTM review scope, and report format before shipment, teams reduce rework and obtain primary structure evidence that supports the next QC, comparability, or research decision.

MtoZ Biolabs can Plan your peptide mapping service scope across Peptide Mapping Service, Comprehensive Peptide Mapping Service, and Biopharmaceutical Peptide Mapping Analysis Service. Contact the technical team with sample details and documentation requirements to receive a feasibility-aligned service plan before samples are shipped.
