Causes of Co-IP Experimental Failure: Common Pitfalls and Troubleshooting Strategies

Co-immunoprecipitation (Co-IP) is a classical and widely used technique for investigating protein-protein interactions. Owing to its relatively straightforward workflow, high specificity, and ability to validate interactions under native conditions, Co-IP has been extensively applied in signaling pathway elucidation, protein complex assembly, and mechanistic functional studies. Nevertheless, despite its frequent appearance in the literature, the practical success rate of Co-IP experiments remains a challenge. In routine experimental practice, researchers often encounter issues such as unsuccessful target pulldown, elevated background signals, or failure to confirm protein interactions.

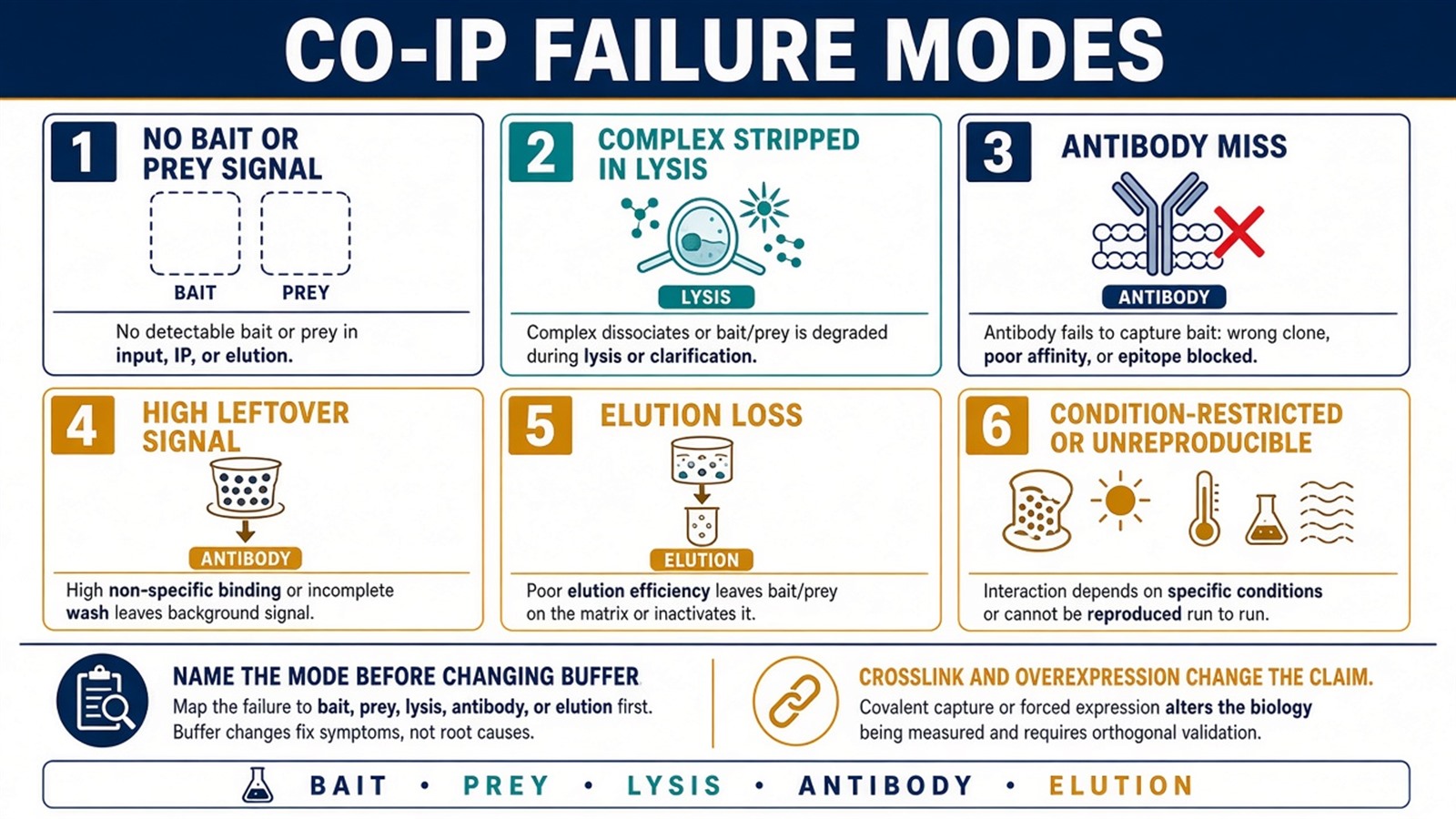

Insufficient Protein Expression Levels or Weak Intrinsic Interactions

1. Manifestations

• Signals corresponding to the target protein or its interacting partners are weak and cannot be detected by Western blot analysis.

• Expected interacting proteins are not identified in isotope-labeling experiments or mass spectrometry-based analyses.

2. Possible Causes

• The protein of interest exhibits low endogenous expression levels.

• The interaction occurs only under specific stimulation conditions or within a restricted temporal window.

• The protein complex is inherently unstable or characterized by low binding affinity.

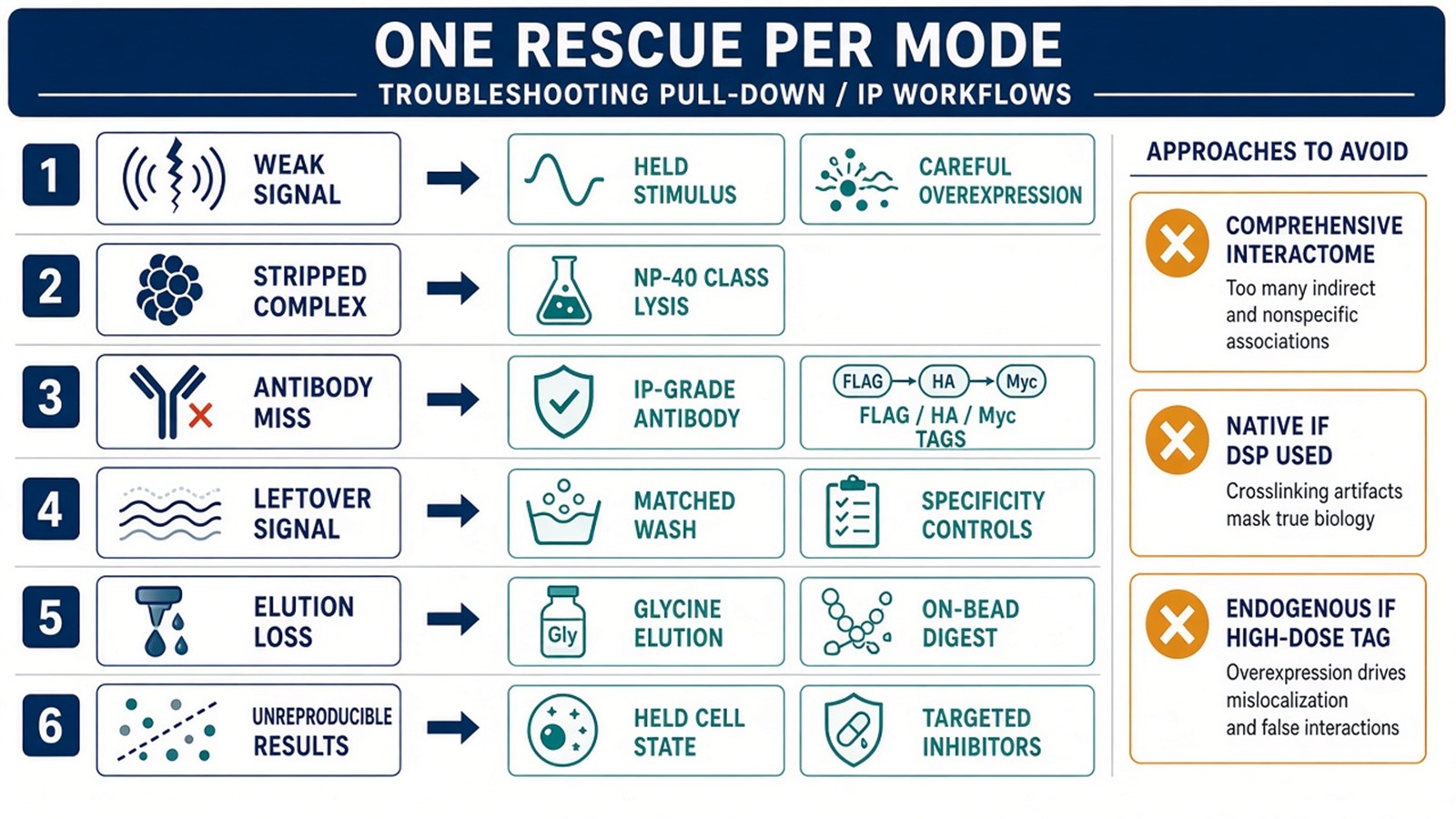

3. Solutions

• Employ overexpression systems to enhance protein abundance, while carefully controlling expression levels to minimize non-specific interactions.

• Optimize stimulation parameters, including drug treatment conditions and time-point selection.

• Apply chemical crosslinkers (e.g., DSP or formaldehyde) to stabilize protein complexes, particularly during sample preparation for mass spectrometry.

Overly Harsh or Insufficiently Mild Lysis Conditions

1. Manifestations

• Protein complexes cannot be efficiently immunoprecipitated.

• Only individual proteins are recovered after Co-IP, whereas interacting partners are lost.

2. Possible Causes

• Excessive detergent concentrations in the lysis buffer disrupt protein-protein interactions.

• Inappropriate ionic strength or pH buffering compromises protein stability.

3. Solutions

• Adopt mild lysis buffers containing non-ionic detergents, such as NP-40 or Triton X-100.

• Optimize buffer composition, for example using 150 mM NaCl and 50 mM Tris (pH 7.5).

• Avoid strong detergents such as SDS or DOC unless protein interactions have been experimentally confirmed to remain intact.

Antibody Quality Issues or Inappropriate Selection

1. Manifestations

• Low Co-IP efficiency and failure to enrich the target protein.

• Western blot analysis shows an absence of specific bands or excessive non-specific signals.

2. Possible Causes

• The antibody exhibits insufficient binding affinity or recognizes an epitope located within the protein interaction interface.

• Heavy and light-chain contamination from the antibody interferes with downstream analysis, particularly in mass spectrometry.

• The antibody has not been validated for immunoprecipitation applications.

3. Solutions

• Prioritize antibodies that have been experimentally validated for Co-IP, particularly those designated as IP-grade by commercial suppliers or reported in the literature.

• Use antibody crosslinking strategies, such as Protein A/G magnetic bead crosslinking, to minimize antibody-derived contamination.

• Consider tag-based strategies (e.g., FLAG, HA, or Myc fusion proteins) in combination with commercially available anti-tag antibodies.

Elevated Background Signals Due to Non-specific Binding

1. Manifestations

• Prominent IgG bands are observed in Western blot analysis.

• Mass spectrometry detects large numbers of non-specific background proteins, such as heat shock proteins or ribosomal proteins.

2. Possible Causes

• Non-specific adsorption of proteins to magnetic beads or antibodies.

• Interference from highly abundant proteins present in the sample.

3. Solutions

• Introduce appropriate blocking reagents, such as BSA or yeast tRNA, to reduce non-specific interactions.

• Include stringent control groups, including IgG controls and beads-only controls.

• Moderately enhance washing stringency to improve selectivity while preserving specific protein interactions.

Effects of Elution Methods on Downstream Analyses

1. Manifestations

• Interacting proteins are not detected by Western blot analysis.

• Protein identification rates are low and recovery efficiency is poor in mass spectrometry.

2. Possible Causes

• Elution conditions are excessively harsh, leading to protein denaturation or degradation.

• Components of the elution buffer interfere with downstream analyses, including SDS, glycerol, or DTT.

3. Solutions

• Apply mild elution strategies, such as low-pH glycine elution or competitive peptide-based elution.

• For mass spectrometry workflows, use detergent-free and salt-free elution systems in conjunction with solid-phase cleanup procedures.

Unstable or Transient Protein Interactions

1. Manifestations

• Poor reproducibility is observed across independent experiments.

• Protein interactions are detected only under specific experimental conditions.

2. Possible Causes

• Certain protein interactions are highly dynamic and occur only during specific cell cycle phases or stimulation states.

• Some interactions depend on defined post-translational modifications, such as phosphorylation.

3. Solutions

• Carefully control cellular conditions and include multiple experimental groups.

• Supplement experiments with enzyme inhibitors, including protease and phosphatase inhibitors, to preserve protein interactions.

• Consider mass spectrometry-based global interaction profiling to generate comprehensive interaction network maps.

From Co-IP to Quantitative Interactomics: Advantages of Co-IP-MS

Traditional Co-IP combined with Western blot validation is largely restricted to pairwise protein interaction analysis. When the objective is to identify novel interacting partners or to systematically characterize protein complexes, Co-IP coupled with mass spectrometry (Co-IP-MS) has emerged as a mainstream approach.

By leveraging high-resolution mass spectrometry platforms, such as Orbitrap Fusion Lumos or Exploris 480, a single Co-IP experiment enables:

1. Comprehensive identification of interacting proteins.

2. Quantitative comparison of interaction dynamics under different experimental conditions.

3. Construction of signaling pathway and interaction network maps.

MtoZ Biolabs offers comprehensive Co-IP-MS services encompassing experimental design, antibody screening, sample optimization, crosslinking condition evaluation, mass spectrometry analysis, and bioinformatics annotation. These integrated solutions support researchers in advancing from unsuccessful pulldown attempts to systematic interaction identification, substantially improving both the depth and efficiency of protein interaction studies.

Co-IP represents a technique that is both well-established and experimentally delicate. Experimental failure is rarely attributable to methodological obsolescence, but rather to insufficient attention to technical details. For researchers engaged in protein interaction studies, or those seeking to transition from conventional Co-IP to high-throughput Co-IP-MS-based proteomic platforms, MtoZ Biolabs provides professional technical support and extensive practical expertise to facilitate research advancement.
