Beginner's Guide to SWATH-MS Proteomics: Principles, Advantages, and Applications
-
High Dependence on Spectral Libraries: Variability in spectral libraries generated by different laboratories or mass spectrometry platforms can hinder cross-platform data comparability.
-
Computational Complexity in Data Analysis: Deconvolution algorithms are intricate, computationally intensive, and often slow, necessitating significant computational resources.
-
Limited Coverage of Modified Peptides: The current capabilities of SWATH-MS in detecting complex post-translationally modified peptides remain limited and require further enhancement.
Proteomics has become a central technology in modern life sciences for exploring cellular biology, disease mechanisms, and the discovery of biomarkers. SWATH-MS (Sequential Window Acquisition of All Theoretical Mass Spectra), a prominent technique in data-independent acquisition (DIA) strategies, is increasingly recognized as a new standard in proteomics due to its high throughput, strong reproducibility, and extensive coverage.

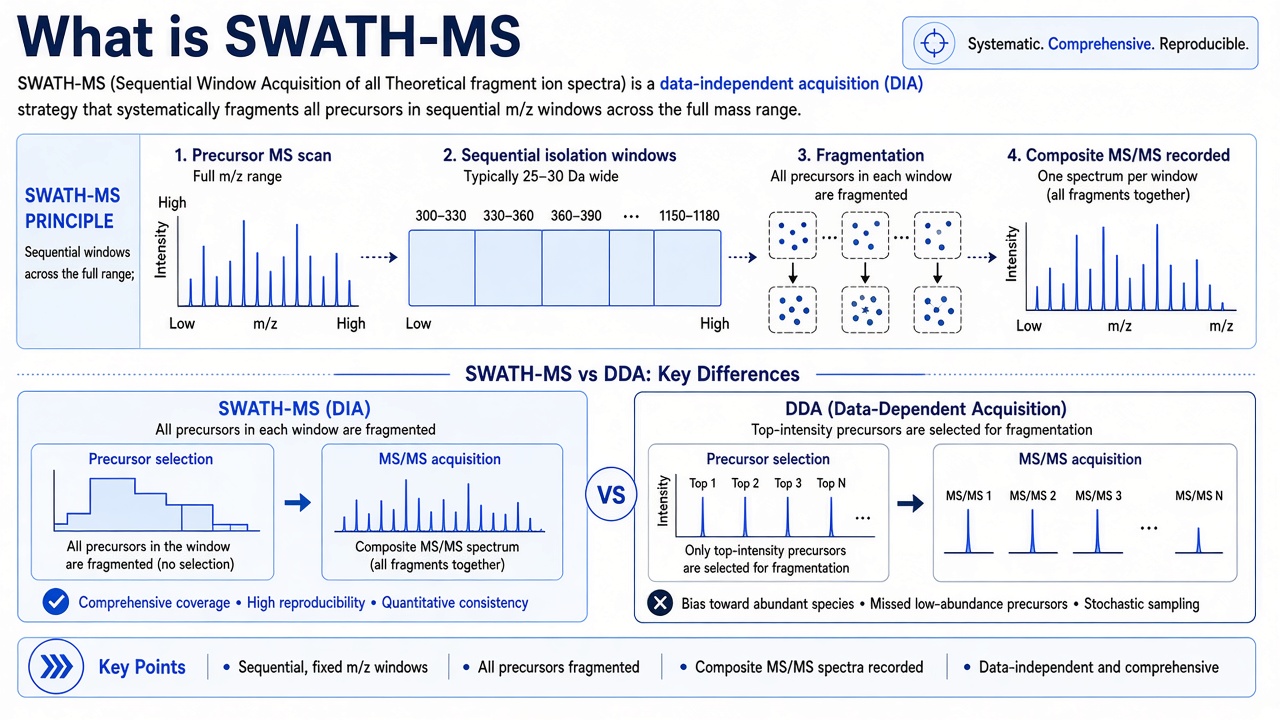

What Is SWATH-MS?
SWATH-MS is a mass spectrometry technique based on the DIA approach. It enables unbiased and comprehensive profiling of nearly all detectable peptides in complex biological samples through segmented scanning of precursor ions and simultaneous acquisition of corresponding fragment ion data. Unlike data-dependent acquisition (DDA), which preferentially selects precursor ions with the highest intensities, SWATH-MS divides the full m/z range into a series of consecutive windows (typically 25–30 Da each), sequentially fragments all ions within each window, and records their MS/MS spectra. This comprehensive scanning strategy allows for consistent detection of low-abundance proteins and those with poor reproducibility.

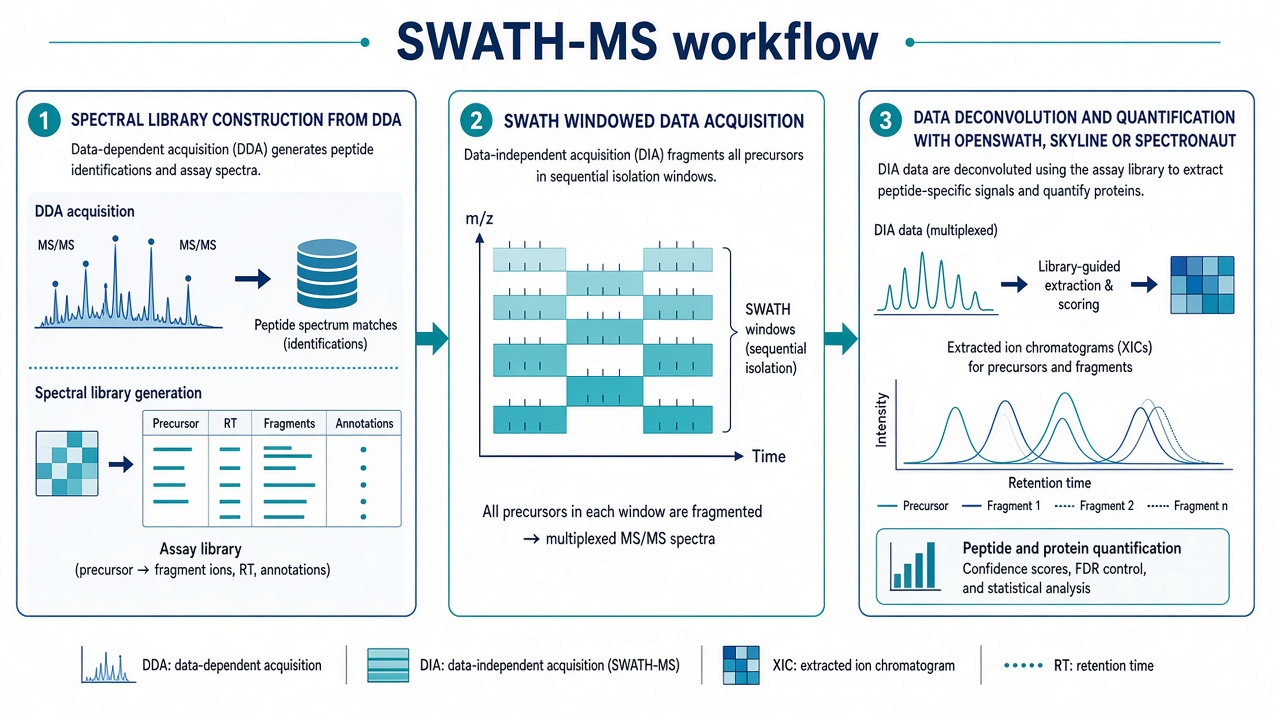

Workflow of SWATH-MS
The SWATH-MS workflow involves the following critical steps:
1. Construction of a spectral library: Since DIA produces complex, multiplexed MS/MS spectra, a high-quality spectral reference library—generated from prior DDA experiments—is required. This library includes retention times, fragmentation patterns, and ion intensities of target peptides.
2. SWATH data acquisition: The mass spectrometer performs stepwise acquisition across the entire m/z range using predefined windows. Within each window, all precursor ions are fragmented to generate composite MS/MS spectra.
3. Data deconvolution and quantification: Using software tools such as OpenSWATH, Skyline, or Spectronaut, the recorded spectra are deconvoluted and matched to peptides in the spectral library, enabling protein identification and quantification.
Technical Advantages of SWATH-MS
The key advantages of SWATH-MS include:
1. High throughput and broad coverage: A single SWATH-MS run can detect over ten thousand peptides, allowing for the quantification of thousands of proteins, especially in complex matrices like tissue lysates or plasma.
2. Exceptional quantitative reproducibility: Compared to DDA, SWATH-MS demonstrates higher consistency in protein quantification across replicates (typically R² > 0.95), making it particularly suitable for large-scale cohort studies and clinical research.
3. Unbiased ion sampling: SWATH-MS scans and records all ions within the defined m/z range, avoiding the selection bias of intensity-based acquisition and facilitating the detection of low-abundance or novel proteins.
4. Strong reusability of data: The original SWATH-MS datasets can be reanalyzed later with alternative or updated spectral libraries, supporting ongoing bioinformatics exploration and validation of new biomarkers.

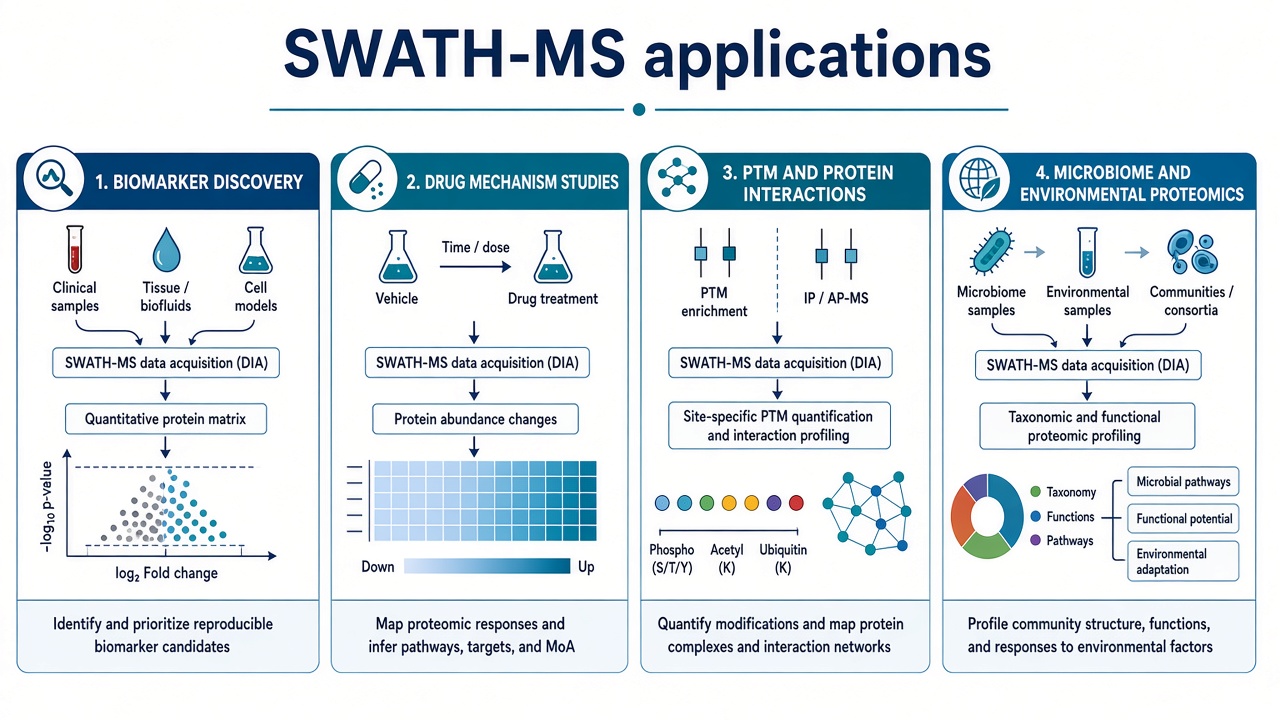

Application Areas of SWATH-MS
1. Biomarker Discovery
SWATH-MS is well-suited for identifying early-stage disease biomarkers. Its high proteome coverage and reproducibility enable the discovery of statistically significant candidate proteins across diverse sample cohorts.
2. Mechanistic Studies of Drug Action
SWATH-MS enables the characterization of dynamic proteomic changes in cellular or animal models before and after drug treatment, thereby facilitating the identification of drug targets and associated signaling pathways. For instance, it has been employed to monitor alterations in the proteomic profiles of tumor cells treated with small-molecule inhibitors, leading to the elucidation of key targets and mechanisms of drug resistance.
3. Analysis of Post-Translational Modifications and Protein Interactions
Although SWATH-MS requires high spectral resolution and optimized sample preparation for the analysis of post-translational modifications (e.g., phosphorylation, acetylation), it can achieve reliable quantification of specific modification types under standardized conditions. Additionally, by utilizing protein–protein interaction databases, SWATH-MS supports the identification of stable members within protein complexes.
4. Microbiome and Environmental Proteomics
SWATH-MS is increasingly being applied in the analysis of complex environmental samples and microbial communities. For example, in studies of microbial metabolic activity within wastewater treatment systems, SWATH-MS enables consistent tracking of functional proteins, thereby supporting the investigation of microecological processes.
Challenges of SWATH-MS
Despite its numerous advantages, SWATH-MS faces several notable challenges:
In the pursuit of scientific discovery, the choice of analytical technology fundamentally shapes the depth and breadth of findings. SWATH-MS is transforming the landscape of proteomics with its comprehensive, stable, and traceable analytical capabilities. It provides robust technical support across fields such as basic biology, translational medicine, and industrial biotechnology. MtoZ Biolabs is dedicated to integrating advanced mass spectrometry platforms with sophisticated data analysis tools to deliver standardized and customizable SWATH-based quantitative proteomics services, empowering scientific research to progress more effectively.
