Workflow for High-Throughput PPI Detection via Mass Spectrometry

Protein-protein interactions (PPIs) are fundamental to cellular processes and underpin virtually all biological activities. Elucidating these interactions not only facilitates a deeper understanding of signaling pathways and physiological functions, but also provides a robust foundation for drug target identification and mechanistic studies of disease. With the rapid advancement of systems biology, there is an increasing demand for high-throughput, quantitative, and systematic approaches to PPI analysis. Owing to their high throughput, ability to preserve interactions under near-native conditions, and strong quantitative performance, mass spectrometry-based PPI detection technologies have emerged as a major focus of contemporary proteomics research.

Why Choose Mass Spectrometry to Study PPIs?

Over the past several decades, techniques such as yeast two-hybrid (Y2H), bimolecular fluorescence complementation (BiFC), and co-immunoprecipitation (Co-IP) have been widely employed to probe protein-protein interactions. However, these approaches are subject to inherent limitations, particularly with respect to throughput, dynamic range, and the faithful preservation of the native cellular context.

In contrast, mass spectrometry-based PPI analysis offers several key advantages:

• High throughput: enables the characterization of thousands of protein complexes within a single experiment.

• Native-state preservation: well suited for complex samples analyzed under conditions that closely resemble physiological environments.

• Strong quantitative capability: compatible with both labeling strategies (e.g., TMT/iTRAQ) and label-free quantification for comparative analysis.

• Multi-omics integration: allows concurrent acquisition of protein abundance, post-translational modification, and related molecular information.

Leveraging advanced Orbitrap high-resolution mass spectrometry platforms in combination with proprietary interaction capture and enrichment workflows, MtoZ Biolabs has generated high-quality PPI network datasets for multiple research groups, enabling systematic solutions across oncology, neuroscience, immunology, and related research areas.

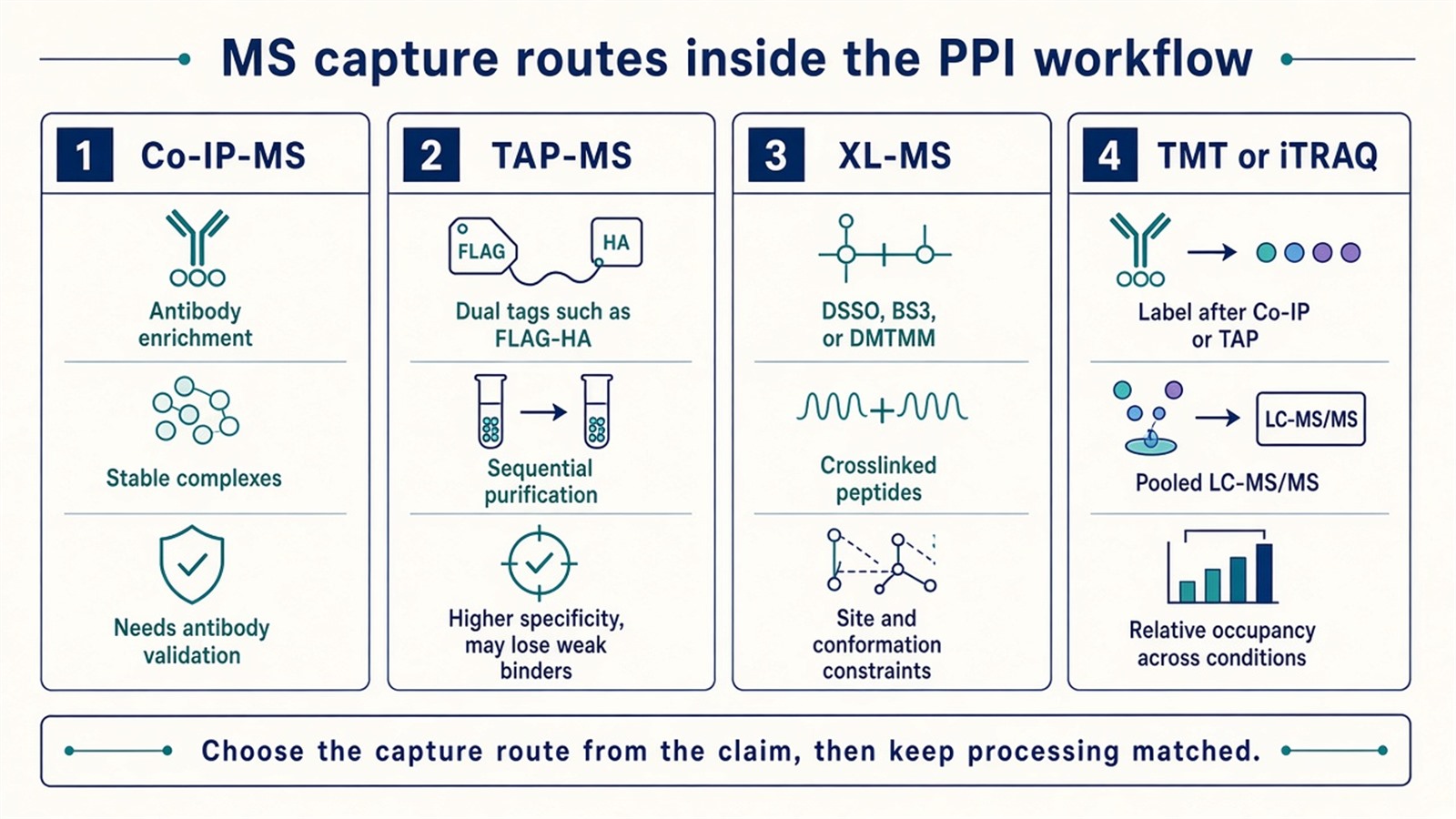

Overview of Mainstream Strategies for Mass Spectrometry-Based PPI Detection

1. Co-Immunoprecipitation-Mass Spectrometry (Co-IP-MS)

(1) Principle

Specific antibodies are employed to enrich the target protein together with its associated complexes, followed by mass spectrometric analysis to determine the composition of co-precipitated proteins.

(2) Application Characteristics

• Well suited for the analysis of stable protein complexes.

• Allows targeted investigation of specific signaling pathways or core regulatory proteins.

• Highly dependent on antibody specificity and carefully optimized experimental conditions.

(3) Technical Key Points

• Selection and validation of high-quality antibodies.

• Stringent control of elution conditions and non-specific background.

• Appropriate quantitative strategies (e.g., label-free, SILAC, TMT).

2. Tandem Affinity Purification-Mass Spectrometry (TAP-MS)

(1) Principle

Dual affinity tags (such as FLAG-HA) are genetically fused to the target protein, and sequential affinity purification steps are performed to substantially reduce non-specific interactions.

(2) Advantages

• Enhanced specificity of interaction identification.

• Particularly suitable for the construction of stable interaction networks.

• Compatible with mammalian, yeast, and insect expression systems.

3. Targeted PPI Identification: Cross-Linking Mass Spectrometry (XL-MS)

(1) Principle

Chemical cross-linkers are used to covalently stabilize interacting proteins, and cross-linked peptides are subsequently identified by mass spectrometry, enabling interaction site mapping at the structural level.

(2) Emerging Applications

• Conformational analysis of protein complexes.

• Integration with spatial omics approaches.

• High-resolution identification of precise interaction sites.

(3) Representative Cross-Linkers

DSSO, BS3, DMTMM, and related reagents, which differ in spacer length and fragmentation behavior and can be selected to meet diverse experimental requirements.



4. Quantitative Interactome Analysis: Labeling-Based Quantification Combined with MS (TMT/iTRAQ)

Following labeling of Co-IP or TAP-derived samples, pooled analysis by mass spectrometry enables quantitative assessment of PPI dynamics across different experimental conditions, including:

• Changes in interaction networks before and after drug intervention.

• Comparative analysis of PPIs under distinct cellular states.

• Differential interaction profiling between tumor and normal tissues.

MtoZ Biolabs offers integrated, end-to-end services encompassing labeling strategy design, interaction enrichment, mass spectrometry acquisition, and bioinformatics analysis, facilitating efficient interpretation of dynamic biological networks.

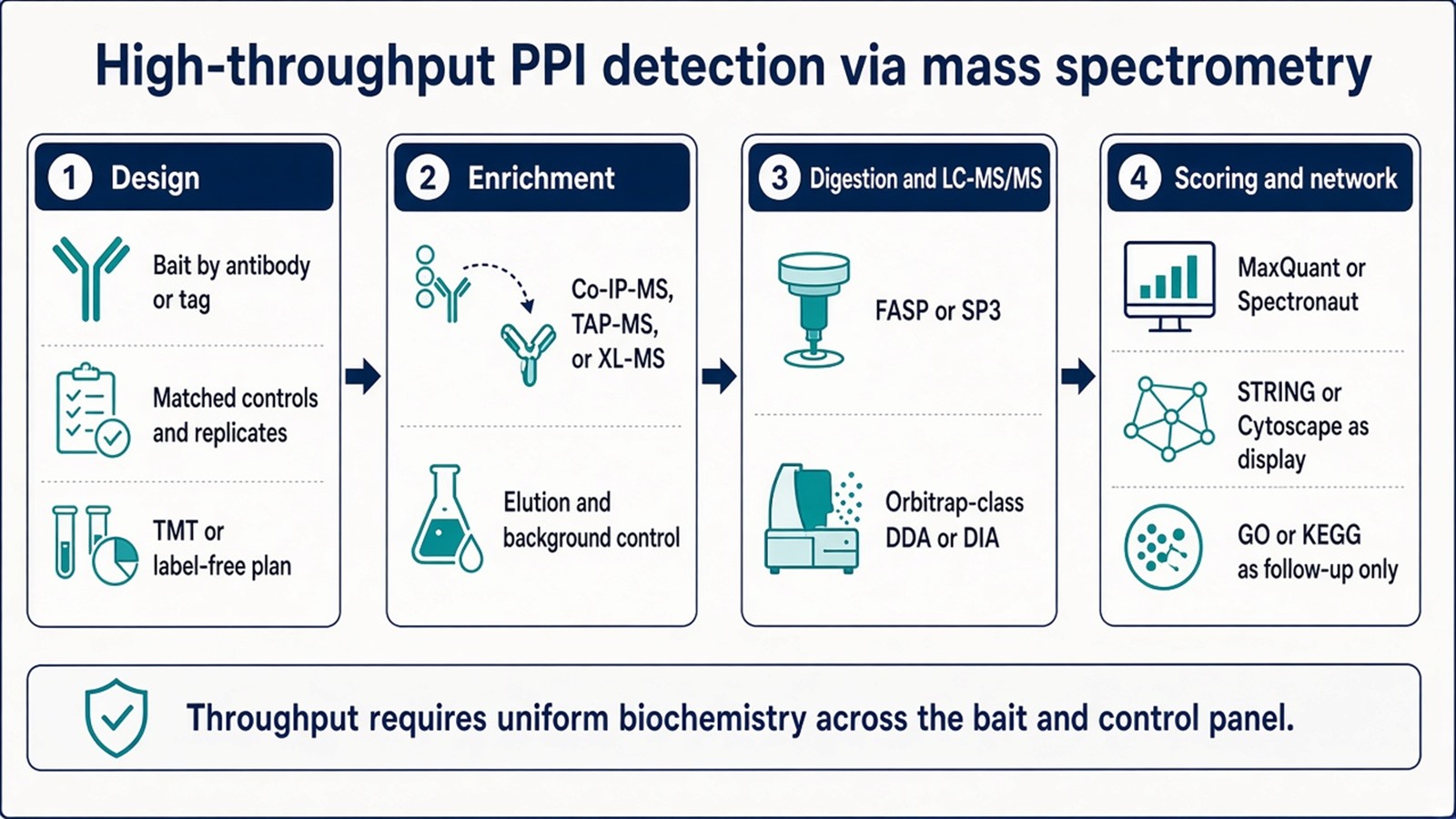

Comprehensive Analysis of the MtoZ Biolabs High-Throughput PPI Detection Workflow

1. Sample Preparation and Experimental Design

• Selection of target proteins (or implementation of antibody- or tag-based strategies).

• Design of appropriate controls and biological replicates.

• Confirmation of fluorescence or labeling strategies (e.g., TMT labeling).



2. Interaction Enrichment

• Co-IP, TAP, or chemical cross-linking procedures.

• Optimization of elution conditions.

• Implementation of non-specific background control measures.

3. Protein Digestion and Mass Spectrometry Analysis

• Application of efficient protein preprocessing workflows, such as FASP or SP3.

• High-resolution LC-MS/MS analysis using Orbitrap platforms.

• Flexible selection of DDA or DIA acquisition modes to balance proteome coverage and quantitative accuracy.

4. Bioinformatics Analysis and Network Construction

• Protein identification and quantification using software tools such as Spectronaut and MaxQuant.

• Construction and visualization of interaction networks using platforms such as STRING and Cytoscape.

• Support for GO/KEGG pathway enrichment analysis, PPI submodule identification, and discovery of key hub proteins.

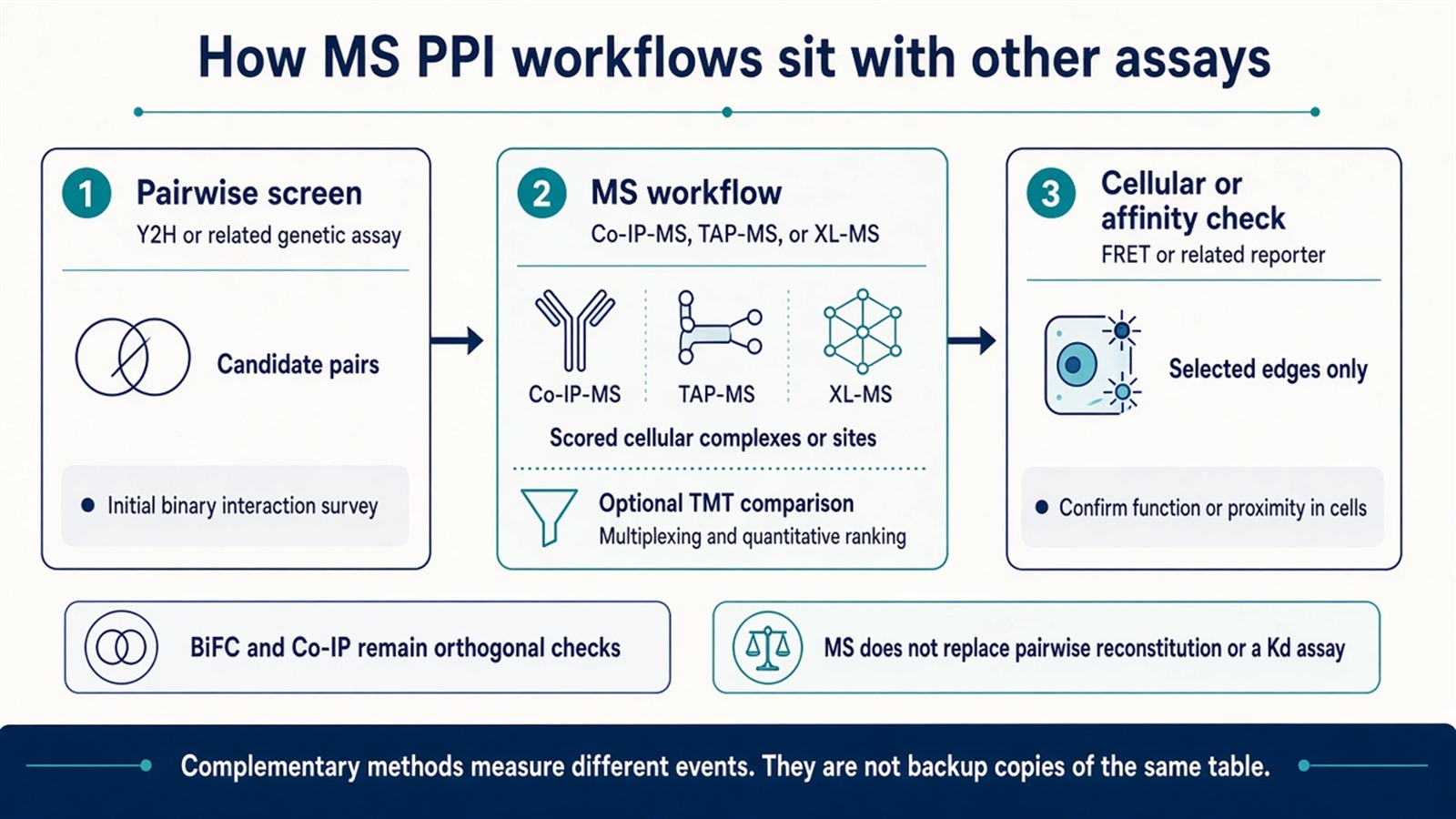

Complementarity with other technologies

Although mass spectrometry excels in PPI analysis, alternative techniques offer complementary strengths with respect to sensitivity, temporal resolution, and validation capacity. A brief comparison is provided below:



Accordingly, integrative experimental strategies are frequently adopted, such as initial interaction screening using Y2H, followed by precise characterization of interaction complexes via mass spectrometry, and subsequent functional validation using techniques such as FRET.

With continued advances in mass spectrometry, MS-based PPI analysis is expected to progress toward greater throughput, enhanced quantitative accuracy, and improved structural resolution. When integrated with AI-driven network analysis and spatial proteomics, future studies may enable PPI mapping at the single-cell or even subcellular level. At MtoZ Biolabs, we are committed to advancing PPI research from data acquisition toward mechanistic insight, supporting breakthroughs in tumor target discovery, signaling pathway reconstruction, and protein function prediction. We welcome collaboration to develop customized PPI detection strategies tailored to specific scientific questions.
