Zeta Potential Analysis Service

In materials science, nanotechnology, biomedicine, and environmental engineering, the stability and dispersibility of particles and colloids are critical parameters. Zeta potential, a key indicator of colloidal system stability, reflects the distribution of surface charges on particles within a solution. Measuring zeta potential enables a comprehensive evaluation of system stability and provides valuable insights for process optimization, product development, and quality control.



MtoZ Biolabs is a trusted provider of analytical services with years of experience and a professional instrumentation platform. Through our Zeta Potential Analysis Service, we deliver rapid and accurate particle characterization to help researchers and industry professionals gain a deeper understanding of charge behavior under various environmental or formulation conditions, thereby facilitating innovation and product development.



Technical Principles

Zeta potential refers to the electric potential at the shear plane of colloidal or particulate systems when subjected to an external electric field. Particles in aqueous or other dispersive media often carry positive or negative charges. Under an applied electric field, these charged particles migrate toward the opposite electrode. By measuring their velocity and incorporating the characteristics of the dispersing medium, the zeta potential value can be calculated.





Kanyo, N. et al. Sci Rep. 2020.

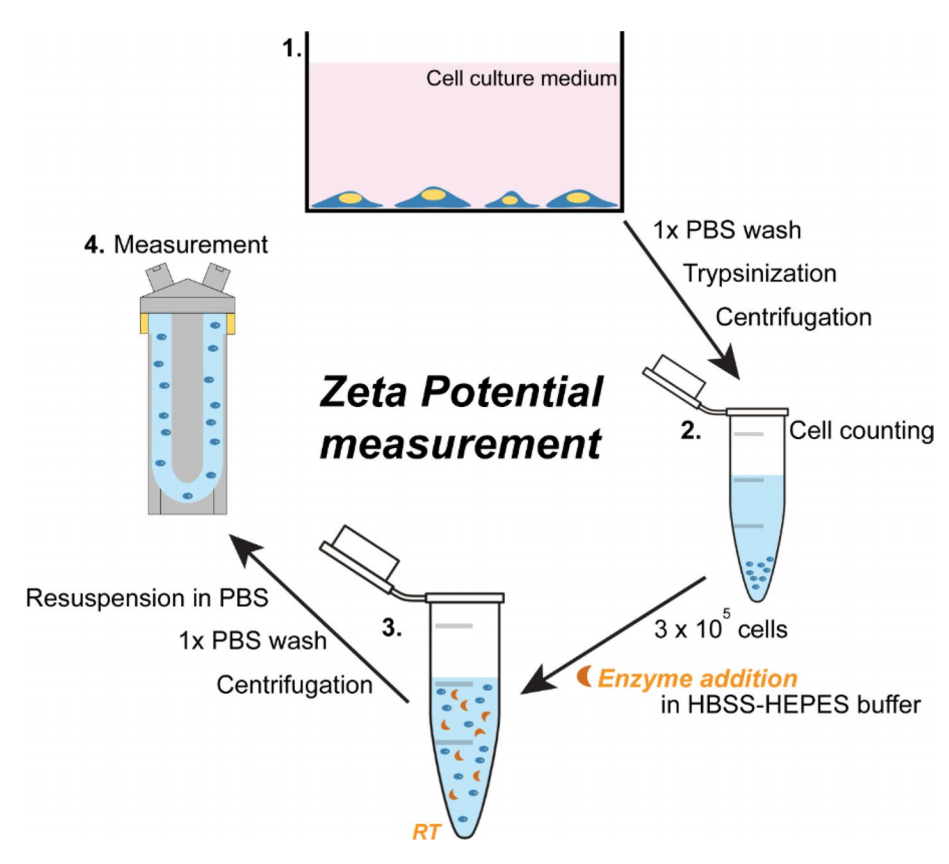

Figure 1. Zeta Potential Measurement on Cells



This analysis reveals the surface chemistry of particles and the influence of the surrounding medium on charge distribution. It serves as a scientific reference for optimizing formulations, adjusting pH levels, and tuning ionic strength. Common techniques include Laser Doppler Micro-Electrophoresis and electrophoretic light scattering, which quantify the degree of electrostatic repulsion or attraction between particles. Higher absolute zeta potential values typically indicate greater repulsion and better dispersion, while lower values suggest a tendency toward aggregation or sedimentation.



Analysis Workflow

1. Consultation and Project Planning

Upon receiving a testing request, MtoZ Biolabs’ team collaborates with clients to define a suitable analytical strategy based on sample type, research objective, and application scenario. This includes selecting appropriate instruments and setting test conditions (e.g., pH, ionic strength, temperature).



2. Sample Preparation

Depending on the sample (nanoparticles, emulsions, suspensions, polymer dispersions, etc.), tailored pretreatment steps such as dilution, centrifugation, or filtration are applied to ensure reliable and reproducible data acquisition.



3. Instrument Testing and Data Collection

Following preparation, samples are analyzed using advanced zeta potential analyzers. Multiple measurements per sample are conducted to obtain mean values and assess reproducibility.



4. Data Interpretation and Evaluation

Collected data are compared against reference values or thresholds to assess stability or aggregation risks. Additional parameters, such as particle size, may be incorporated into a comprehensive evaluation.



5. Report Delivery

Clients receive a detailed report outlining experimental conditions, raw data, analysis charts, key findings, and actionable recommendations. For complex systems, MtoZ Biolabs offers custom comparative analyses and expert consultations.



Service Advantages

• Experienced Technical Team: Our scientists have deep expertise in colloidal chemistry, nanomaterials, and biomedical applications, providing targeted advice and troubleshooting throughout the project.

• Advanced Instrumentation: Equipped with high-precision zeta potential analyzers, our lab ensures accurate and reproducible results through rigorous calibration and quality control procedures.

• Flexible Project Execution: From exploratory research to large-scale testing, we accommodate diverse project timelines and sample volumes with tailored service plans.

• Comprehensive Data Insights: Beyond simple zeta potential measurements, we provide multi-parameter assessments considering particle size, surface modifications, and formulation components.

• Ongoing Support: Post-analysis, our team continues to offer consultation and technical guidance, maximizing the impact of zeta potential data in your downstream applications.



Applications

1. Characterization of Nanodrug Delivery Systems

For nanocarriers such as liposomes or polymeric microspheres, zeta potential analysis informs on stability in physiological environments and supports formulation refinement.



2. Colloid and Emulsion System Optimization

In industries like food, cosmetics, and chemicals, zeta potential testing helps evaluate emulsifier performance and ensures long-term product stability.



3. Surface Engineering of Biomaterials

Biomedical materials often require surface modifications for improved cell compatibility. Zeta potential measurement verifies modification success and supports adhesion performance assessments.



4. Environmental Monitoring and Water Treatment

During coagulation and flocculation processes, zeta potential analysis quantitatively evaluates interactions between coagulants and colloidal particles, enhancing treatment efficacy.



Case Study

1. Formulation and Evaluation of Budesonide-loaded Nanosponges for Colon-specific Drug Delivery Systems





Kapadne, C. et al. BIO Integration, 2024.

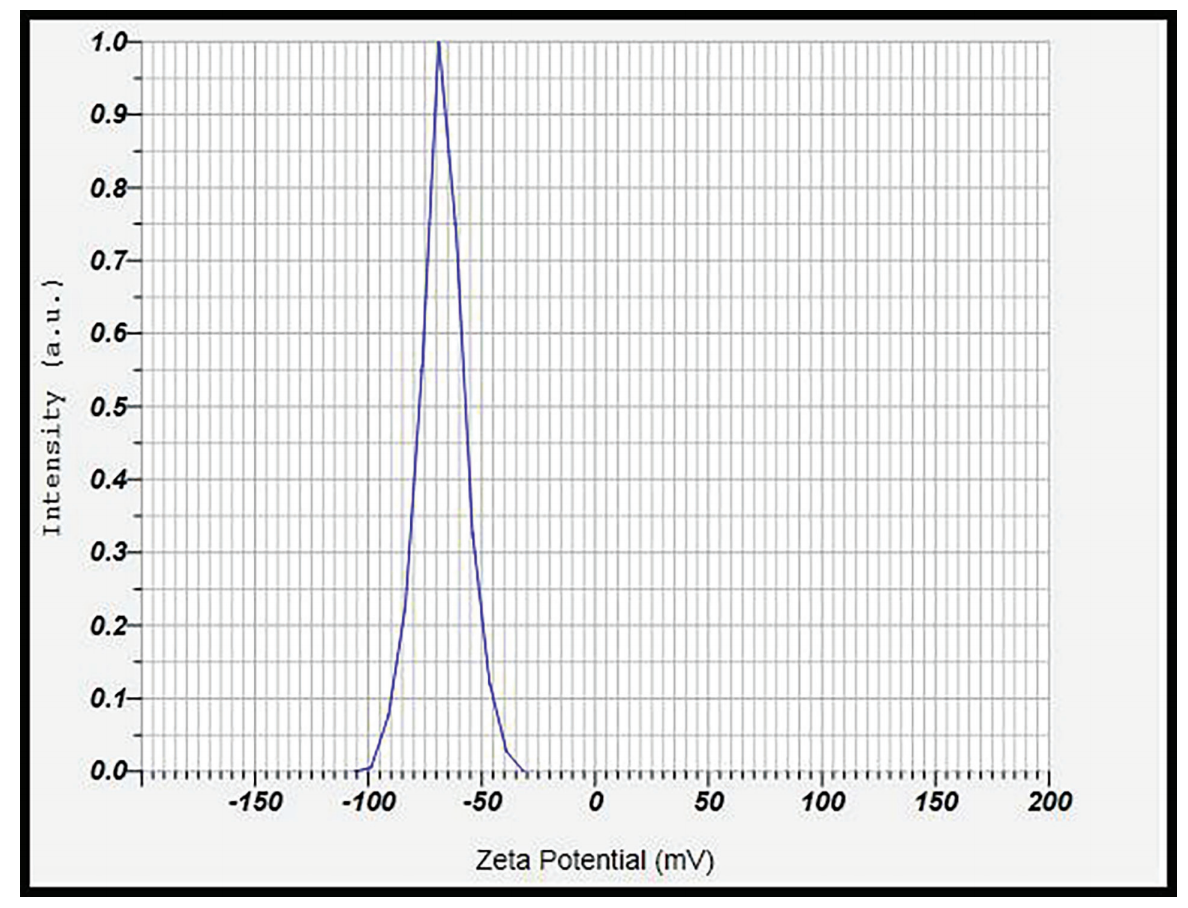

Figure 2. Zeta Potential Analysis Data for CD-NS



FAQ

Q1. Will the test damage my sample?

In most cases, zeta potential testing is minimally invasive and does not alter chemical structures. For samples containing volatile, toxic, or sensitive compounds, please contact us in advance to implement appropriate safety measures.



Q2. How is result reproducibility ensured?

We follow standardized protocols, conduct multiple parallel measurements, and routinely calibrate instruments to ensure high reproducibility. If high-precision or condition-specific data are needed, let us know during the planning phase.



Q3. Do you provide further data analysis and technical support?

Yes. We offer integrated assessments combining zeta potential with particle size or morphology analysis and can provide additional guidance for R&D or process optimization based on your requirements.



Sample Submission Suggestions

1. Sample Type Declaration
Indicate the sample type (e.g., nanoparticles, emulsions), key components, and any potential hazards to ensure appropriate handling protocols.



2. Pre-treatment and Packaging

If temperature-sensitive or light-sensitive, ensure samples are securely sealed and include proper cold chain or light protection instructions.



3. Volume and Concentration Requirements

A minimum sample volume or mass is needed for replicate testing. Confirm details with our technical team during consultation.



4. Labeling and Inventory

Label all samples clearly, matching the submission form with sample IDs, batch numbers, and client information. Special conditions (e.g., pH range, ionic strength) should be noted.



5. Logistics and Timeline

Upon agreement, testing will commence based on project priority. For urgent analysis needs, expedited services can be arranged upon request.



Through this overview, we hope you’ve gained a clear understanding of the critical role that Zeta Potential Analysis plays in evaluating particle stability, refining formulations, and ensuring product performance. With a professional team and cutting-edge instrumentation, MtoZ Biolabs is dedicated to delivering precise, reliable, and efficient zeta potential analysis service to support innovation and practical applications across diverse industries. Feel free to contact us for further inquiries or tailored support.
