Contact Angle/Surface Tension Measurement Analytical Service
In materials science, pharmaceuticals, cosmetics, food packaging, and biomedicine, the study of surface properties is crucial. Contact angle (Contact Angle) and surface tension (Surface Tension) not only help researchers understand a material’s surface wettability but also allow deeper analysis of molecular interactions, film adhesion strength, and effects of surface modifications. As research demands become more specialized, the development of new materials and formulations has raised higher requirements for surface property testing.
MtoZ Biolabs has extensive expertise across multiple fields in detection and analysis services. We are committed to providing global researchers and enterprises with professional contact angle and surface tension measurement and analysis solutions. By delivering accurate and reliable data along with comprehensive, efficient technical support, we assist our clients in assessing the interaction characteristics between materials and interfaces, thus facilitating the development and quality control of new products and processes. Whether you work in polymer materials, colloidal chemistry, biomedicine, or functional coatings, MtoZ Biolabs’ Contact Angle/Surface Tension Measurement Analytical Service will help you gain deeper insights into the surface properties of your samples, enhancing efficiency in both research and production.
Technical Principles
1. Contact Angle Measurement
The contact angle refers to the angle between the edge of a liquid droplet and the material’s surface once the droplet has reached equilibrium on that surface. By measuring this angle, one can determine the surface’s wettability (whether hydrophilic or hydrophobic). Generally, when the contact angle is less than 90°, the material’s surface is considered to exhibit good wettability toward that liquid; otherwise, it is hydrophobic or water-repellent. The contact angle is also influenced by factors such as surface roughness, chemical composition, and temperature.
Zhang, J. et al. Front Earth Sci. 2023.

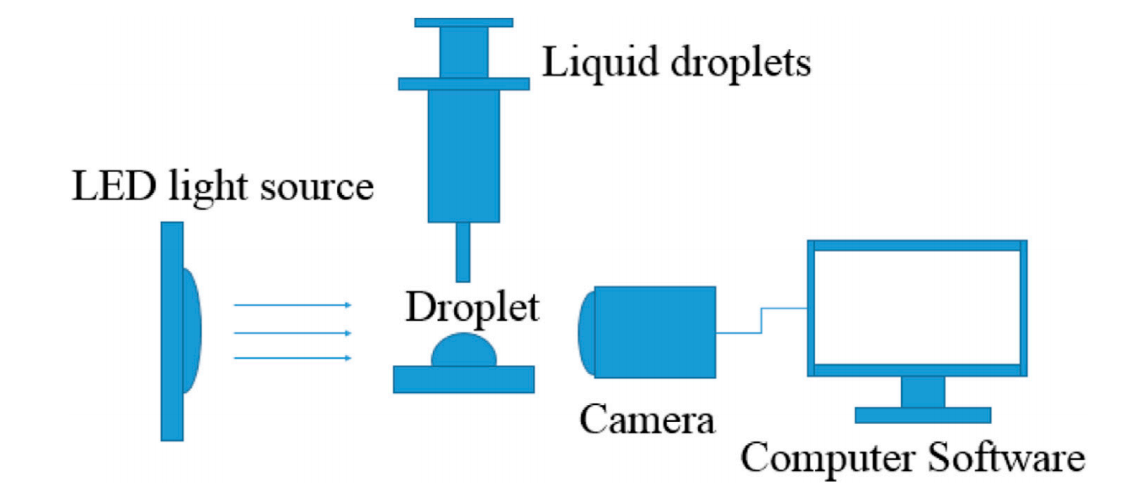

Figure 1. Schematic Illustration of Contact Angle Measurement
2. Surface Tension Measurement

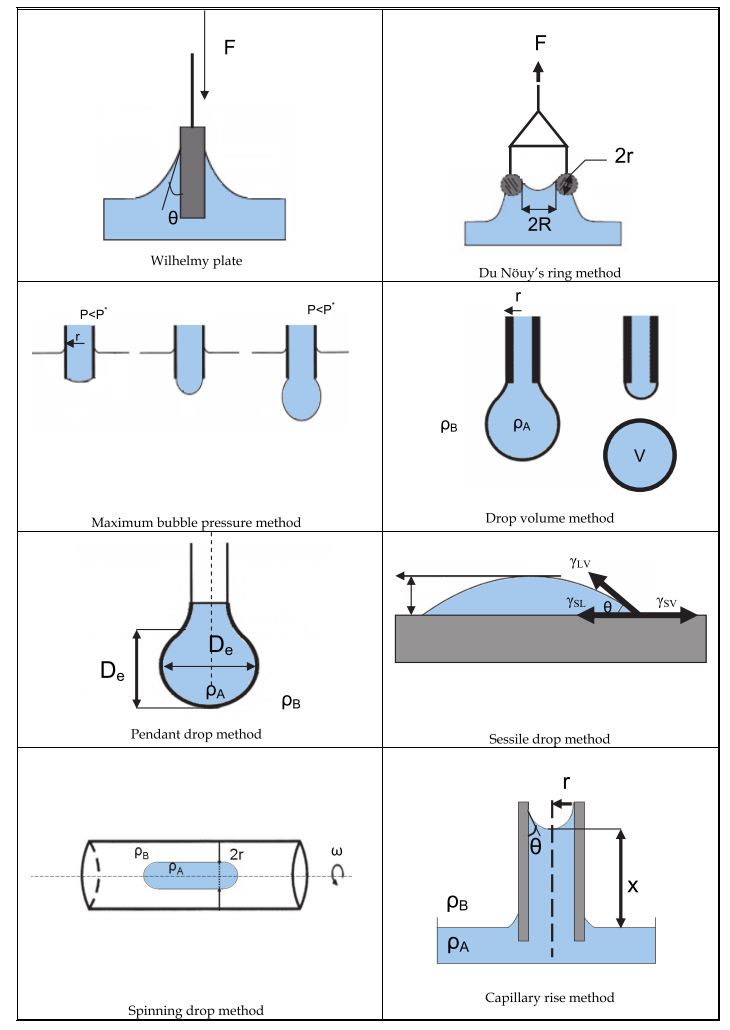

Surface tension is an elastic “film” effect existing at the boundary of a liquid or liquid-liquid interface, reflecting the magnitude of intermolecular forces in the liquid. Common methods to measure surface tension include the ring method, the plate method, and the drop volume method. In practical analysis, precise surface tension data are vital for evaluating formulation stability, emulsification performance, and interfacial phenomena.
Jouyban, A. et al. InTech. 2012.
By employing these measurement methods, one can quantitatively evaluate how a material’s surface interacts with liquids, thus providing scientific evidence for product formulation, process optimization, and quality control.
Analysis Workflow
1. Needs Assessment and Plan Design
Once we receive project requirements, MtoZ Biolabs’ technical team will work closely with clients to clarify analytical objectives and testing environment conditions (e.g., temperature, humidity, medium), then design the optimal measurement plan based on sample characteristics and research priorities.
2. Sample Pretreatment and Preparation
Depending on the nature of the material or solution, certain steps—such as cleaning, drying, or filtration—may be required to ensure accurate and reproducible measurements.
3. Instrument Testing and Data Collection
Contact angle and surface tension measurements are performed on specialized instruments, typically using standardized methods (e.g., droplet method, pendant drop method) to ensure highly reproducible and stable data.
4. Data Analysis and Results Evaluation
The measured contact angle or surface tension data are analyzed for mean values, variance, distribution, and potential error sources. Where necessary, multiple solutions or materials may be compared to provide clients with a more comprehensive research perspective.
5. Report Preparation and Delivery
After analysis is complete, MtoZ Biolabs provides a standardized test report according to client requirements. This report includes experimental conditions, instrument methods, data results, graphical charts, and suggested conclusions for easy application or publication by the client.
Service Advantages
1. Professional Technical Support
MtoZ Biolabs has a technical support team comprising experts in materials, chemistry, and biology, capable of providing customized measurement and analysis solutions for different sample types.
2. High-Precision Instrument Platform
We use advanced contact angle and surface tension measurement instruments, with regular calibrations and maintenance, to ensure consistent, reliable results and deliver trustworthy quantitative data to our clients.
3. Flexible Project Management
Whether the work involves fundamental scientific research or large-scale industrial testing, MtoZ Biolabs can adapt to the project scope and objectives to ensure on-time, high-quality completion.
4. Data Interpretation and Value-Added Services
Beyond merely providing raw test results, we also integrate practical applications and industry insights to further interpret the data, helping clients optimize product formulations and refine processes.
5. Comprehensive After-Sales and Quality System
Through a rigorous quality control process and prompt customer feedback mechanisms, we guarantee ample technical support and thorough follow-up for every project.
Applications
1. Coating and Thin Film Research
By measuring contact angle and surface tension, one can gain insight into how a coating or film adheres to the substrate surface, aiding in the evaluation of durability and uniformity.
2. Interface Chemistry and Emulsification Formulation
In cosmetics or food formulations, emulsion stability and interfacial characteristics are closely correlated. Accurate surface tension measurements are critical for optimizing formulation ratios.
3. Assessment of Material Surface Modifications
After treatments such as plasma processing, chemical modification, or nanostructuring, a material’s hydrophilic/hydrophobic properties can change significantly. Contact angle measurements clearly verify these modifications’ effectiveness.
4. Design of Biomedical Devices
For biomedical materials like artificial blood vessels or tissue engineering scaffolds, surface properties directly influence cell adhesion and blood compatibility. Accurate surface tension and contact angle data support the development of safe, stable devices and implants.
Case Study

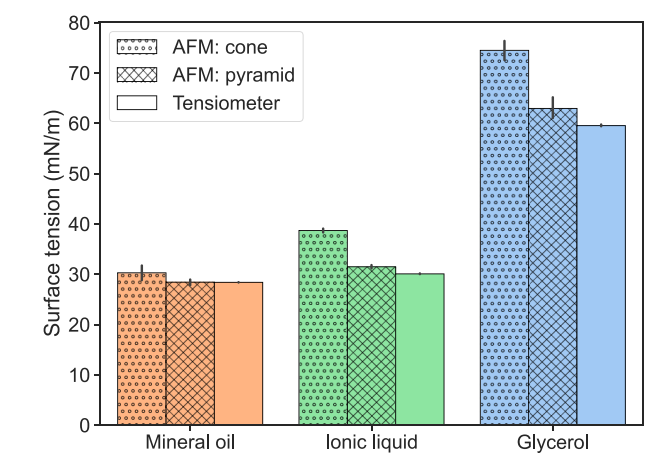

1. Method to Measure Surface Tension of Microdroplets Using Standard AFM Cantilever Tips
Sudersan, P. et al. Langmuir. 2023.
FAQ
Q1. Is it possible to measure samples containing volatile solvents or toxic substances?
A: Yes. Please inform us in advance of the specific components and potential safety risks so we can implement the necessary safety measures and evaluate the feasibility of relevant testing methods.
Q2. How much sample volume is required for testing?
A: For contact angle measurements, a sufficiently large solid surface area is recommended; for surface tension measurements, a certain volume of liquid (usually a few dozen milliliters) is generally sufficient. Please confirm the specific requirements with our technical team.
Q3. Will the measurement process damage the sample?
A: Contact angle measurements typically cause minimal damage to most solid materials. Surface tension tests generally consume only a small volume of liquid, so sample usage is relatively low overall.
Q4. Will the report include data interpretation or application recommendations?
A: We provide basic data interpretation and application suggestions in the report. If deeper analysis is required, please consult us further regarding your needs.
Sample Submission Suggestions
1. Sample Type
Before submission, clearly indicate the physical and chemical nature of the sample—whether it is a solid or liquid, its primary components, and any relevant sensitivities (e.g., toxicity or volatility). This ensures we can prepare appropriately for testing.
2. Packaging and Transportation
For solid materials, we recommend dry, clean, and shock-resistant packaging; for liquid samples, ensure secure sealing and leak-proof measures to maintain the sample’s original state and prevent external contamination or loss.
3. Labeling and Checklist
To enhance testing efficiency, please accurately label the exterior of the sample packaging and complete the submission checklist with the sample number, batch number, and client information. If your sample requires special measurement conditions, note these in the checklist.
4. Quantity and Dimensions
Solid materials generally need sufficient area for multiple measurements. Liquid samples must meet minimum test volume requirements. For specific needs, please consult MtoZ Biolabs for guidance.
5. Delivery Timeline
We will plan a suitable testing schedule based on project urgency and complexity. If expedited services are needed, please notify us in advance so we can make the necessary arrangements.
By reading this introduction, we trust you now have a clear understanding of MtoZ Biolabs’ contact angle/surface tension measurement service. We aim to leverage our professional technical support and highly reliable Contact Angle/Surface Tension Measurement Analytical Service to help clients from various industries thoroughly evaluate surface properties, thereby providing a scientific basis for innovation in research and quality control. If you have further questions or requirements for your testing project, feel free to contact us at any time. MtoZ Biolabs stands ready to offer you comprehensive and attentive technical consultation and support.
